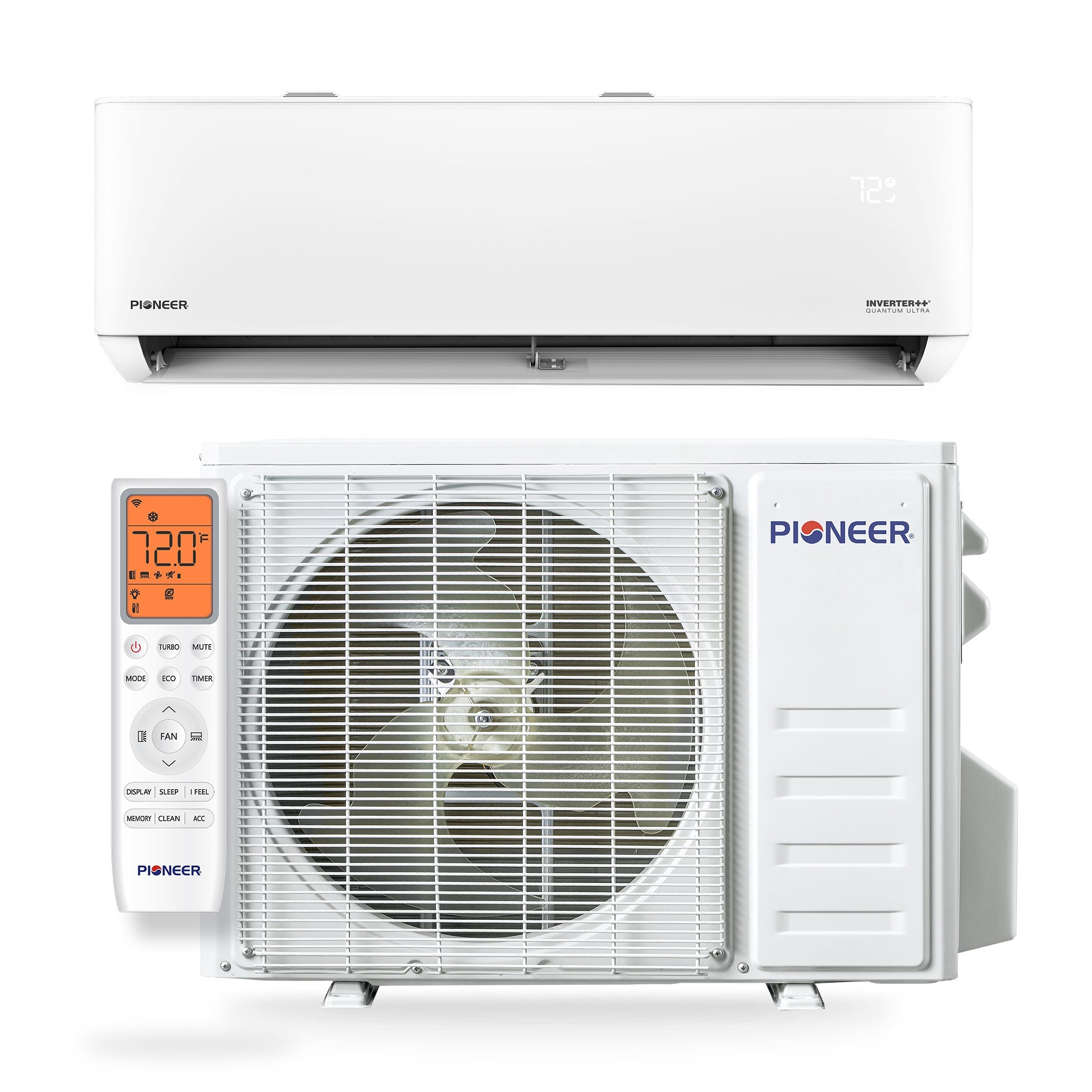

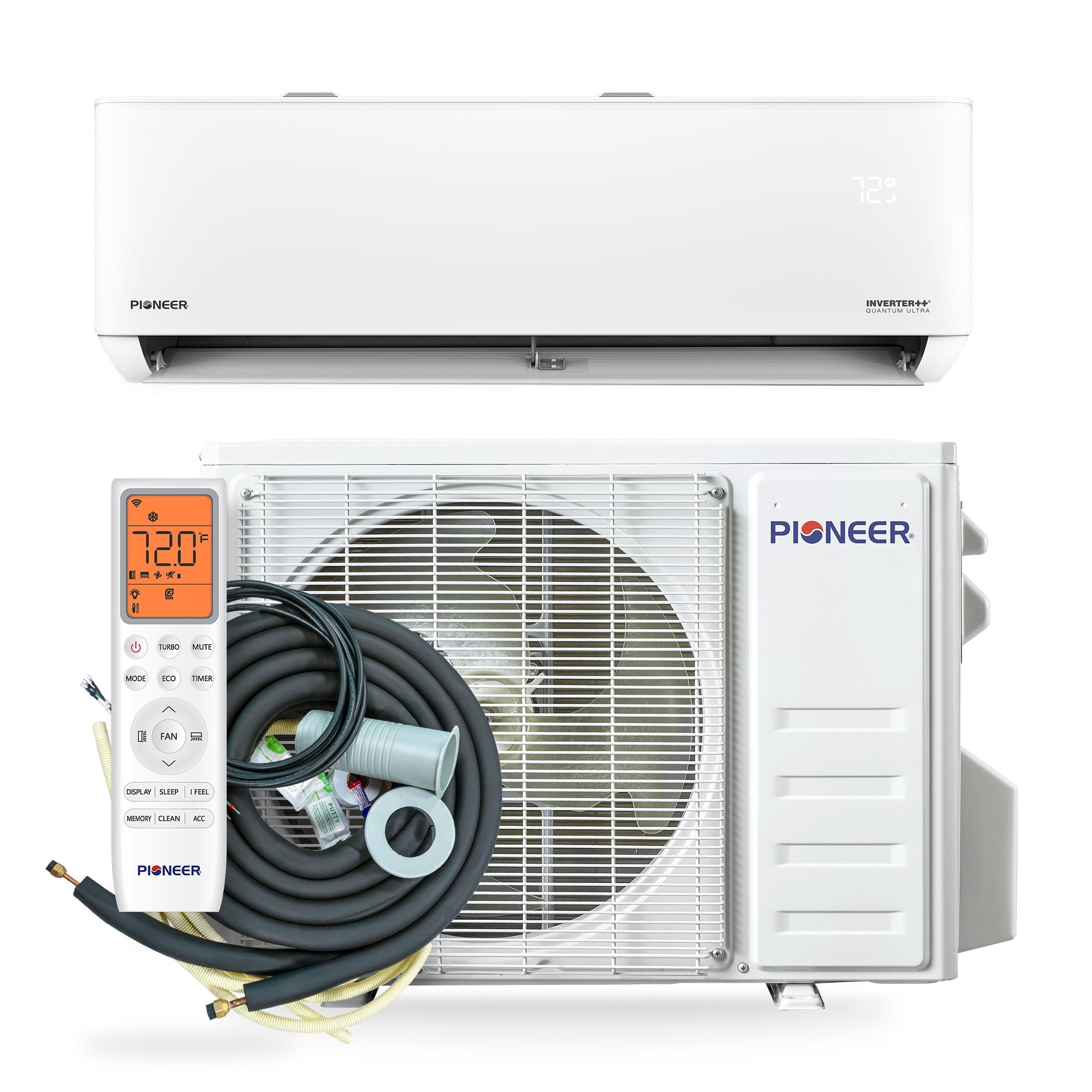

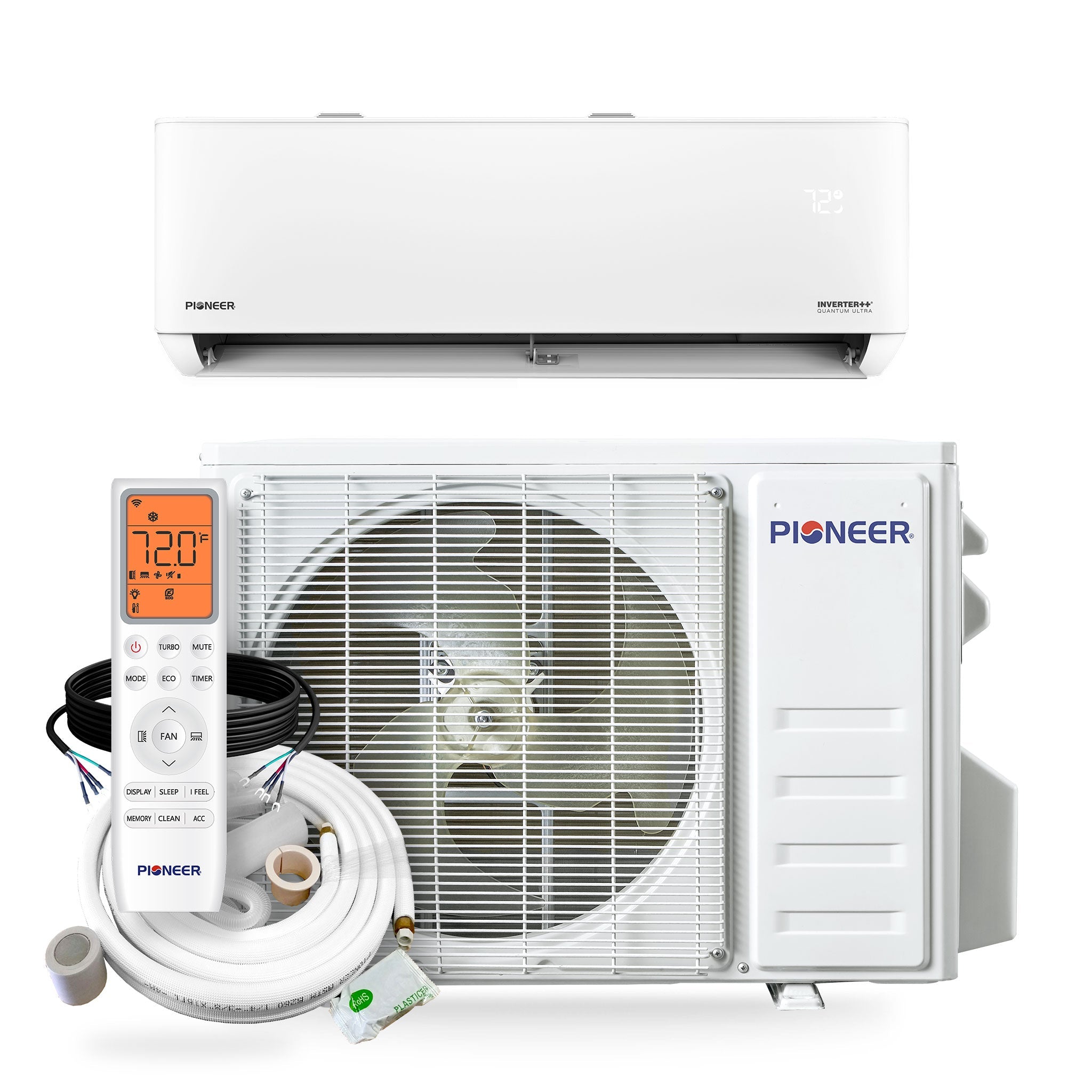

Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set

The Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set is an ultra high-efficiency, wall-mounted solution with variable-speed DC inverter technology, Wi-Fi app control, and eco-friendly R454b refrigerant. Engineered for quiet, precise comfort, it performs in ultra-low ambient conditions and is ideal for bedrooms, offices, and compact living areas.

Specifications

• Cooling Capacity: 9,000 BTU/H (24 SEER2 / 13 EER2)

• Heating Capacity: 10,000 BTU/H (10.0 HSPF2 / 3.81 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Mount Type: High Wall-Mounted Ductless System

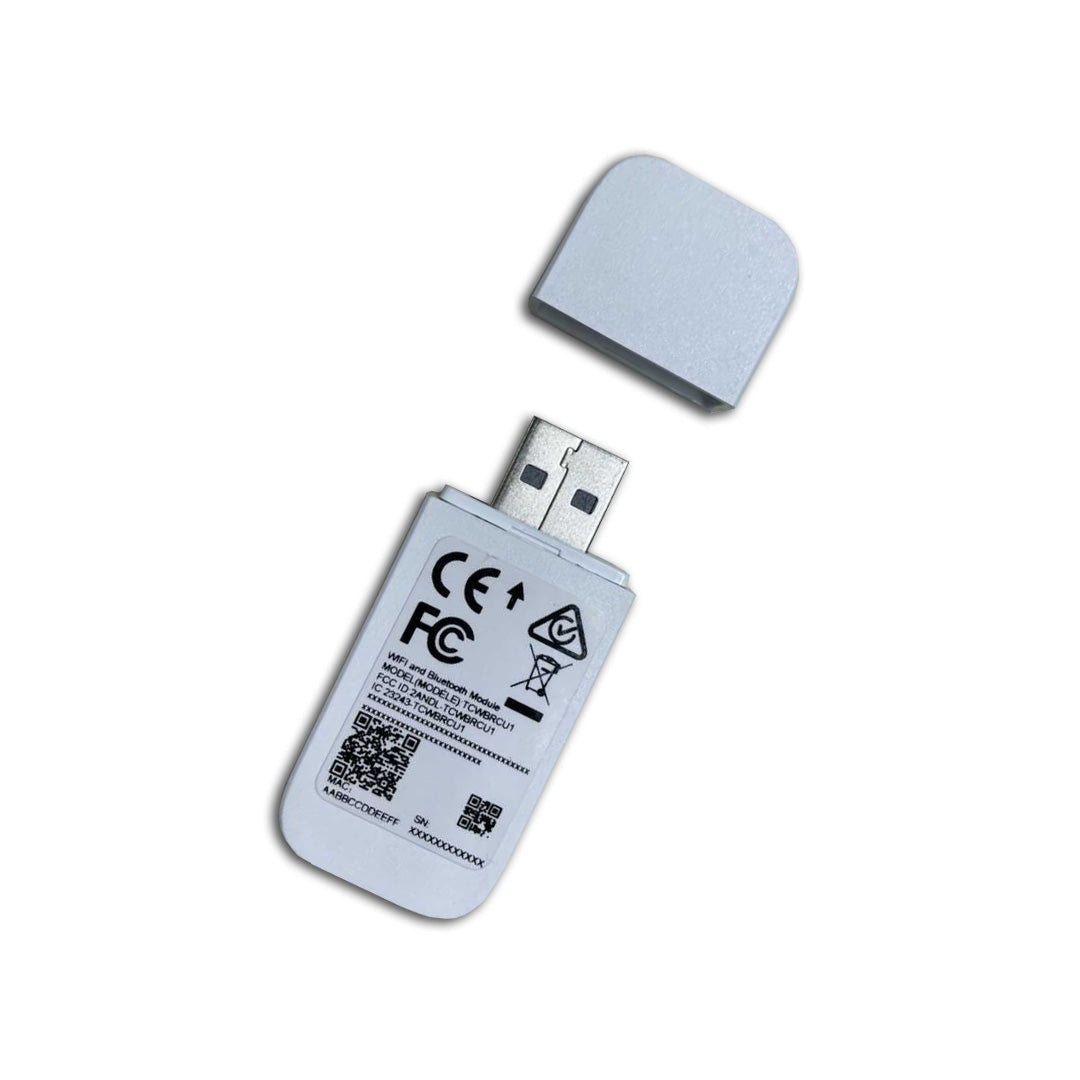

• Wi-Fi Control: Pioneer Airlink App

• Inverter: Variable-Speed DC Inverter

• Refrigerant: R454b (factory-precharged)

• Operating Range: Heat to −13°F / Cool to 131°F

• Recommended Room Size: 150–350 sq ft

• Minimum Room Size: 28 sq ft

• Minimum Installation Height: 6 ft

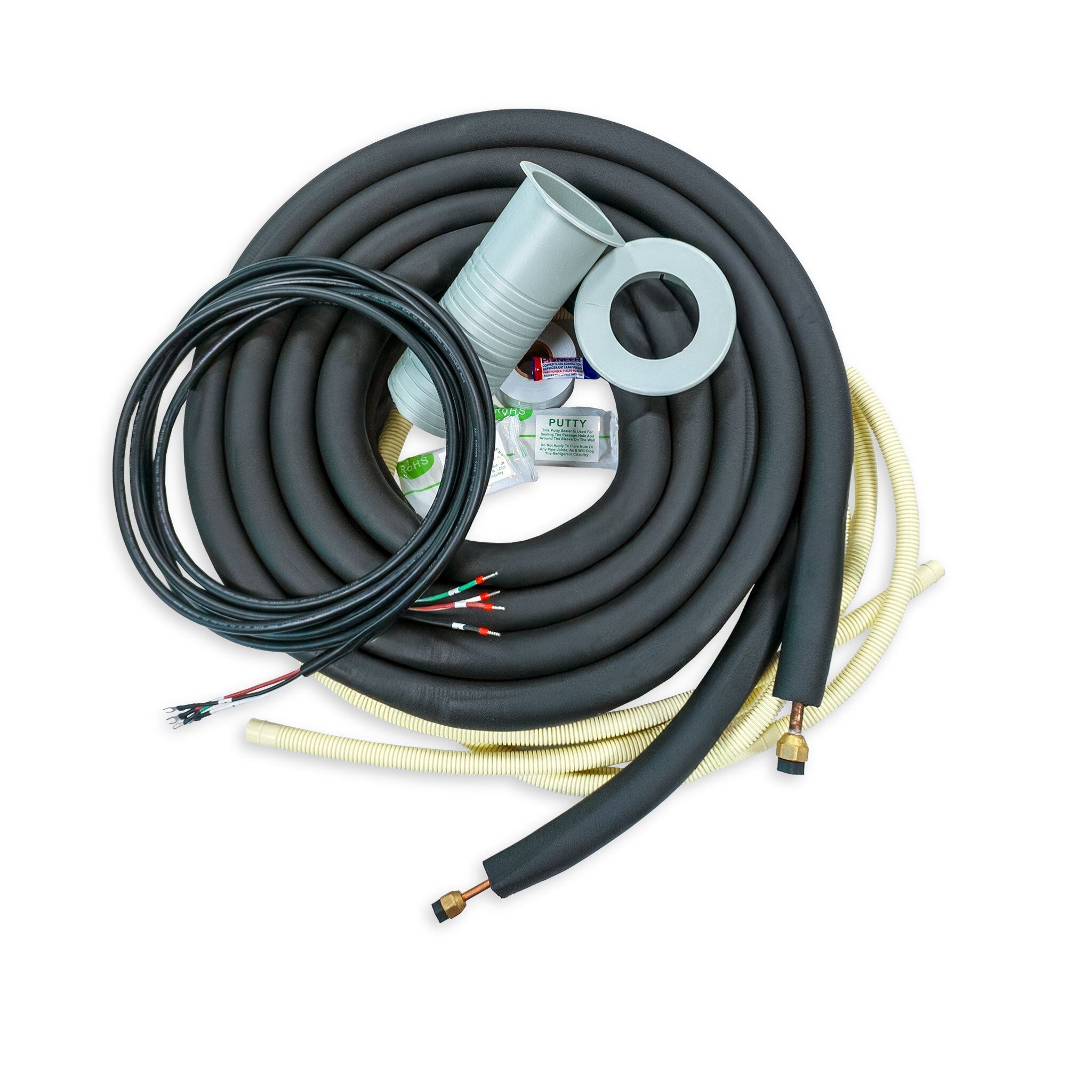

• Piping Diameter: 1/4" × 3/8"

• AHRI Reference: 217048749

Features

• All-Season Modes: Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: Flexible installation options

• Air Filters: Washable, reusable

• Dual-Axis Airflow: Motorized up-down and left-right louvers

• Remote Functions: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, IFEEL

Maintenance

• Daily: Wipe down the grill and sink after use

• Weekly: Clean the refrigerator and ice maker

• Annually: Inspect all connections and perform detailed cleaning

Warranty

• Frame & Grill: 7 years

• Wine Cooler & Refrigerator: 3 years

Technical Information & Performance

• AHRI Certificate

• Energy Guide

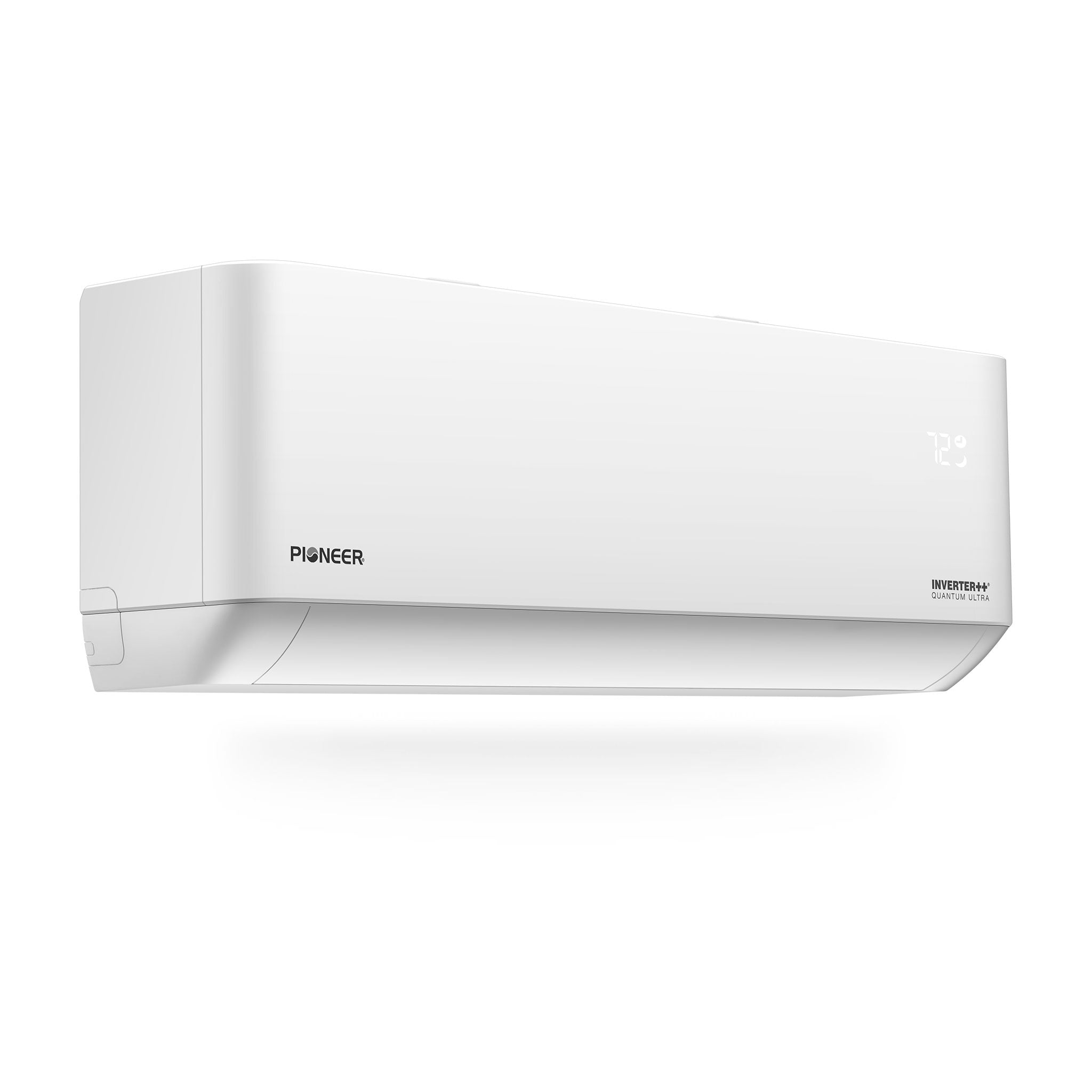

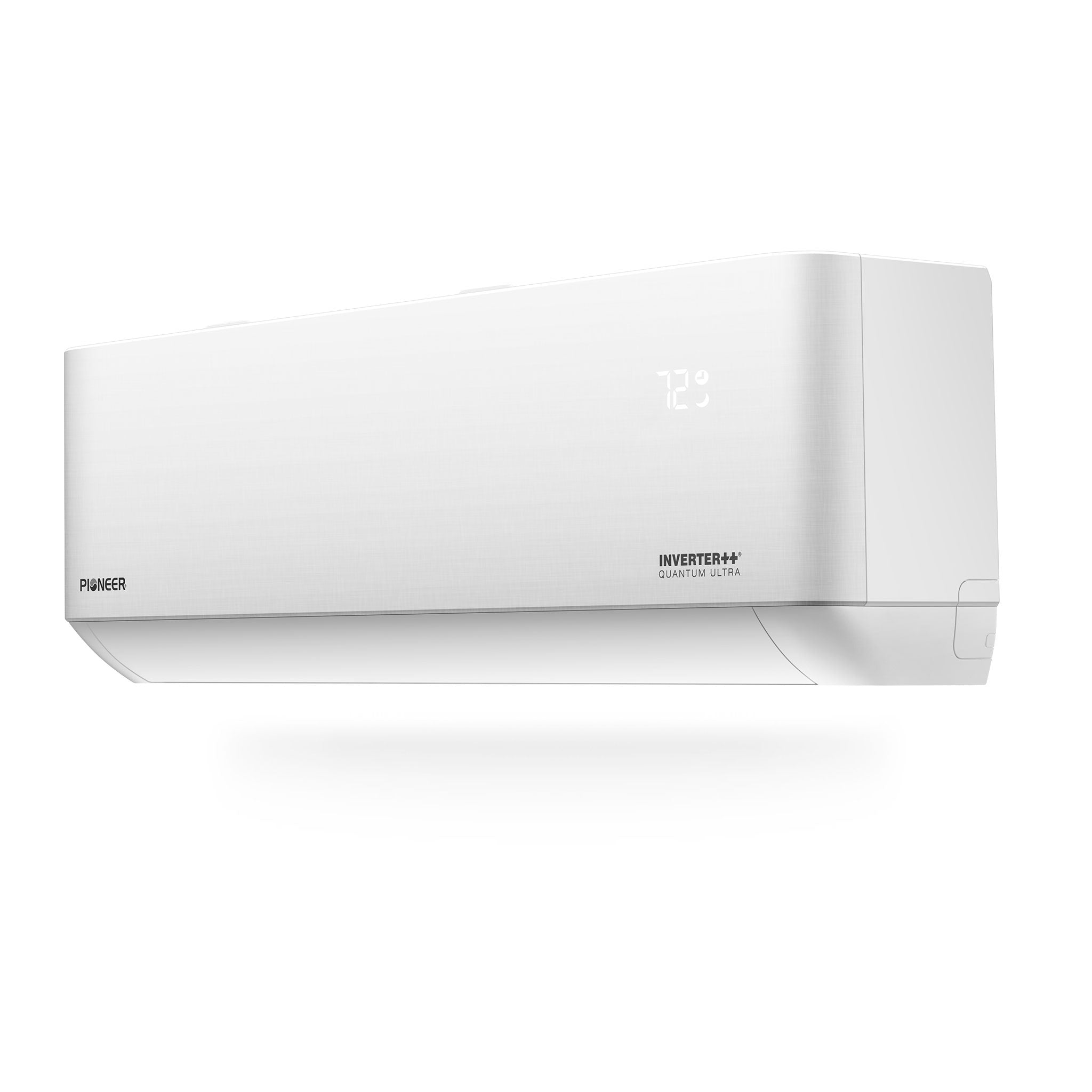

• Indoor Unit

  • Part Number: WT009GLSI24HLG

  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM

  • Sound Level (Turbo–Mute): 43 / 40 / 33 / 31 / 30 dB(A)

  • Product Dimensions (W×D×H): 32¼" × 7⅝" × 12"

  • Carton Dimensions (W×D×H): 35" × 10½" × 15"

  • Net / Gross Weight: 20.7 / 25.1 lbs.

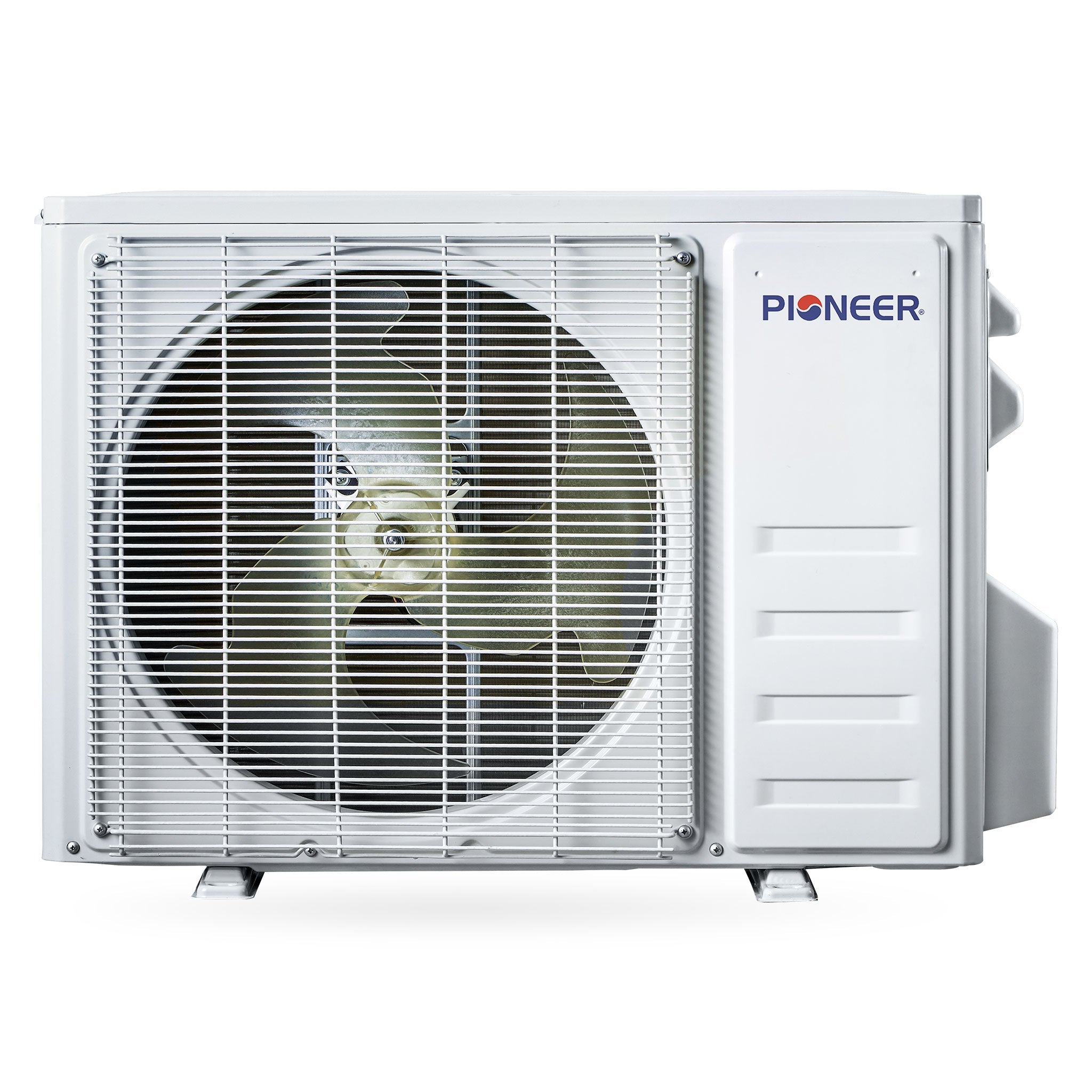

• Outdoor Unit

  • Part Number: YN009GLSI24RPG

  • Breaker Needed: 15A (double-pole)

  • Sound Level: 50 dB(A)

  • Net Dimensions (W×D×H): 31⅞" × 12" × 21⅝"

  • Carton Dimensions (W×D×H): 32⅞" × 13" × 22⅝"

  • Net / Gross Weight: 52.7 / 59.3 lbs.

Dimension Chart

• Indoor (W×D×H): 32¼" × 7⅝" × 12"

• Outdoor (W×D×H): 31⅞" × 12" × 21⅝"
