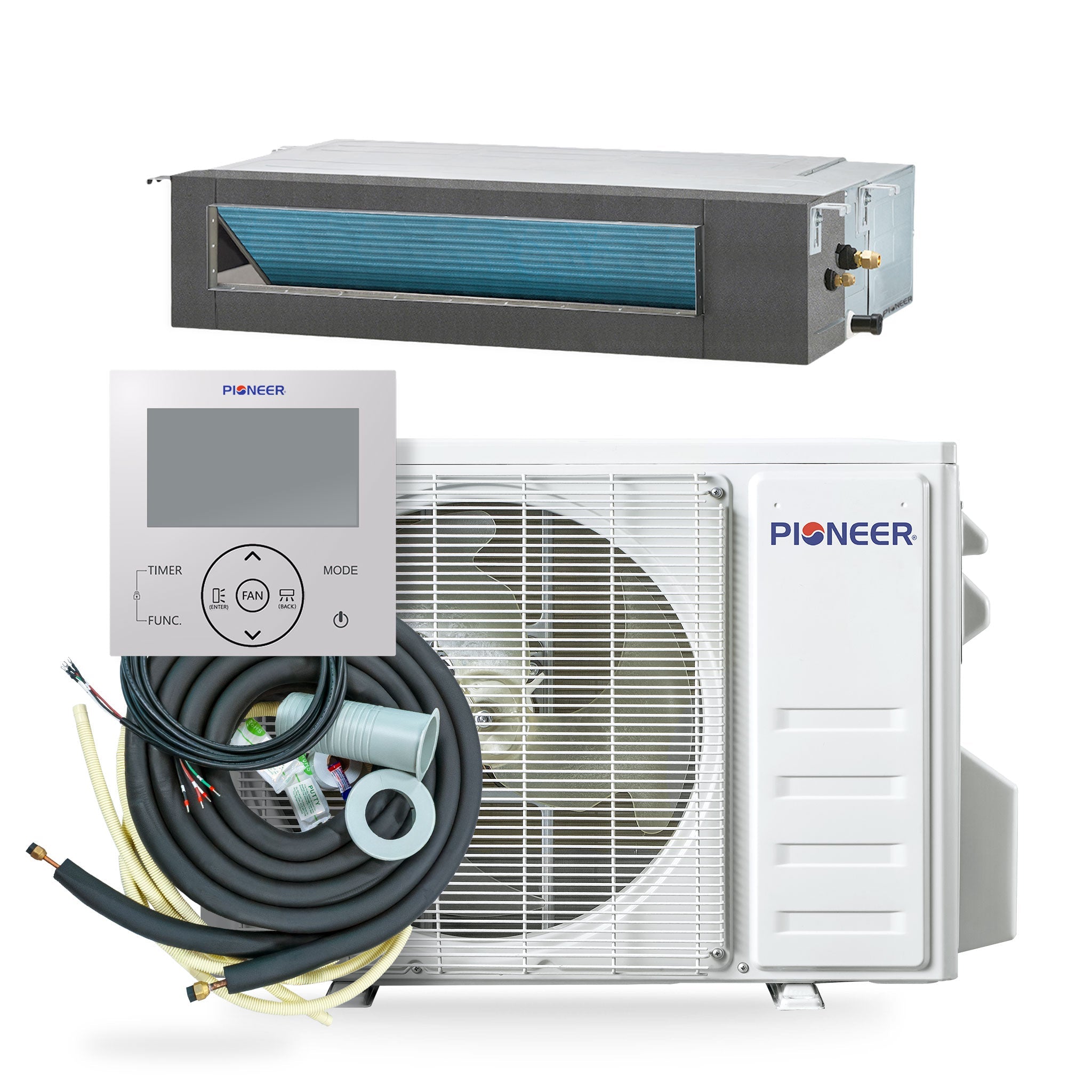

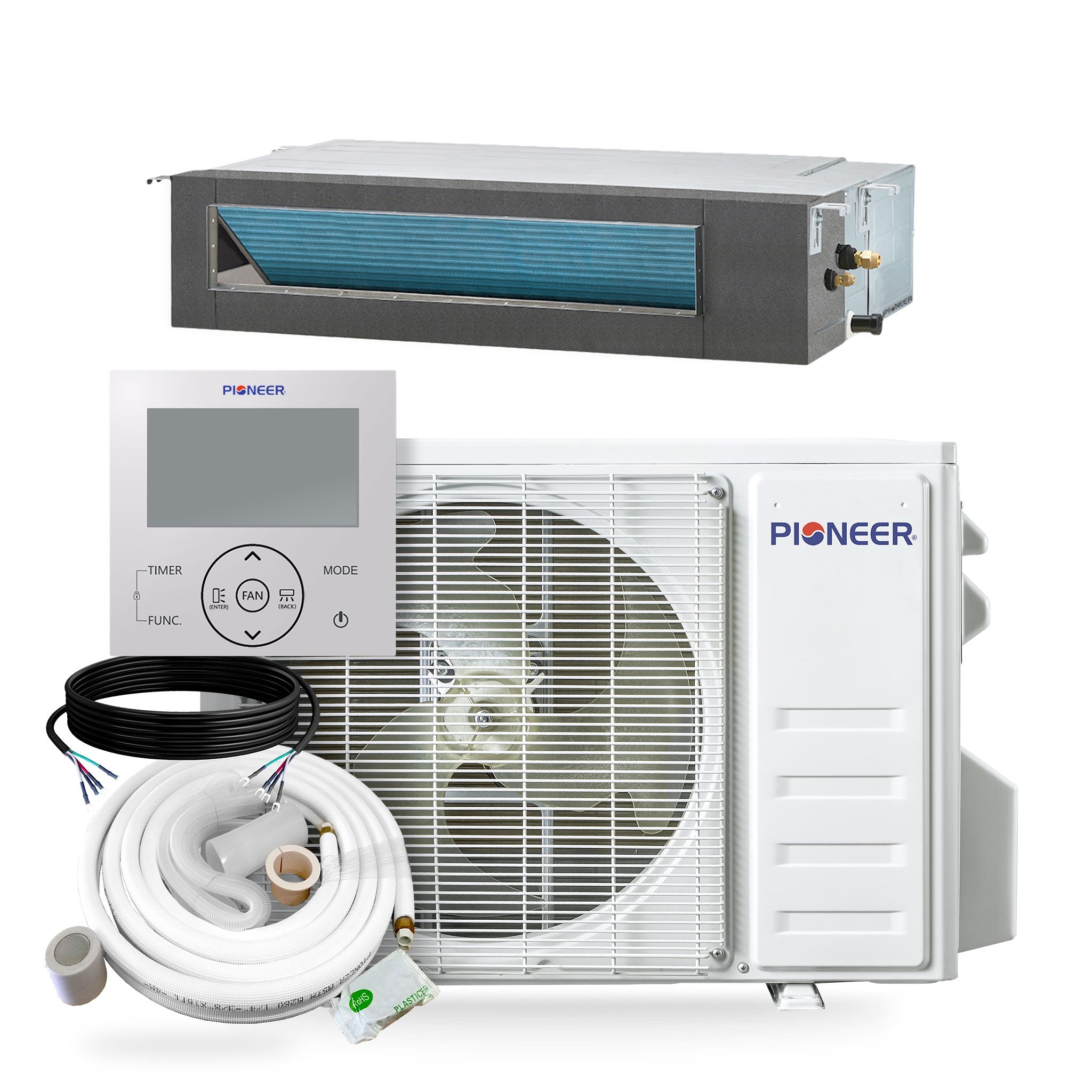

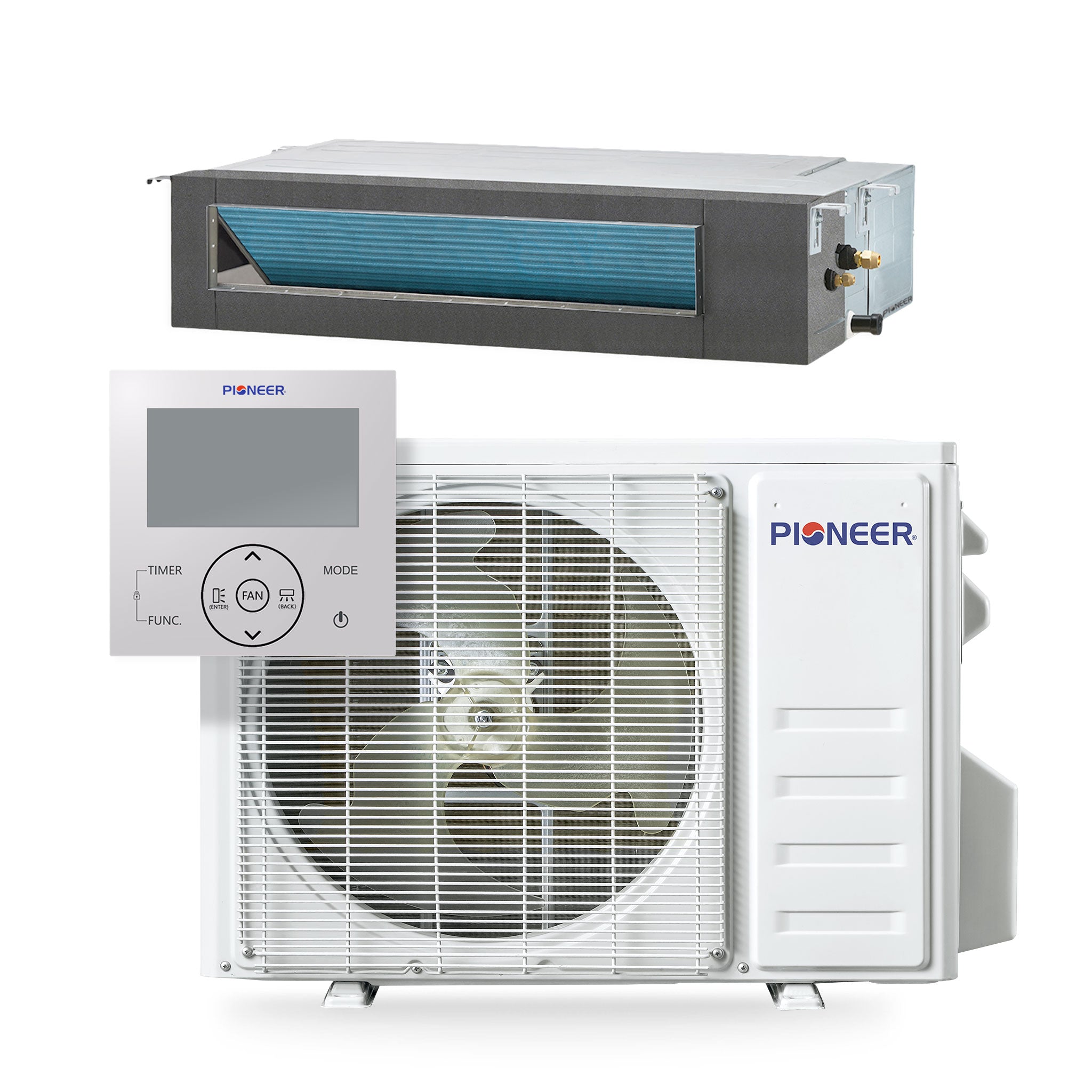

Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

The Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set is engineered for efficient, whisper-quiet performance and seamless integration into your space. Delivering 9,500 BTU/H cooling at 20.5 SEER2 / 12.5 EER2 and 9,500 BTU/H heating at 9.5 HSPF2 / 3.5 COP2, this system is ideal for compact residential or commercial environments requiring concealed comfort. Designed to operate on 208/230V, 60Hz, 1Ph, the system uses environmentally friendly R454b refrigerant and a DC inverter compressor for reliable, variable-speed performance in any season — maintaining full functionality down to -13°F in heating and up to 131°F in cooling.

Specifications

• Power Supply: 208~230V, 60Hz, 1Ph

• Cooling Rated Capacity: 9,500 BTU/h (Range: 2,000~10,400 BTU/h)

• Cooling Efficiency: 20.5 SEER2 / 12.5 EER2

• Heating Rated Capacity: 9,500 BTU/h (Range: 2,500~12,300 BTU/h)

• Heating Efficiency: 9.5 / 8.5 HSPF2 (Region IV) • COP2 3.5 / 1.9 (47°F / 5°F)

• Refrigerant Type: R454b

• Suitable Area: 250~350 Sq.Ft

• AHRI Reference: 217048762

• Indoor Unit (RT009GLSILCFHG): Airflow 335/305/276/182/182 CFM • Sound 43/41/39 dB(A)

• Indoor Dimensions (W×D×H): 27½" × 19¼" × 7⅞" • Net/Gross Weight: 33.1 / 40.8 lbs

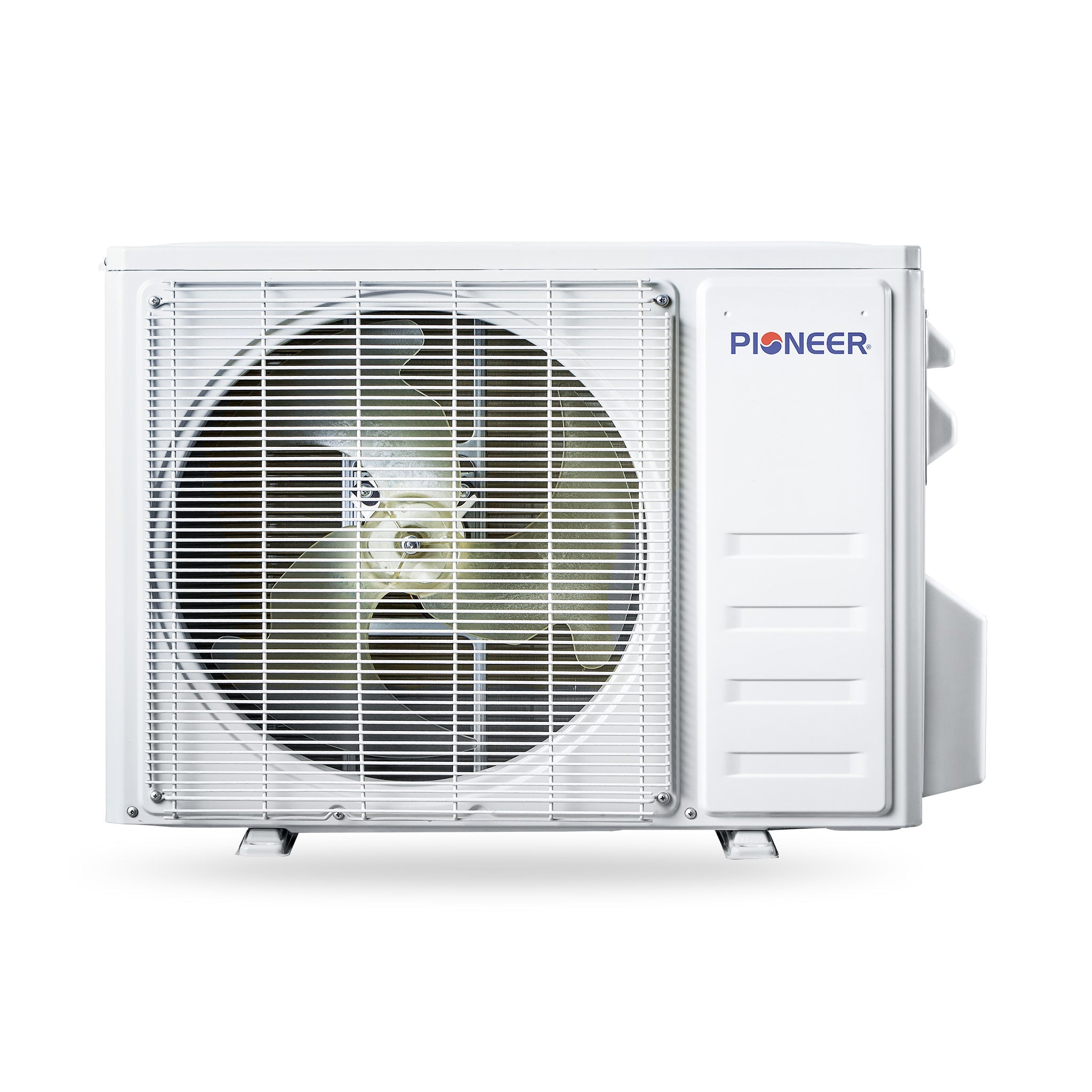

• Outdoor Unit (YN009GLSI24RPG): Sound Level 50 dB(A) • Breaker: 15A (double-pole)

• Outdoor Dimensions (W×D×H): 31⅞" × 12" × 21⅝" • Net/Gross Weight: 52.7 / 57.1 lbs

Features

• Multi-Mode Operation: Cooling, Heating, Dry, and Ventilation modes for full-season performance

• Dual-Drainage Ports: Flexible condensate management for any installation orientation

• Washable, Reusable Filters: Easy-to-clean filters ensure consistent air quality and airflow

• Motorized Louvers: Dual-axis (up-down, left-right) for even air distribution

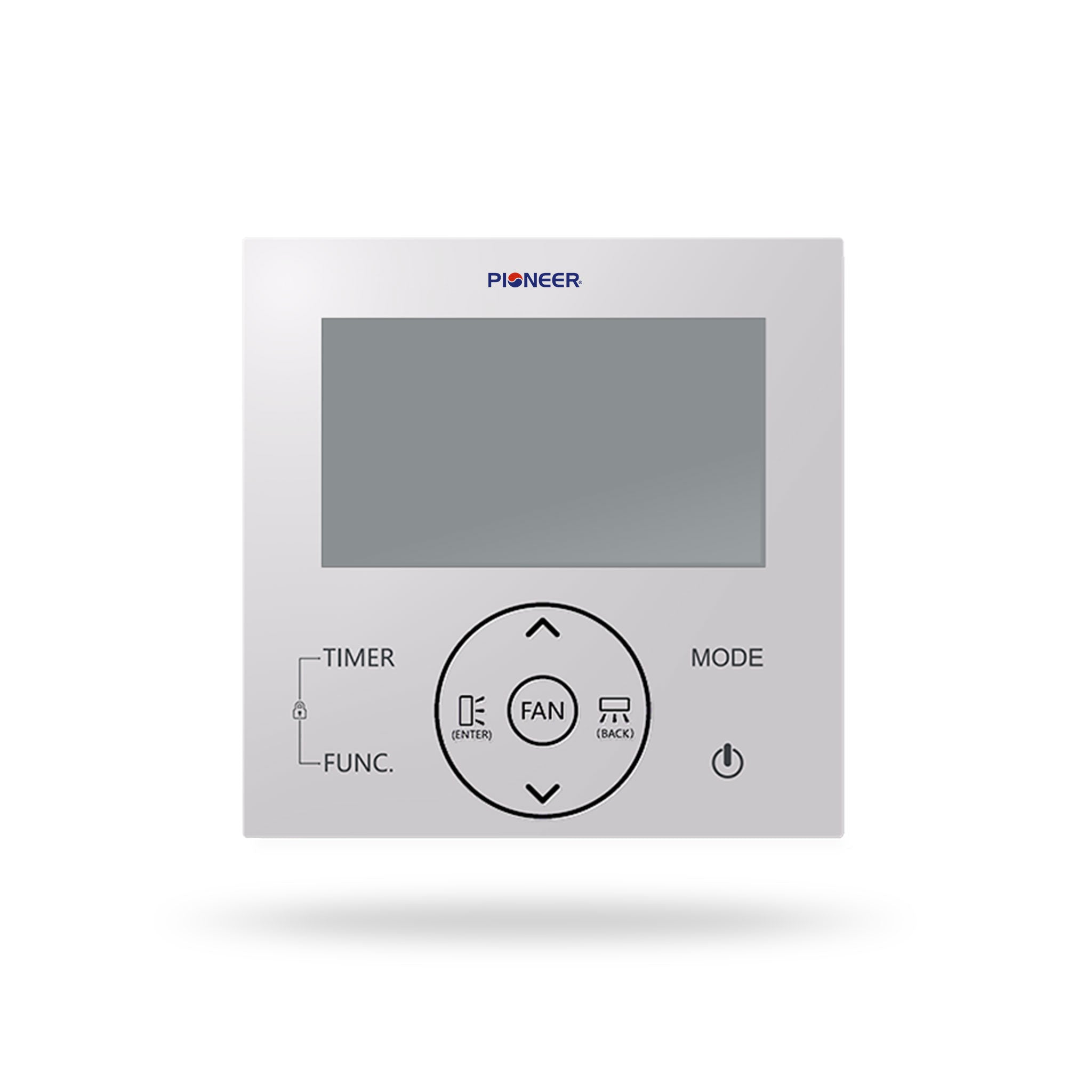

• Smart Remote Functions: ECO, SLEEP, TIMER, TURBO, MEMORY, IFEEL, and Self-Clean modes

Installation Options

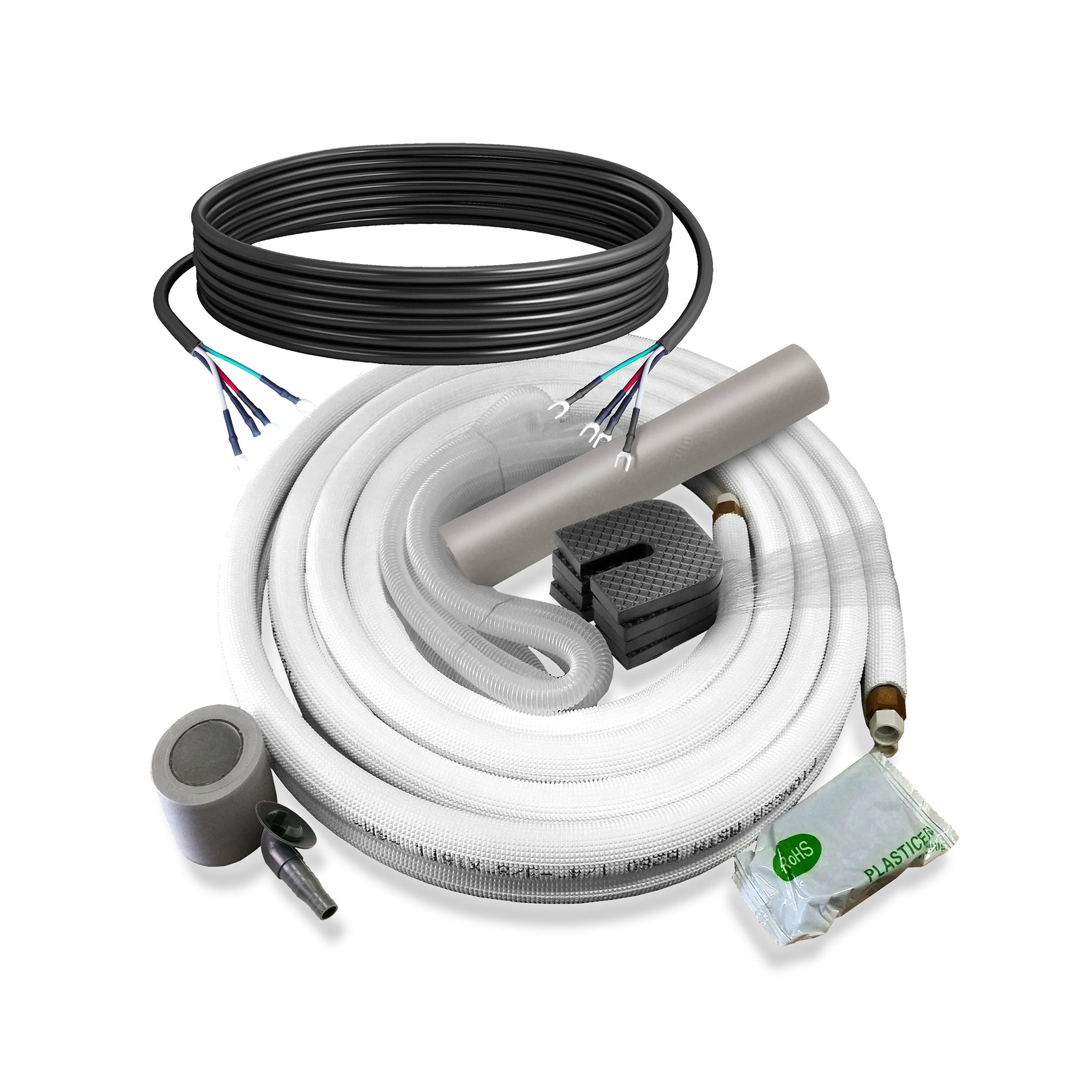

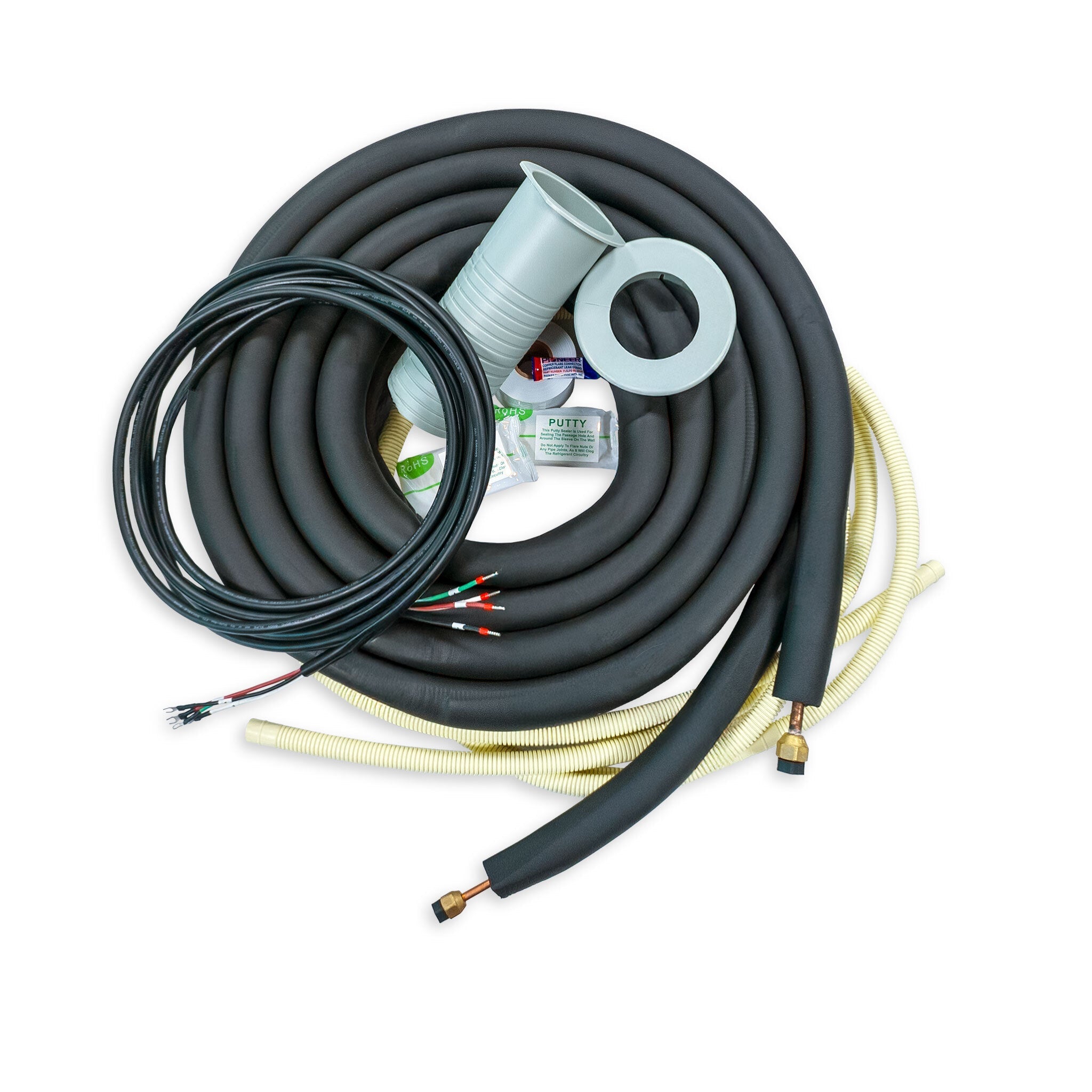

• Include System Installation Kit: Add Standard Copper Lineset, Add EZFlex™ Flexible Pipe, or No Installation Kit Needed

• Installation Kit Length: 10 Ft, 16 Ft, 25 Ft, 33 Ft, 50 Ft, or None

Maintenance

• Monthly: Clean air filters and inspect condensate drains

• Seasonally: Check refrigerant lines, remote batteries, and drain performance

• Annually: Schedule professional system inspection and deep coil cleaning

Warranty

• Compressor & Parts: Manufacturer standard limited warranty applies

• Documentation: AHRI Certificate & Energy Guide

Dimension Chart
