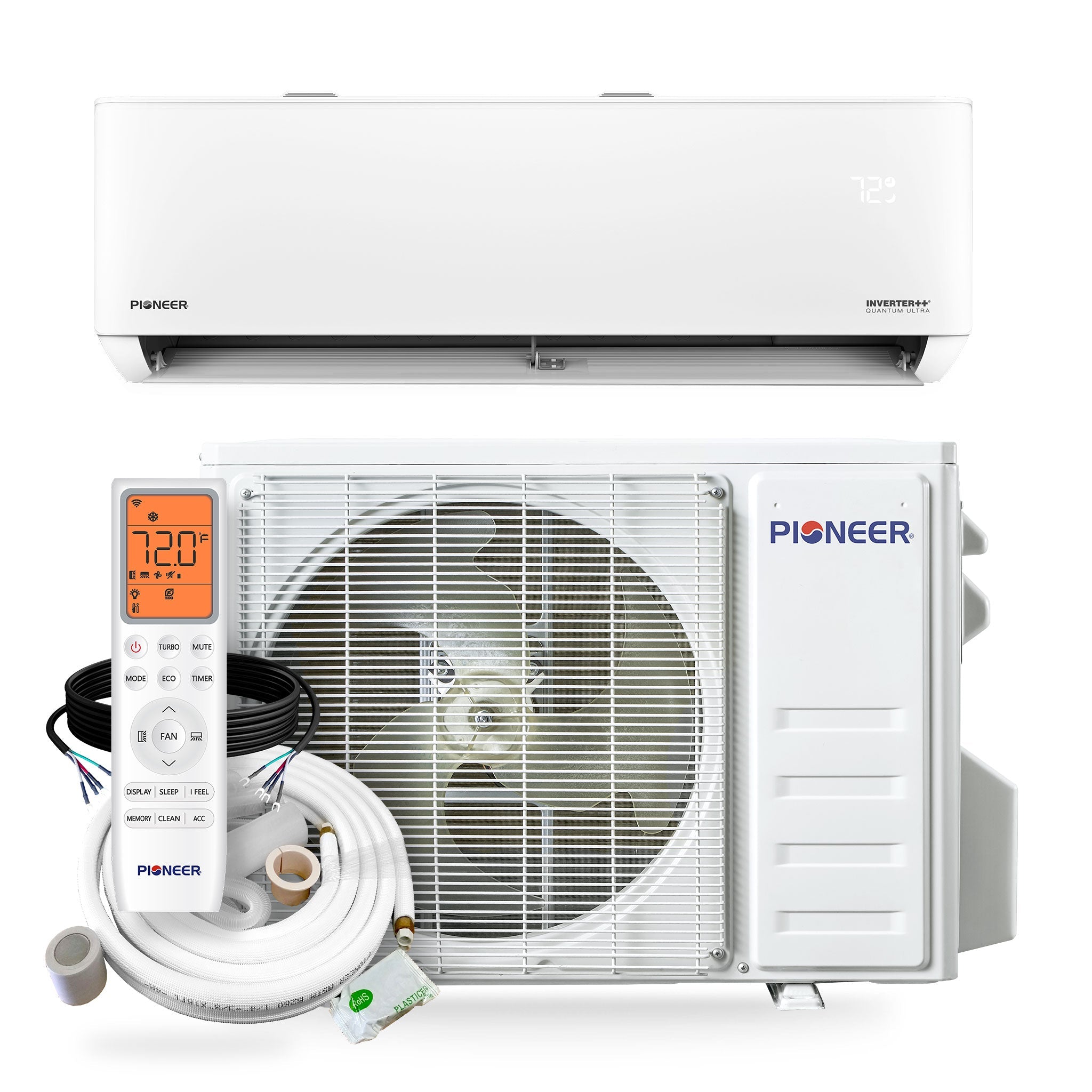

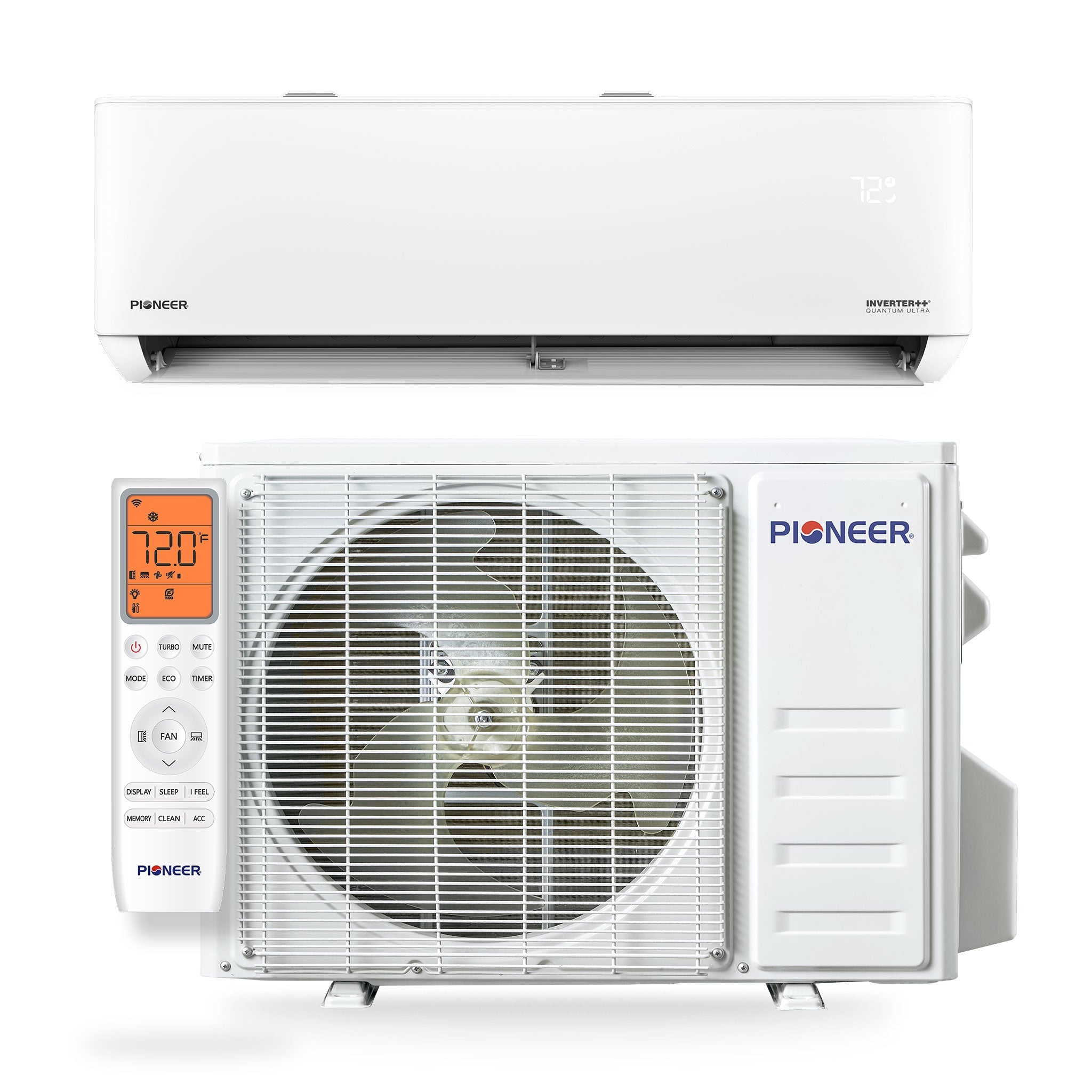

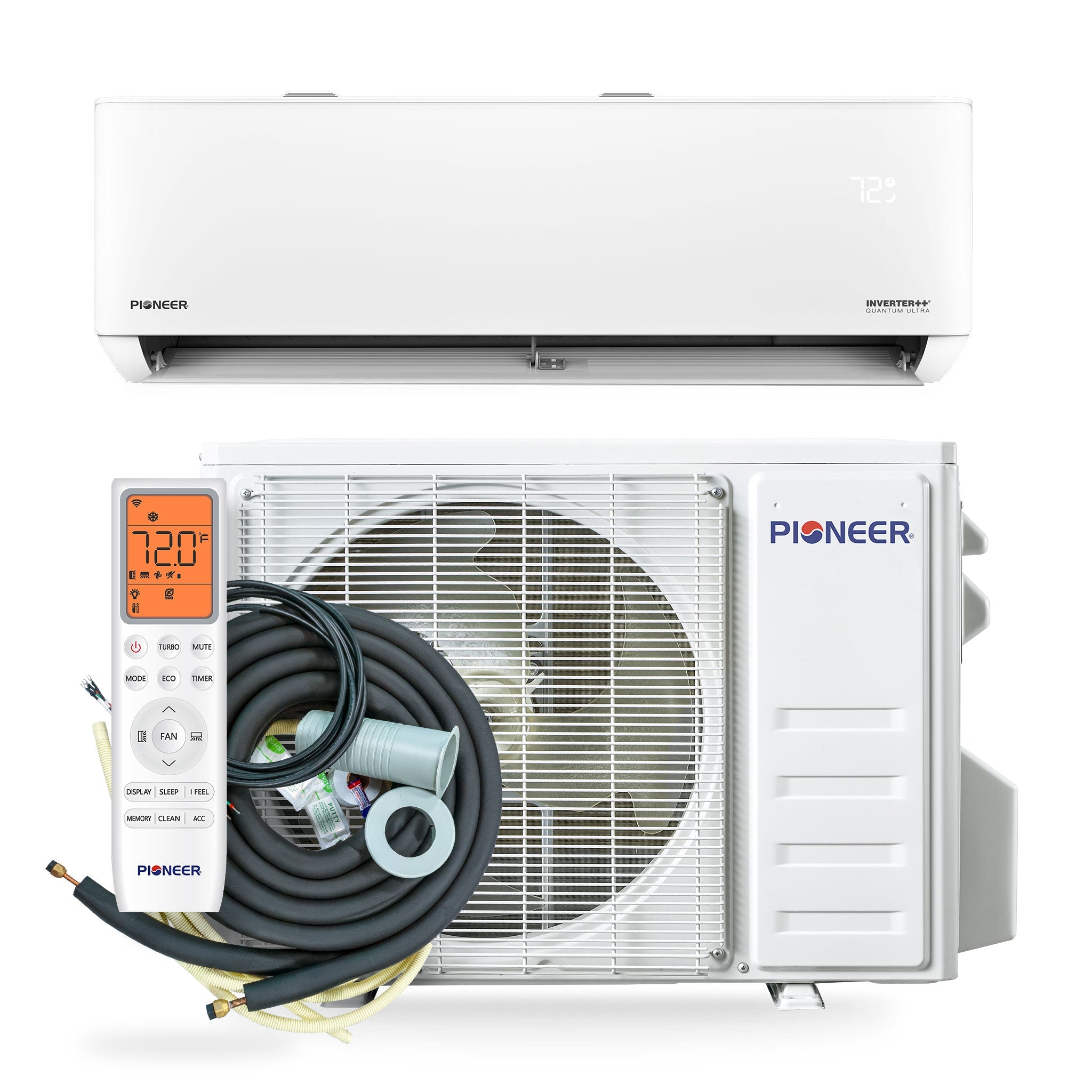

Pioneer® Quantum Ultra™ 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set

The Pioneer® Quantum Ultra™ 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set delivers ultra-high efficiency comfort with Wi-Fi control and advanced DC inverter technology. Factory-charged with eco-friendly R454b, it’s engineered for dependable performance across harsh climates while keeping energy use low.

Specifications

• Cooling Capacity: 23,000 BTU/H with 23 SEER2 / 12 EER2

• Heating Capacity: 25,000 BTU/H with 9.5 HSPF2 / 3.41 COP2

• Voltage: 208/230V, 60Hz, 1Ph

• Mounting: High wall-mounted ductless system

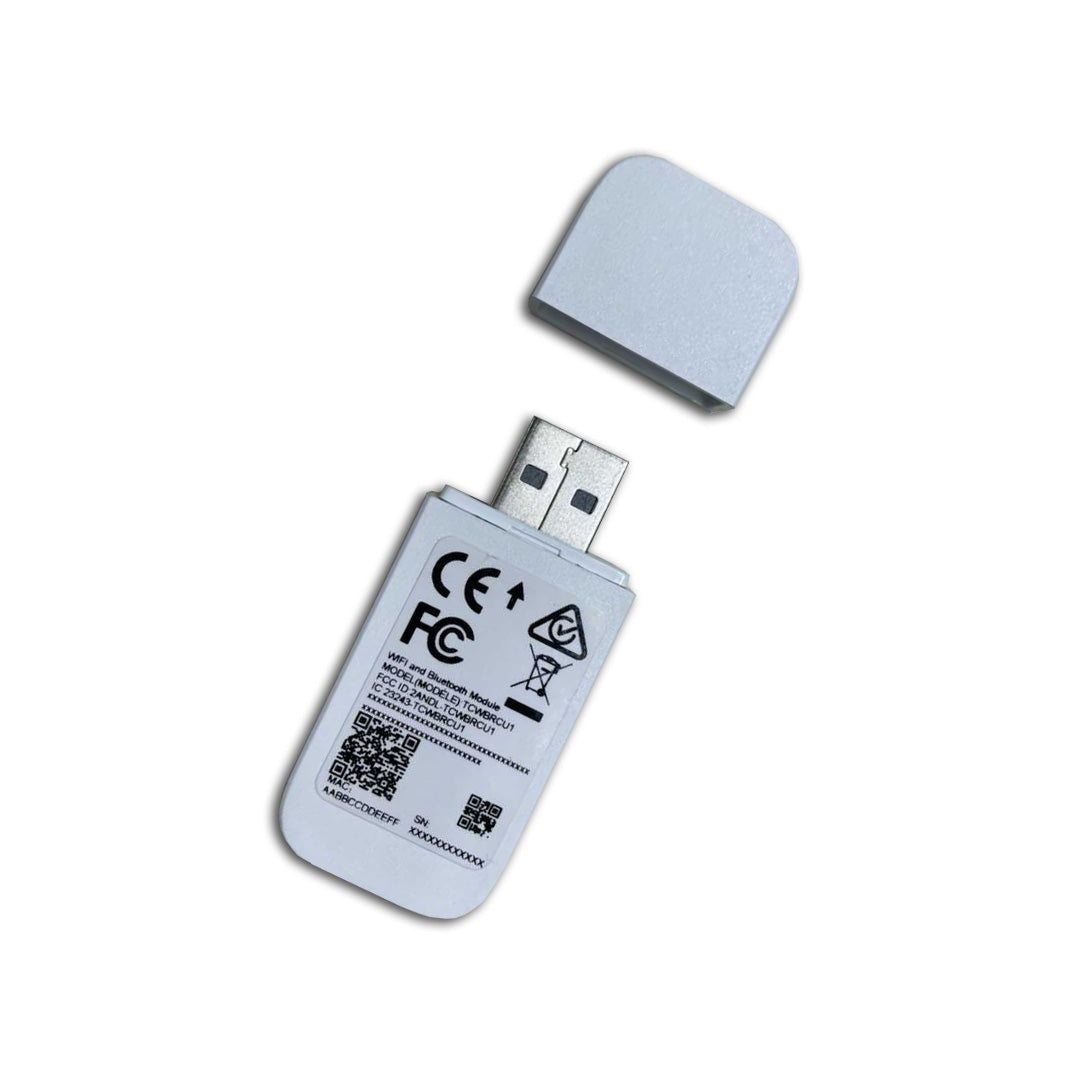

• Connectivity: Wi-Fi enabled; Pioneer Airlink app control

• Technology: Variable-speed DC inverter

• Refrigerant: R454b (factory-precharged)

• Operating Range: as low as −13°F heating / as high as 131°F cooling

Features

• Comfort Modes: Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: Flexible condensate routing

• Washable, Reusable Filters: Easy maintenance

• Dual-Axis Airflow: Motorized up-down and left-right louvers

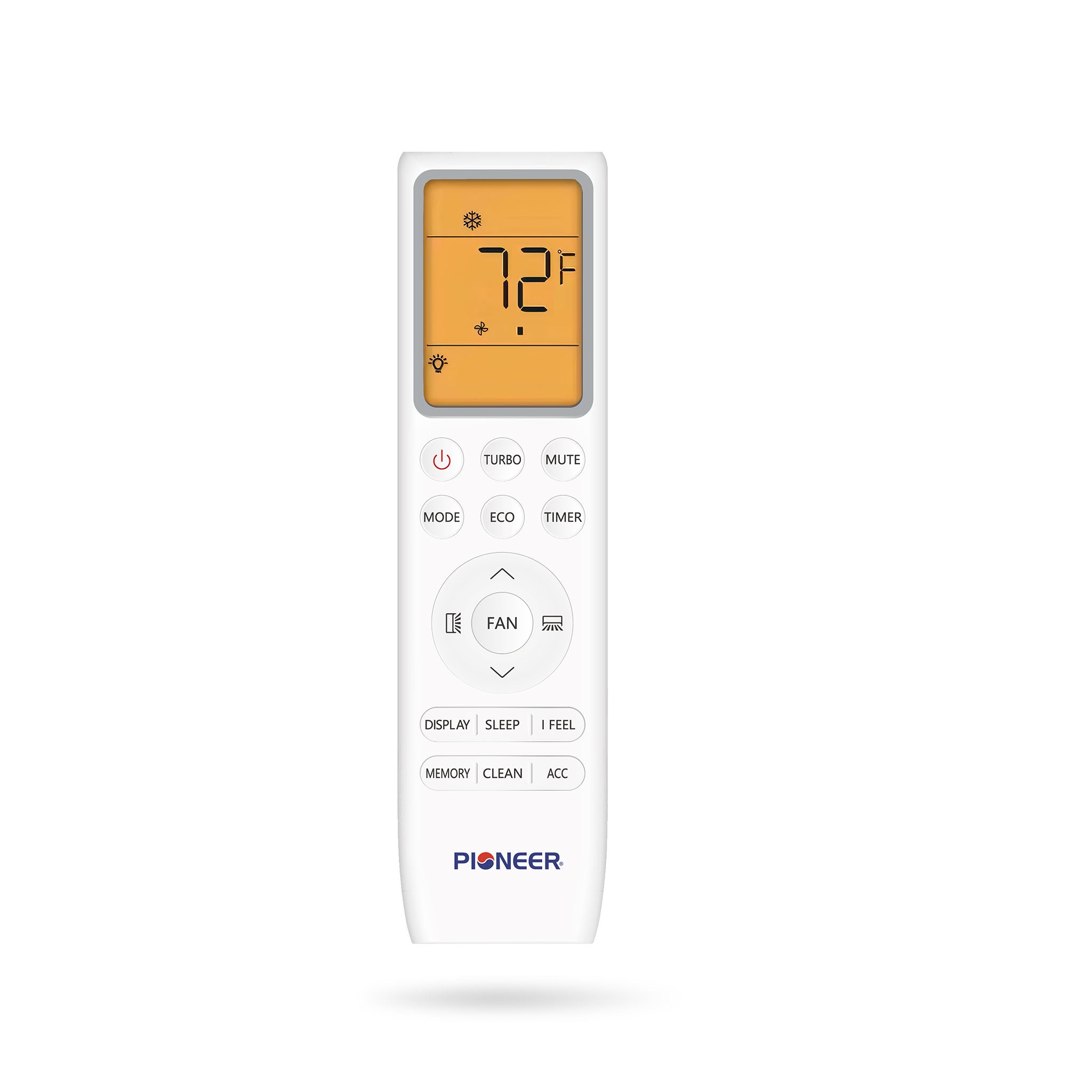

• Remote Functions: ECO, SLEEP, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL

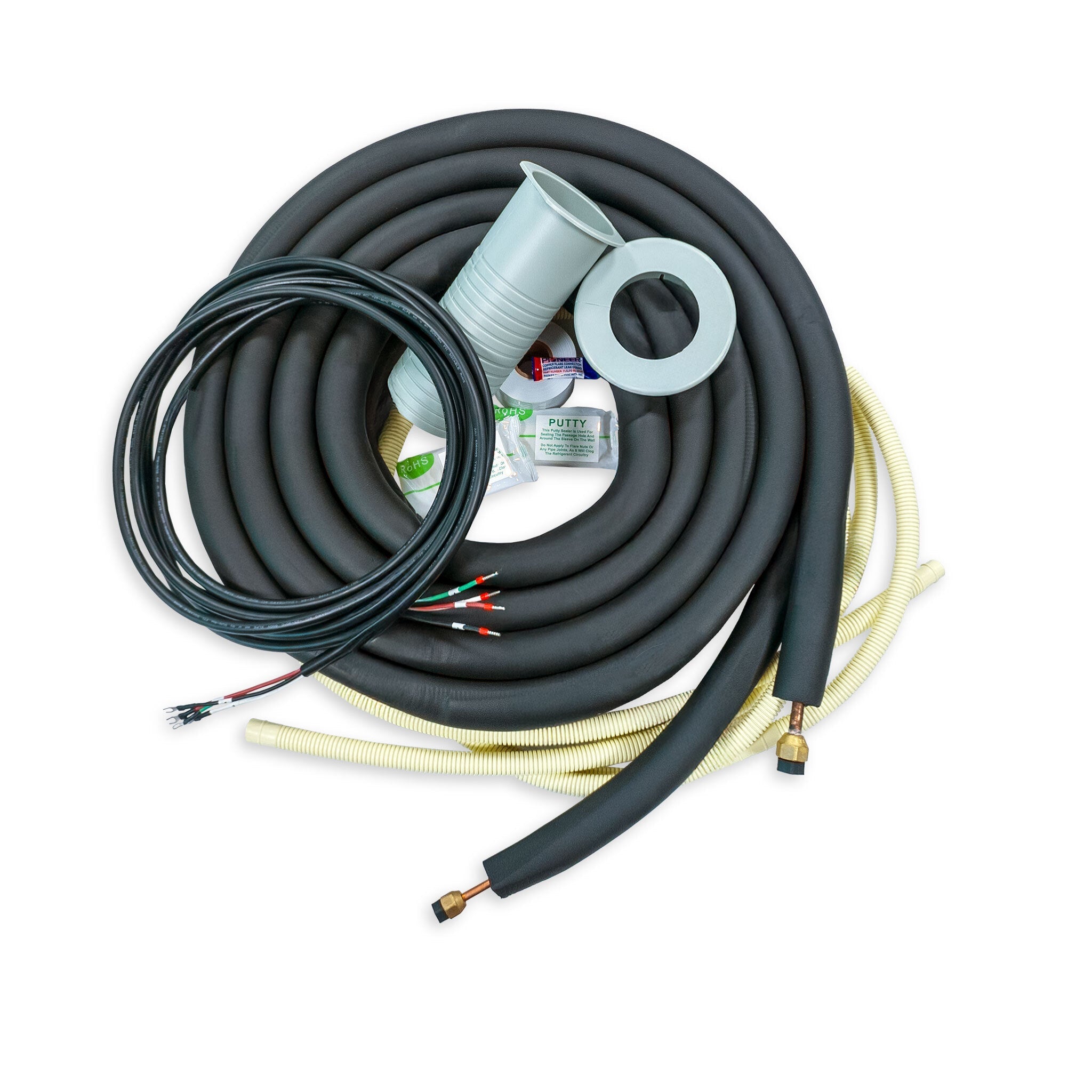

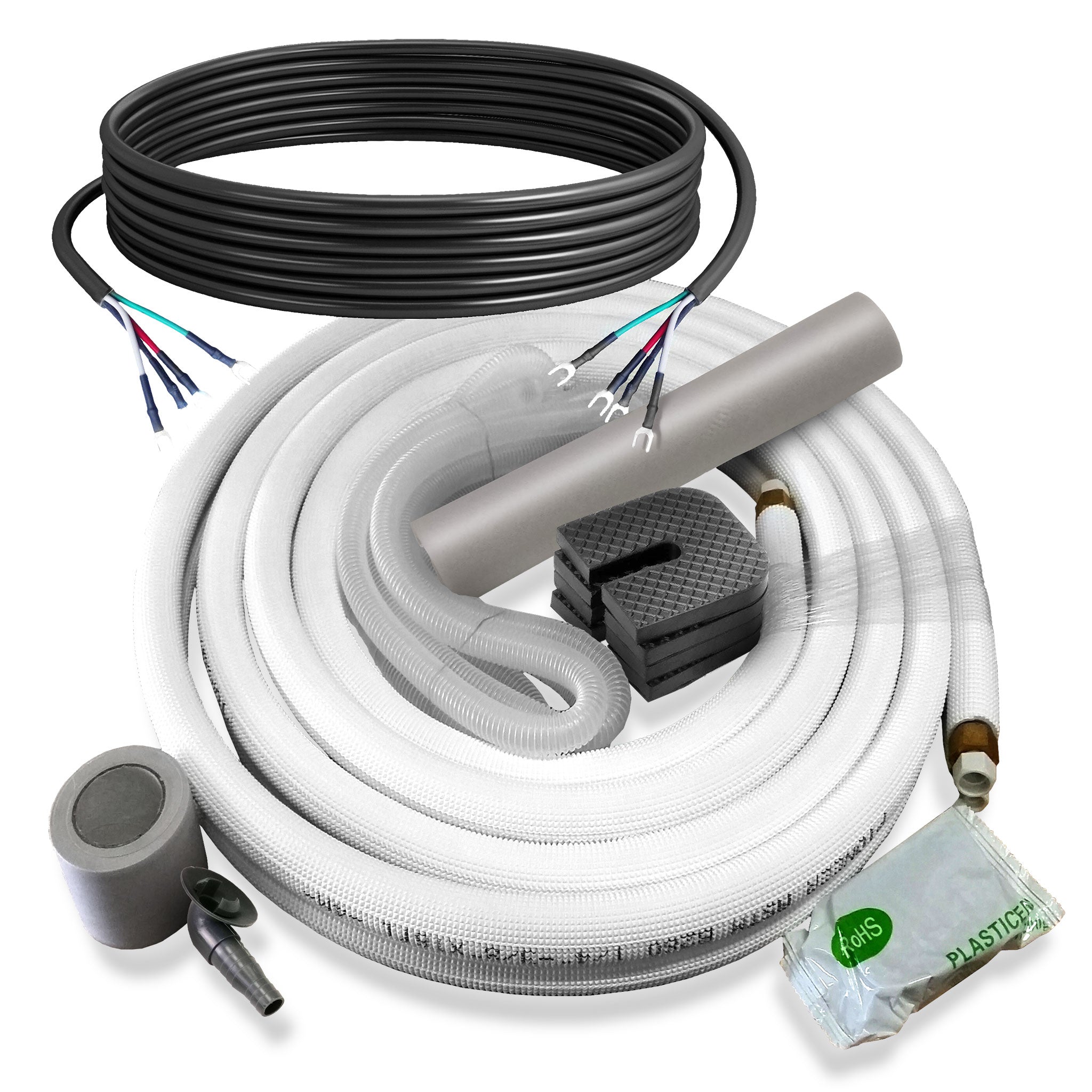

• Variant Options (from screenshot): Include System Installation Kit — Add Standard Copper Lineset, Add EZFlex™ Flexible Pipe, or No Installation Kit Needed. Installation Kit Length — 10 Ft., 16 Ft., 25 Ft., 33 Ft., 50 Ft., or None.

Technical Information & Performance

• AHRI Certificate
• Energy Guide

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 23,000 BTU/h
  • Cooling Capacity Range: 4,700~25,000 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.0 BTU/W.h
  • Heating Rated Capacity: 25,000 BTU/h
  • Heating Capacity Range: 4,700~26,500 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 750~1,000 Sq.F
  • Minimum Room Size: 62 sq ft
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4 x 5/8"
  • AHRI Reference: 217048753

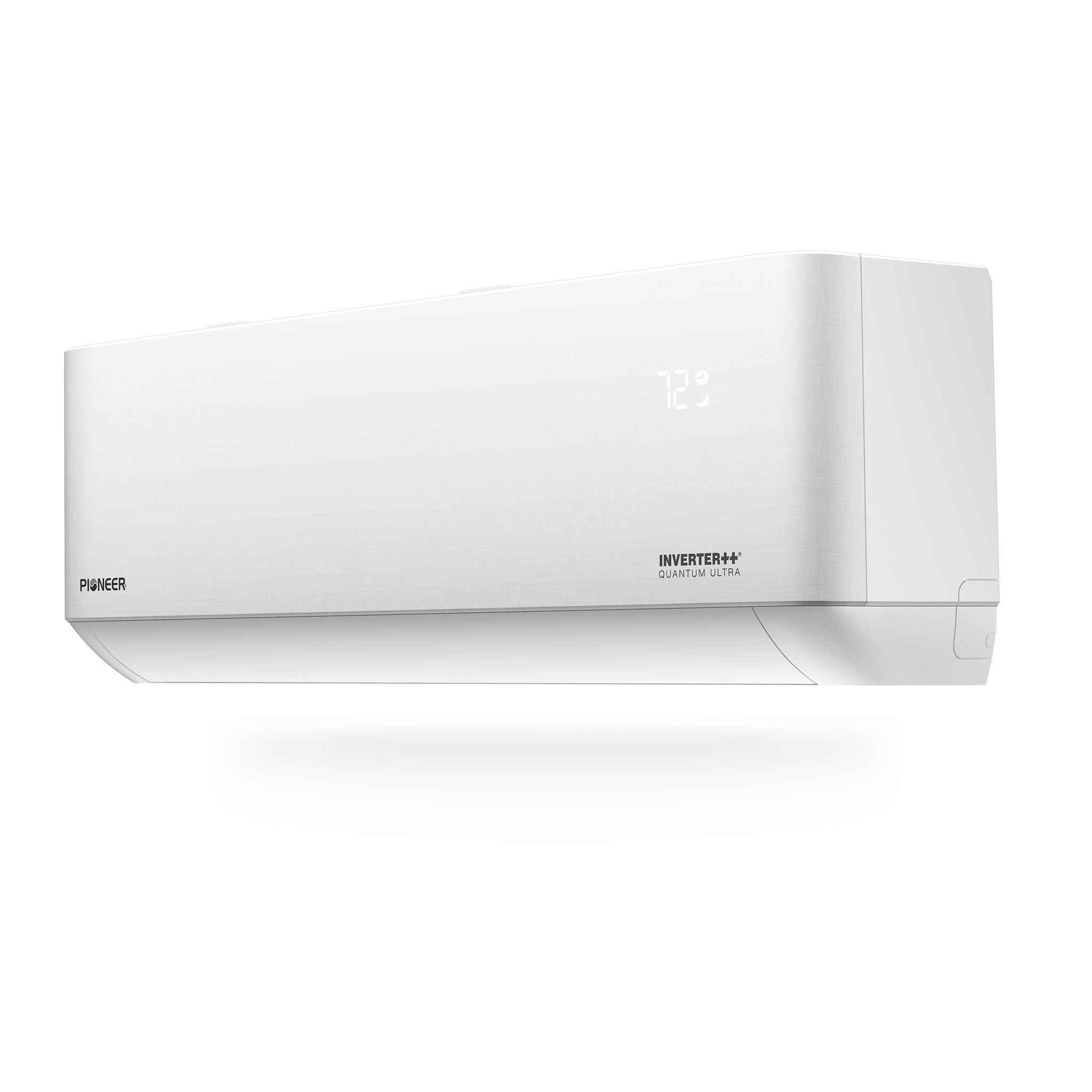

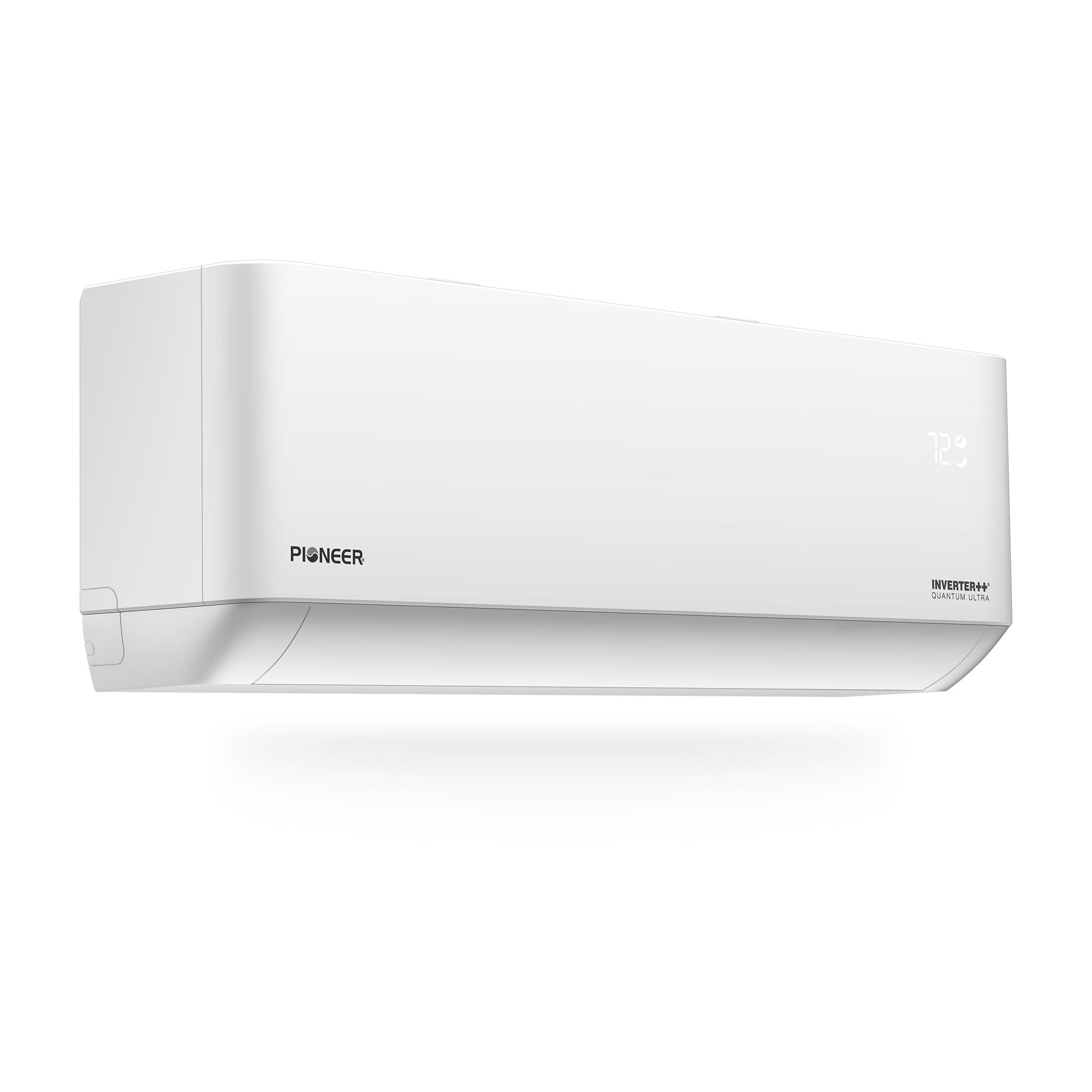

• Indoor Unit
  • Part Number: WT024GLSI24HLG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
  • Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13"-1/8 Inches
  • Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
  • Net / Gross Weight: 30.9 / 35.3 lbs.

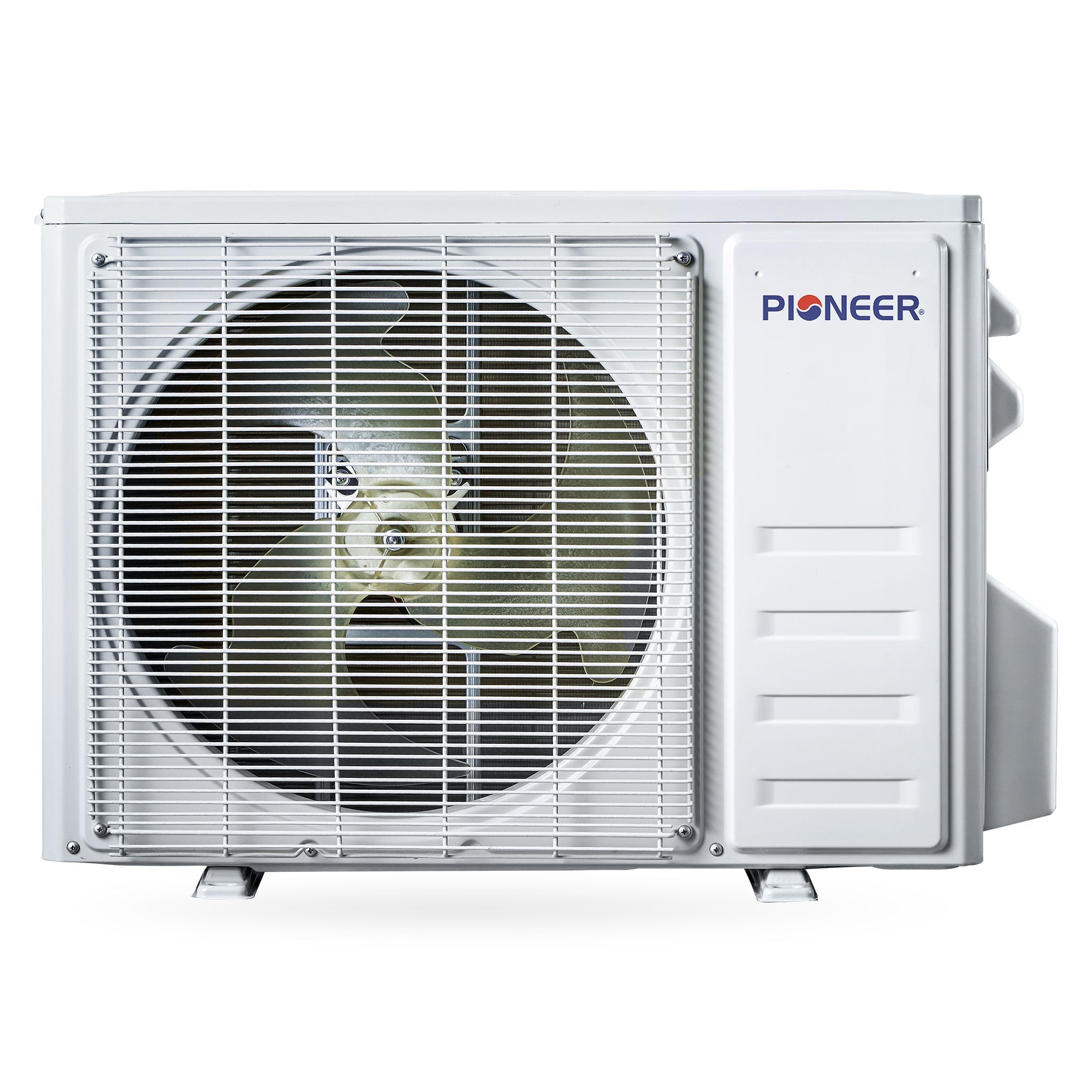

• Outdoor Unit
  • Part Number: YN024GLSI24RPG
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
  • Net / Gross Weight: 104.7 / 113.5 lbs.

Dimension Chart
