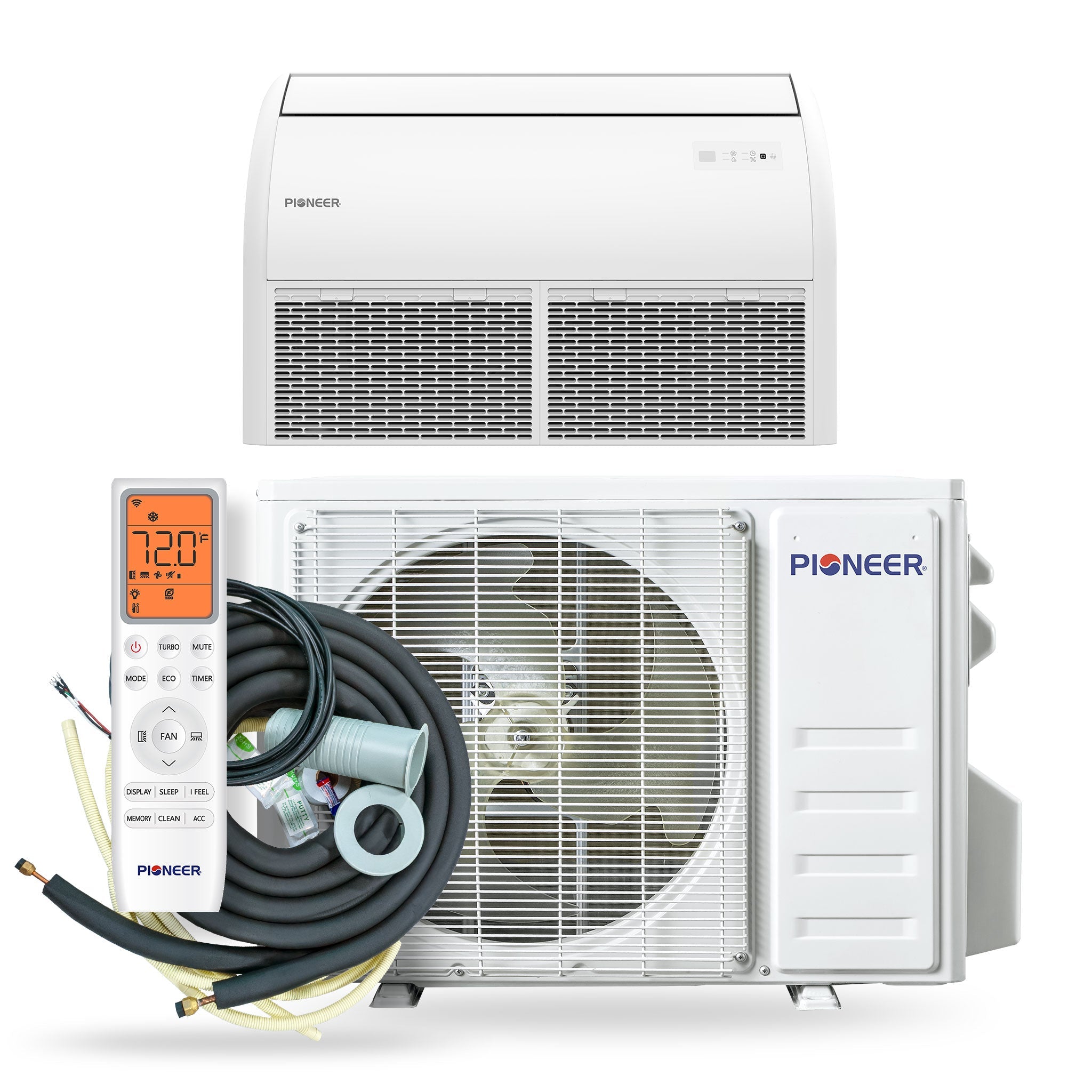

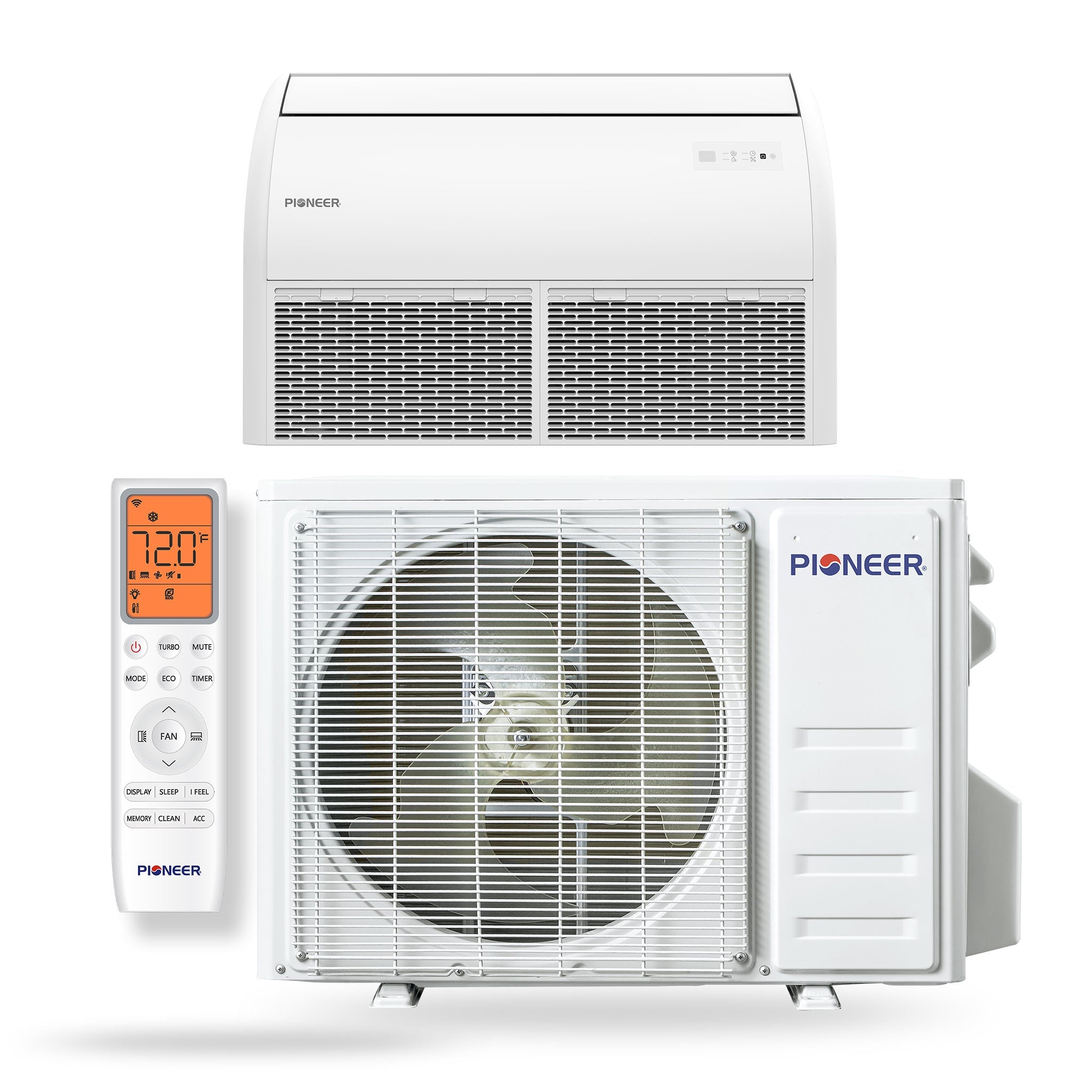

Pioneer® Quantum Ultra™ 24,000 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

The Pioneer® Quantum Ultra™ 24,000 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set delivers high-efficiency comfort with a cooling capacity of 22,200 BTU/H (20.0 SEER2 / 11.7 EER2) and heating capacity of 24,400 BTU/H (9.5 HSPF2 / 3.0 COP2). Designed for flexible installation, it can be mounted on the floor, ceiling, or low wall. The system features variable-speed DC inverter technology, operates on 208/230V power, and comes pre-charged with eco-friendly R454b refrigerant. Enjoy reliable performance even in extreme temperatures—down to -13°F for heating and up to 131°F for cooling.

Specifications

• Power Supply: 208~230V, 60Hz, 1Ph

• Cooling Rated Capacity: 22,200 BTU/h (Range: 6,010~24,610 BTU/h)

• Cooling Efficiency: 20.0 SEER2 / 11.7 EER2

• Heating Rated Capacity: 24,400 BTU/h (Range: 4,750~28,640 BTU/h)

• Heating Efficiency: 9.5 / 8.5 HSPF2 (Region IV) • COP2 3.0 / 2.0 (47°F / 5°F)

• Refrigerant Type: R454b

• Suitable Area: 750~1,000 Sq.Ft

• AHRI Reference: 217048767

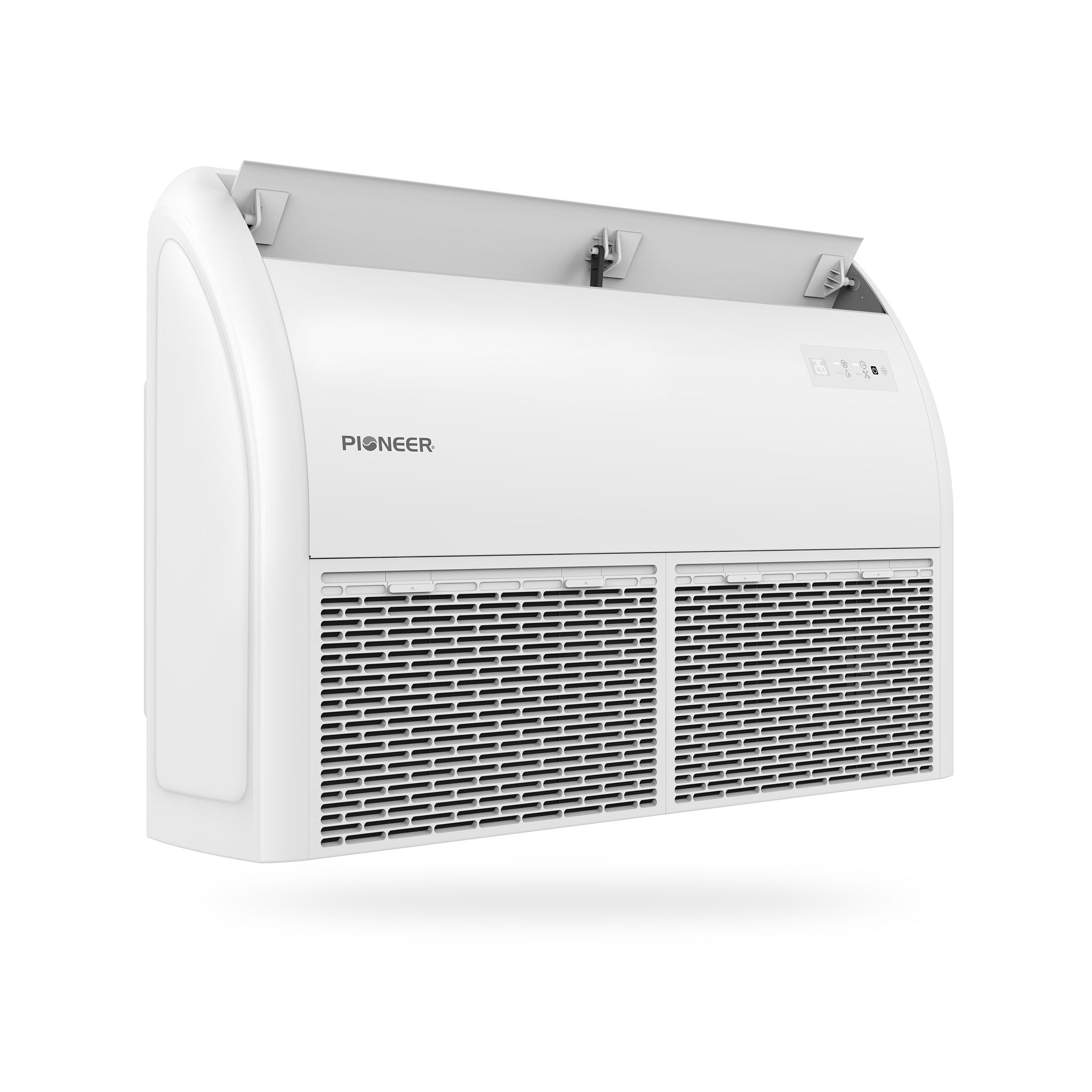

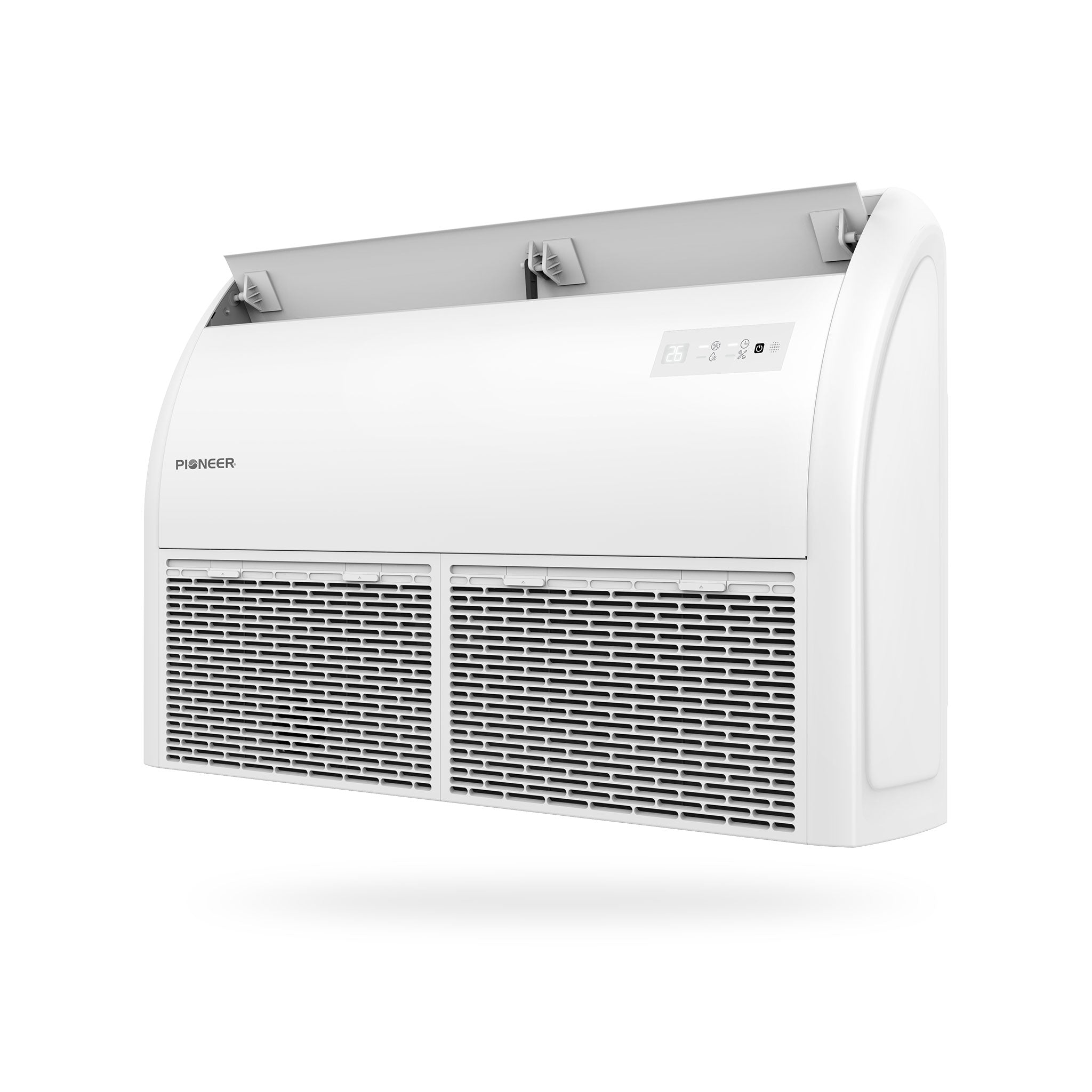

• Indoor Unit (UT024GLSILSFHG): Airflow 647/588/517/470/412 CFM • Sound 53/52/48/44/40 dB(A)

• Indoor Dimensions (W×D×H): 41½" × 26½" × 9¼" • Net/Gross Weight: 57.3 / 68.3 lbs

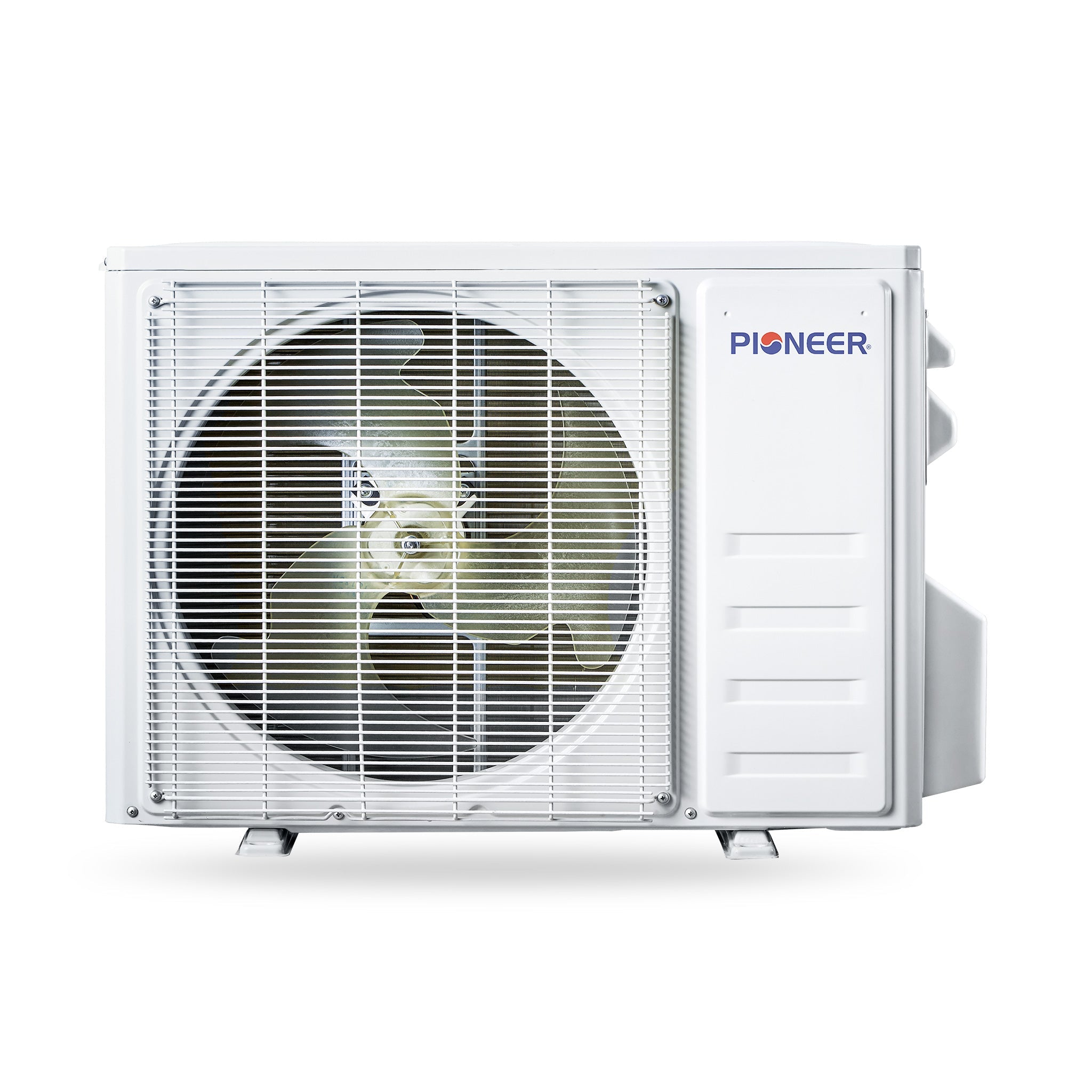

• Outdoor Unit (YN024GLSI24RPG): 54 dB(A) • Breaker: 20A (double-pole)

• Outdoor Dimensions (W×D×H): 38½" × 16⅝" × 31⅝" • Net/Gross Weight: 104.7 / 119.0 lbs

Features

• Operating Modes: Heat Pump with Cooling, Heating, Dry, and Ventilation functions

• Airflow: Dual-axis motorized louvers for vertical and horizontal control

• Drainage: Dual-drainage ports for flexible installation

• Filtration: Washable, reusable air filters

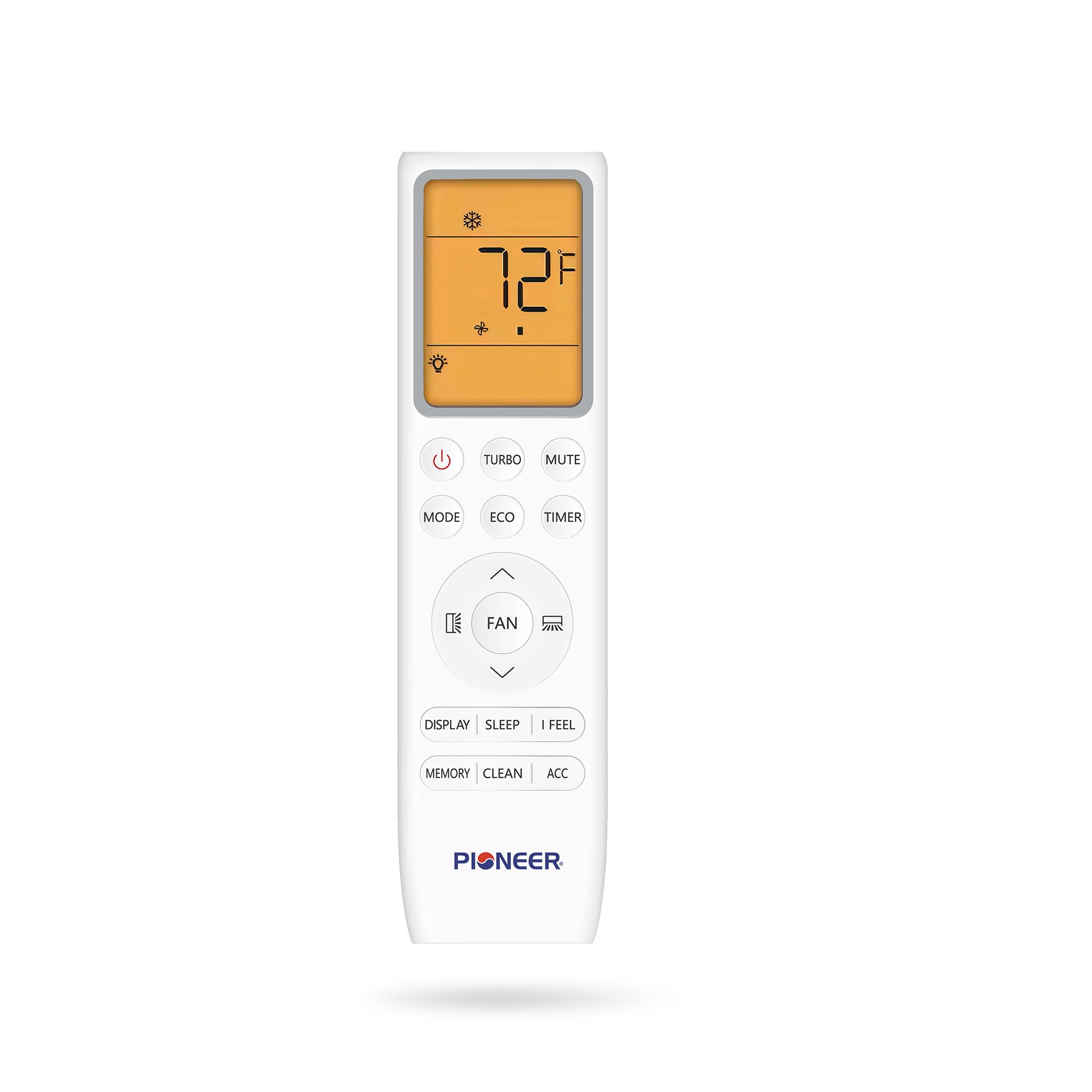

• Remote Control: Includes ECO, SLEEP, Timer, TURBO, Self-Clean, MEMORY, and IFEEL features

Installation Options

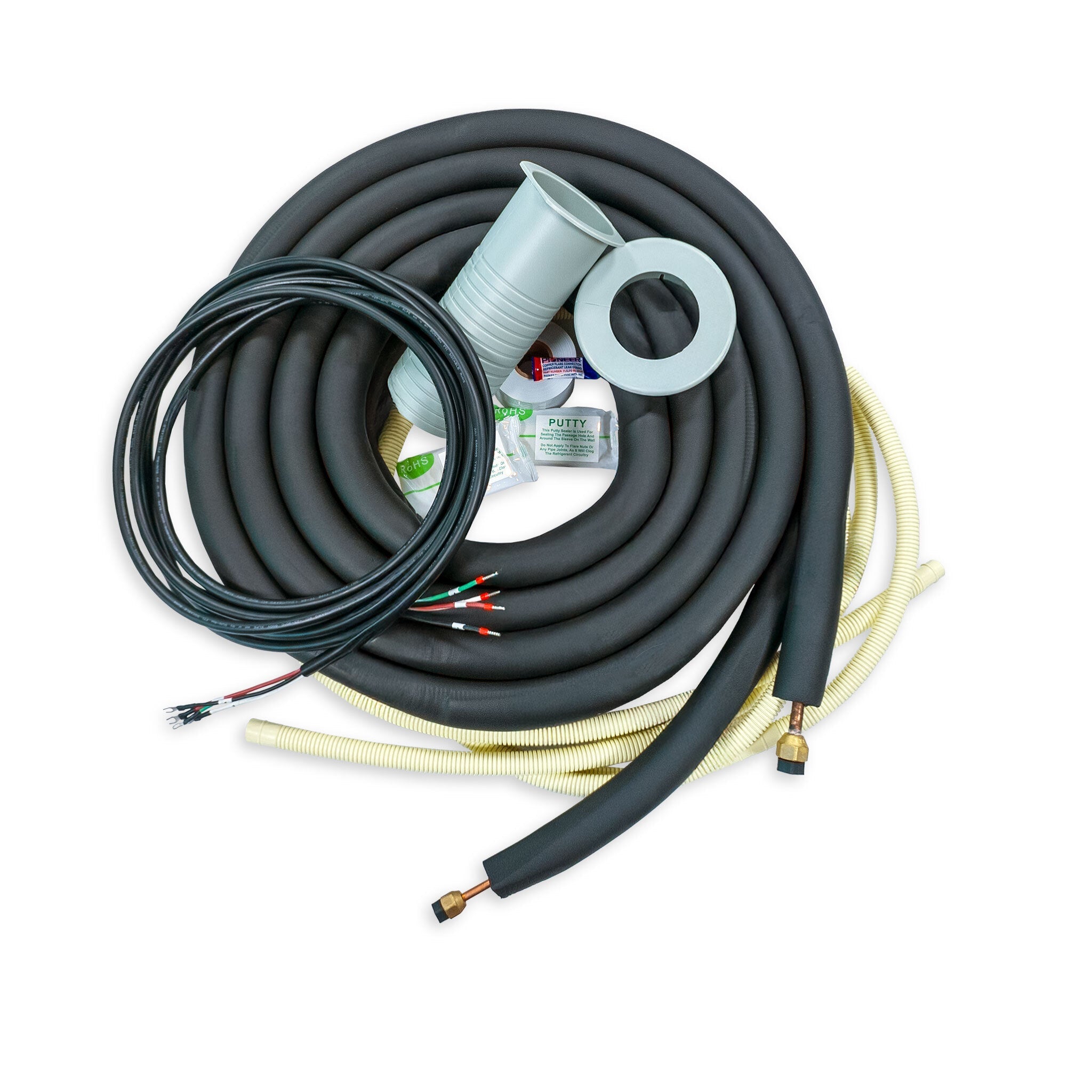

• Include System Installation Kit: Add Standard Copper Lineset, Add EZFlex™ Flexible Pipe, or No Installation Kit Needed

• Installation Kit Length: 10 Ft, 16 Ft, 25 Ft, 33 Ft, 50 Ft, or None

Maintenance

• Monthly: Clean and dry filters; ensure drain ports are clear

• Seasonally: Inspect refrigerant lines and electrical connections

• Annually: Perform deep coil cleaning and professional maintenance

Warranty

• Compressor & Parts: Manufacturer coverage applies—see official warranty terms

• Documentation: AHRI Certificate & Energy Guide

Dimension Chart
