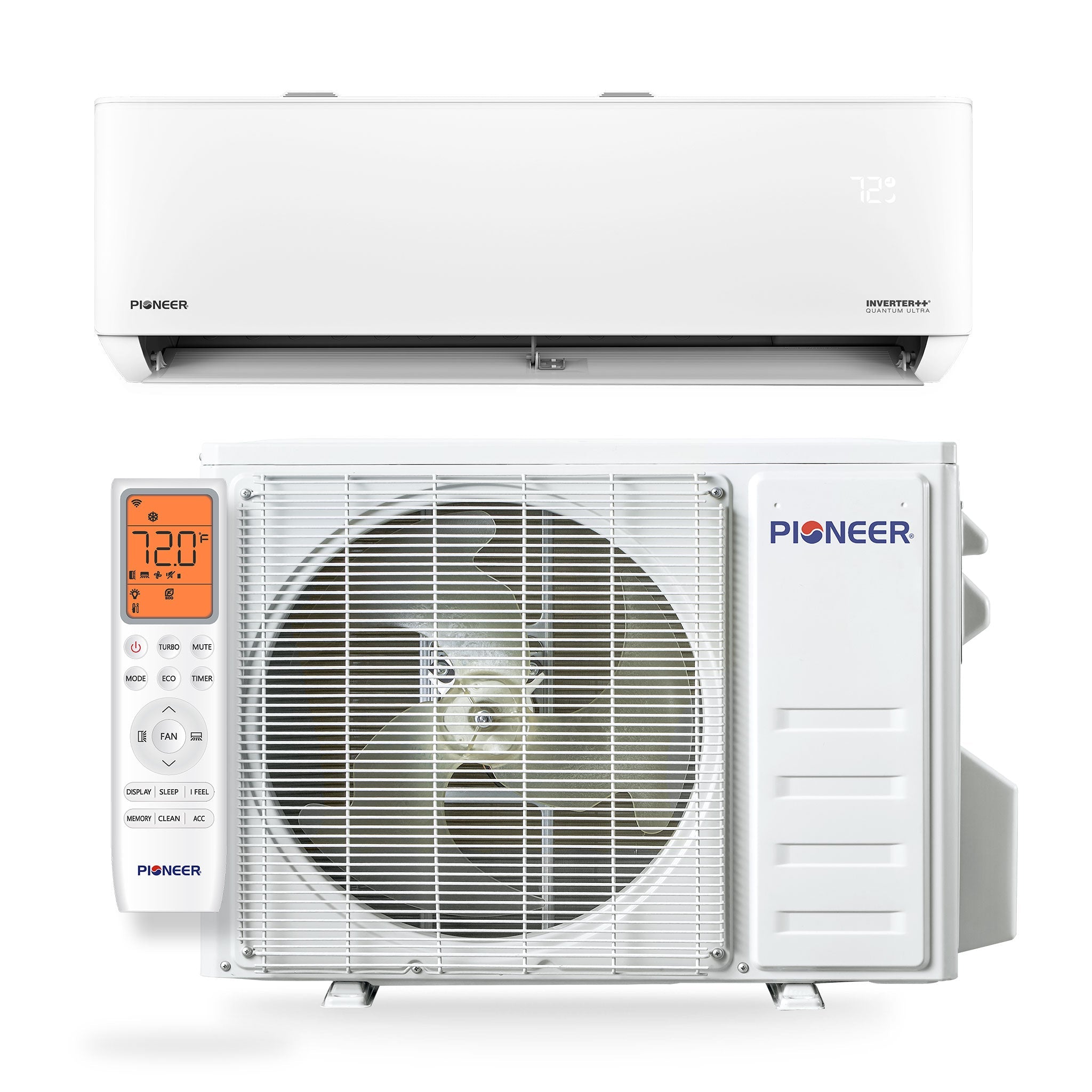

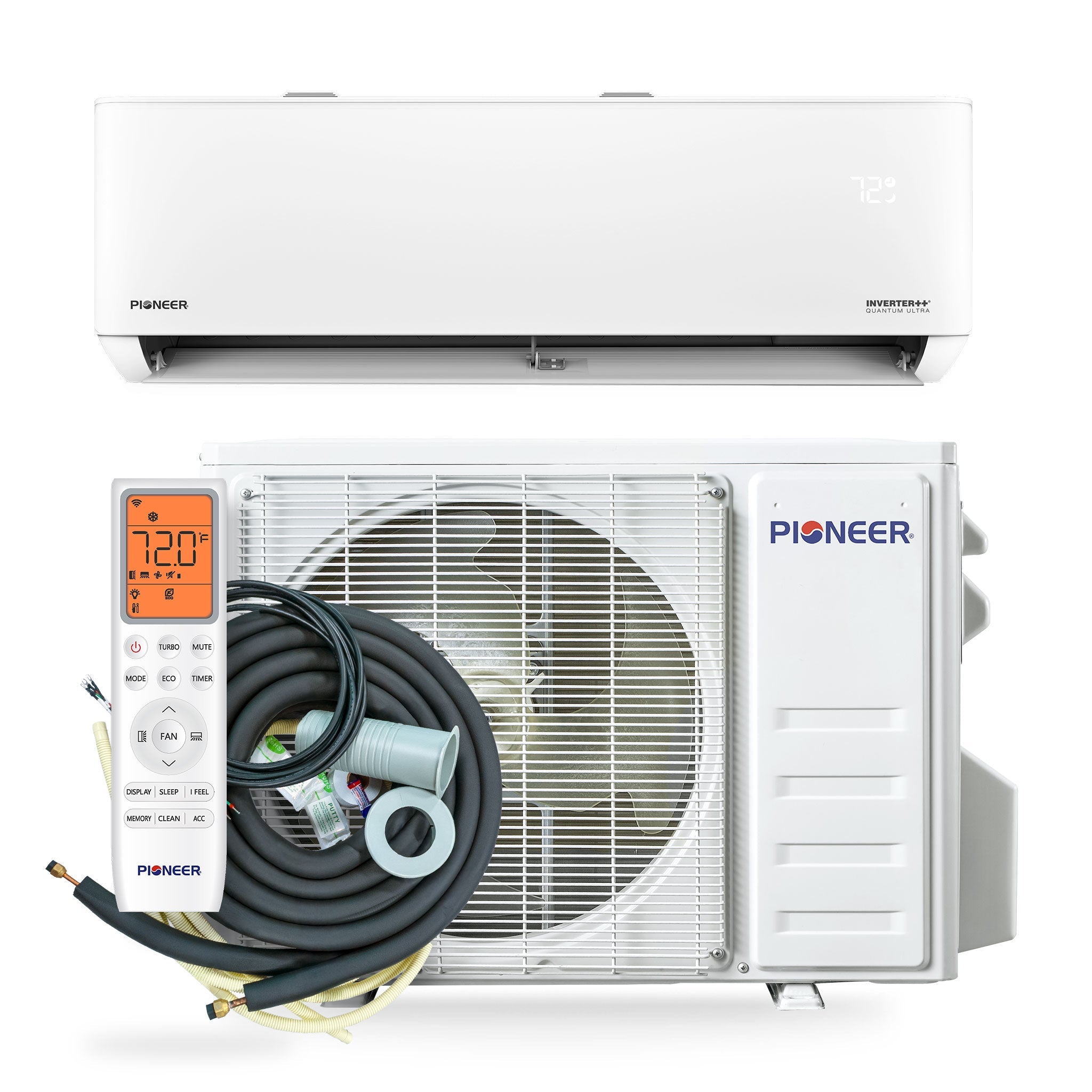

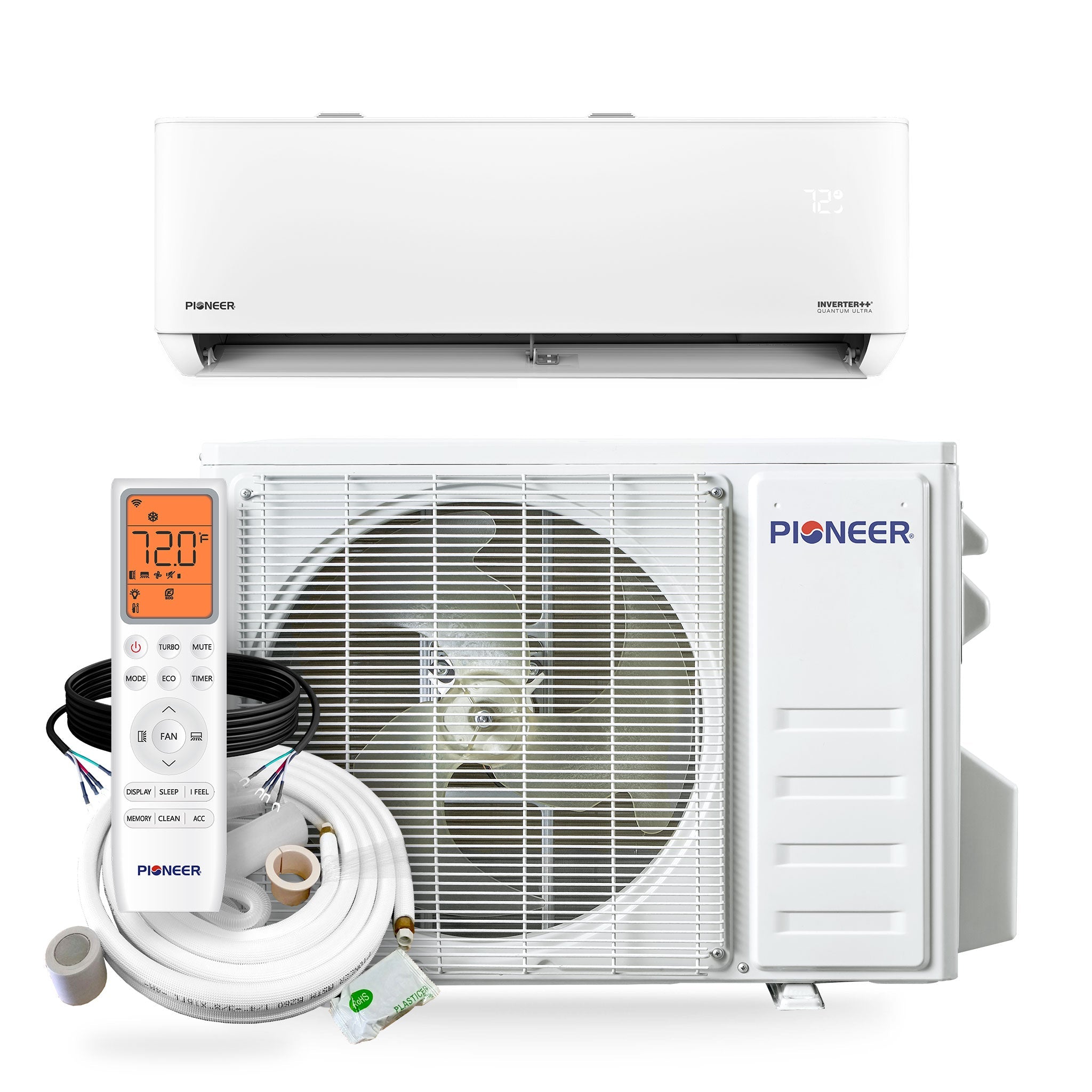

Pioneer® Quantum Ultra™ 12,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set

The Pioneer® Quantum Ultra™ 12,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set is designed for dependable, high-performance comfort. This high wall-mounted system pairs Wi-Fi app control with variable-speed DC inverter technology and eco-friendly R454b refrigerant, delivering efficient cooling and heating across an ultra-wide operating range.

Specifications

• Cooling Capacity: 12,000 BTU/H with 24 SEER2 / 13 EER2

• Heating Capacity: 12,600 BTU/H with 10.0 HSPF2 / 3.81 COP2

• Voltage: 208/230V, 60Hz, 1Ph

• Mounting: High Wall-Mounted ductless system

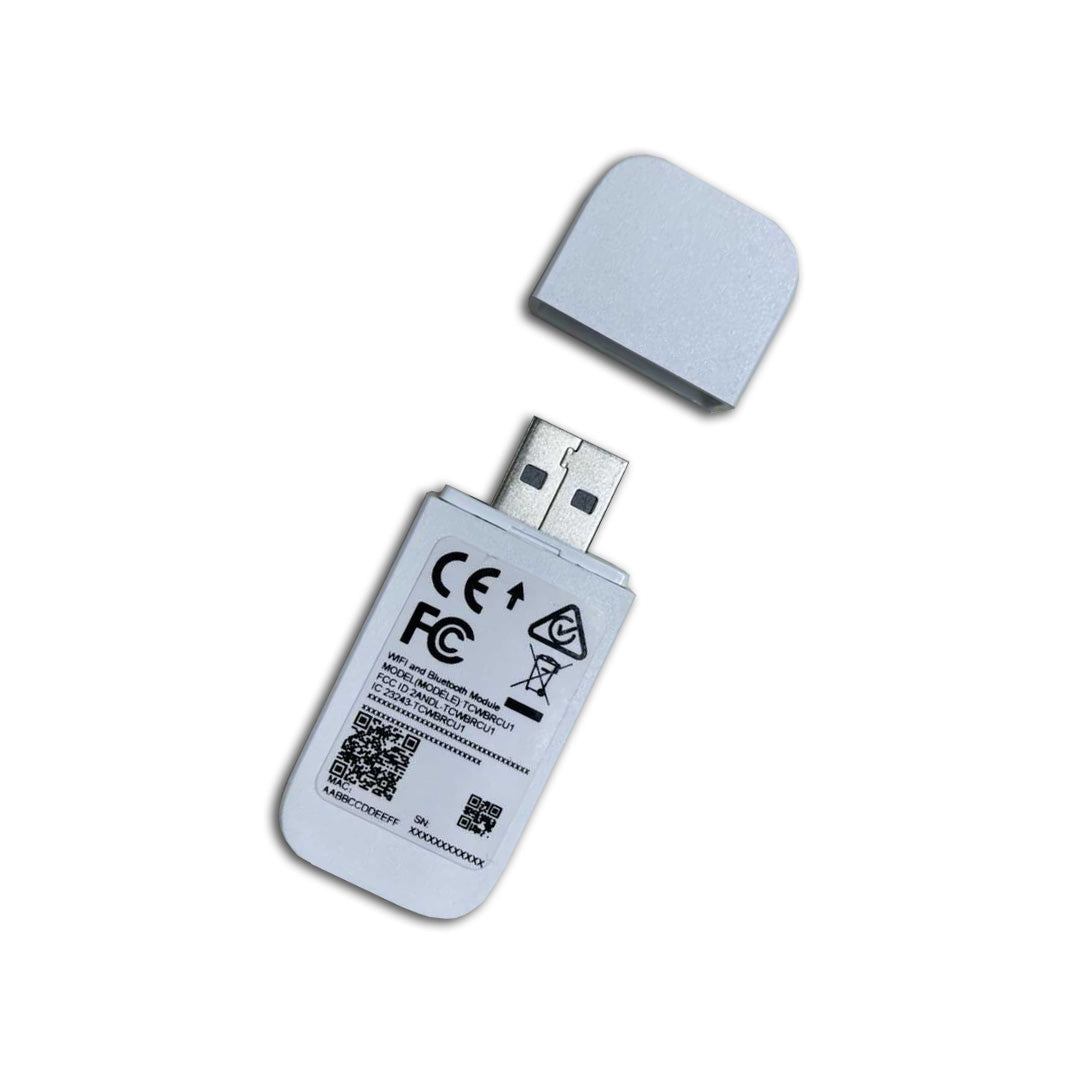

• Connectivity: Wi-Fi Enabled; Pioneer Airlink app control

• Technology: Variable-Speed DC Inverter

• Refrigerant: Factory-precharged R454b

• Operating Range: Ultra Low Ambient — as low as -13°F heating / as high as 131°F cooling

Features

• Comfort Modes: Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: Flexible condensate routing

• Washable, Reusable Filters: Easy maintenance

• Dual-Axis Airflow: Motorized Up-Down and Left-Right Louvers

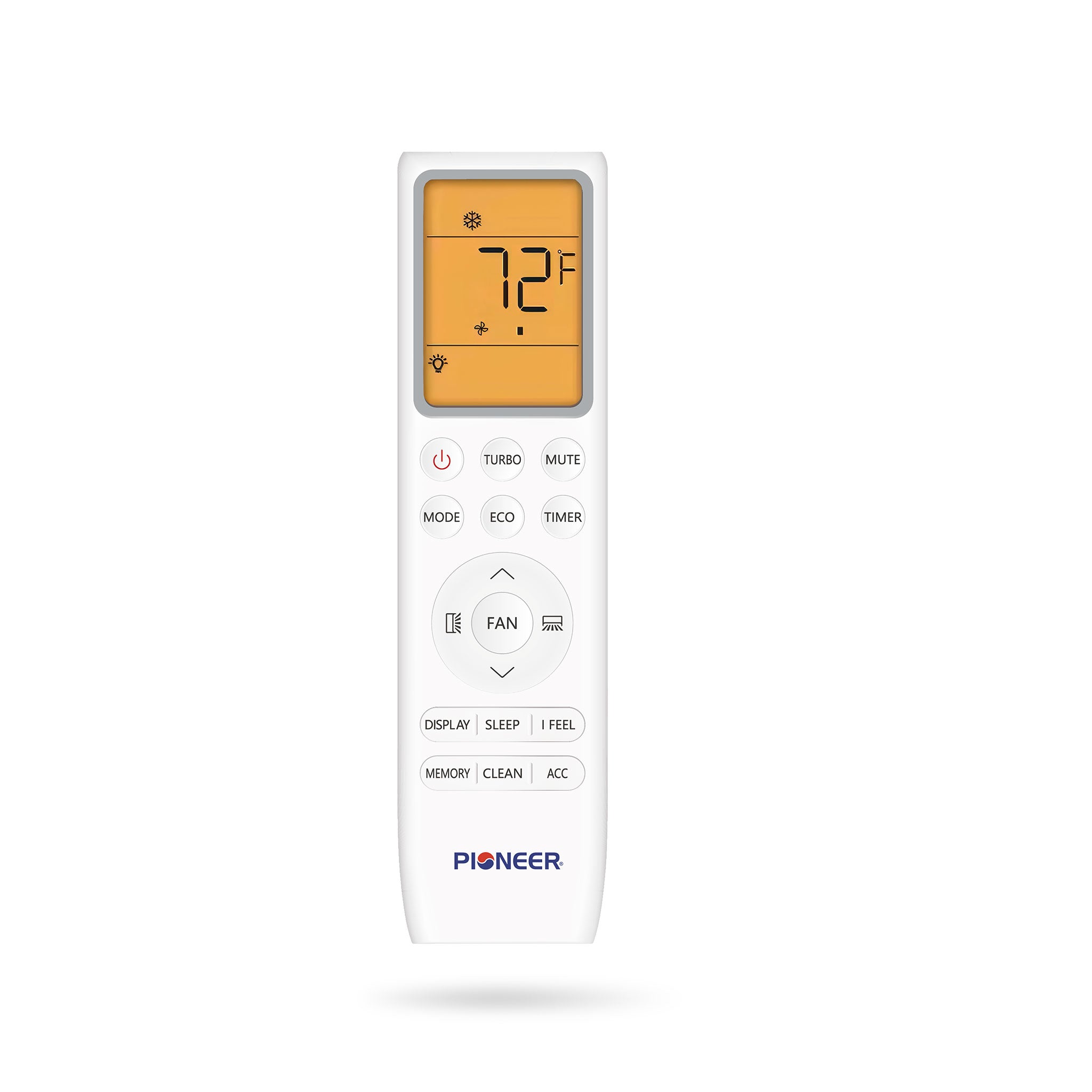

• Remote Functions: ECO, SLEEP, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL

Technical Information & Performance

• AHRI Certificate
• Energy Guide

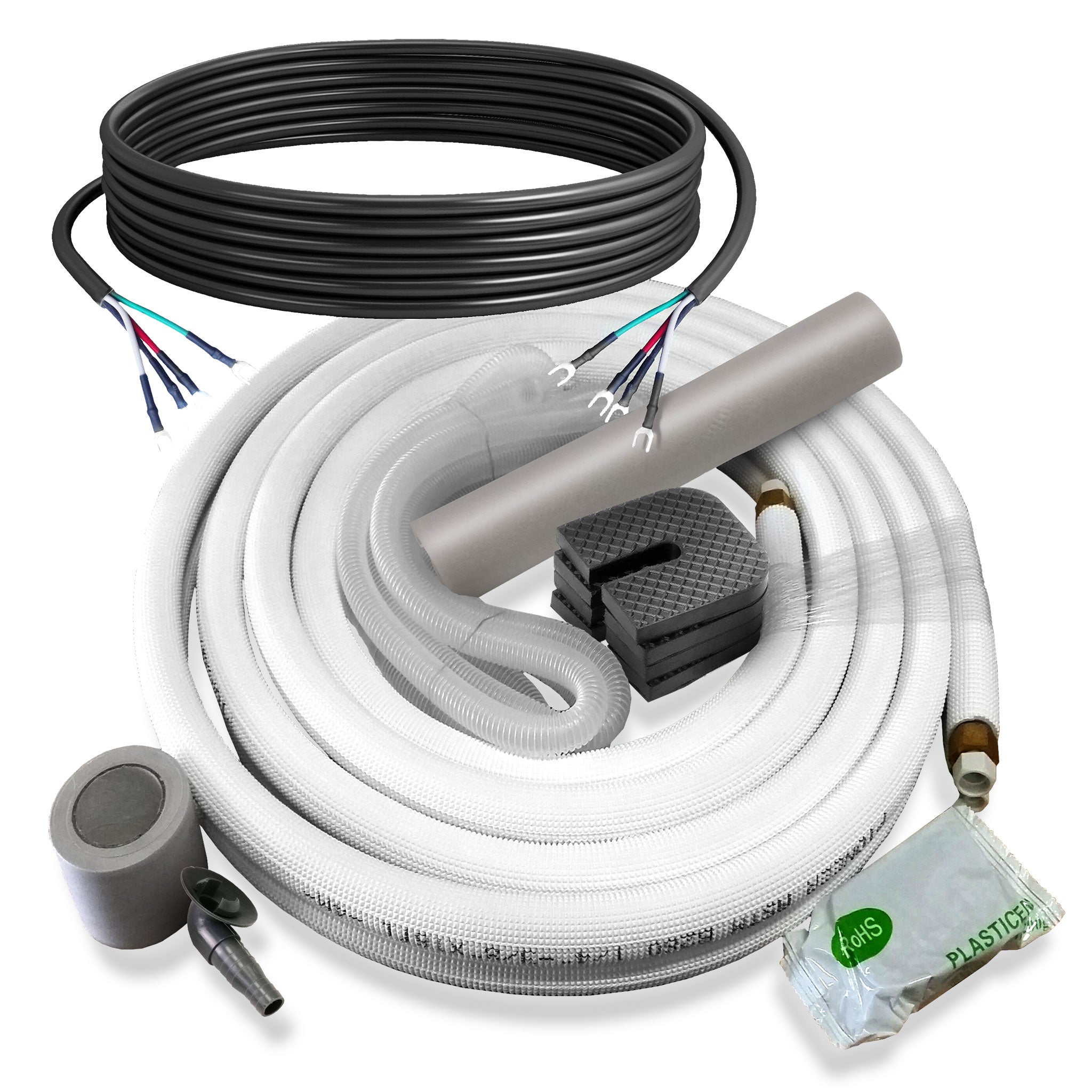

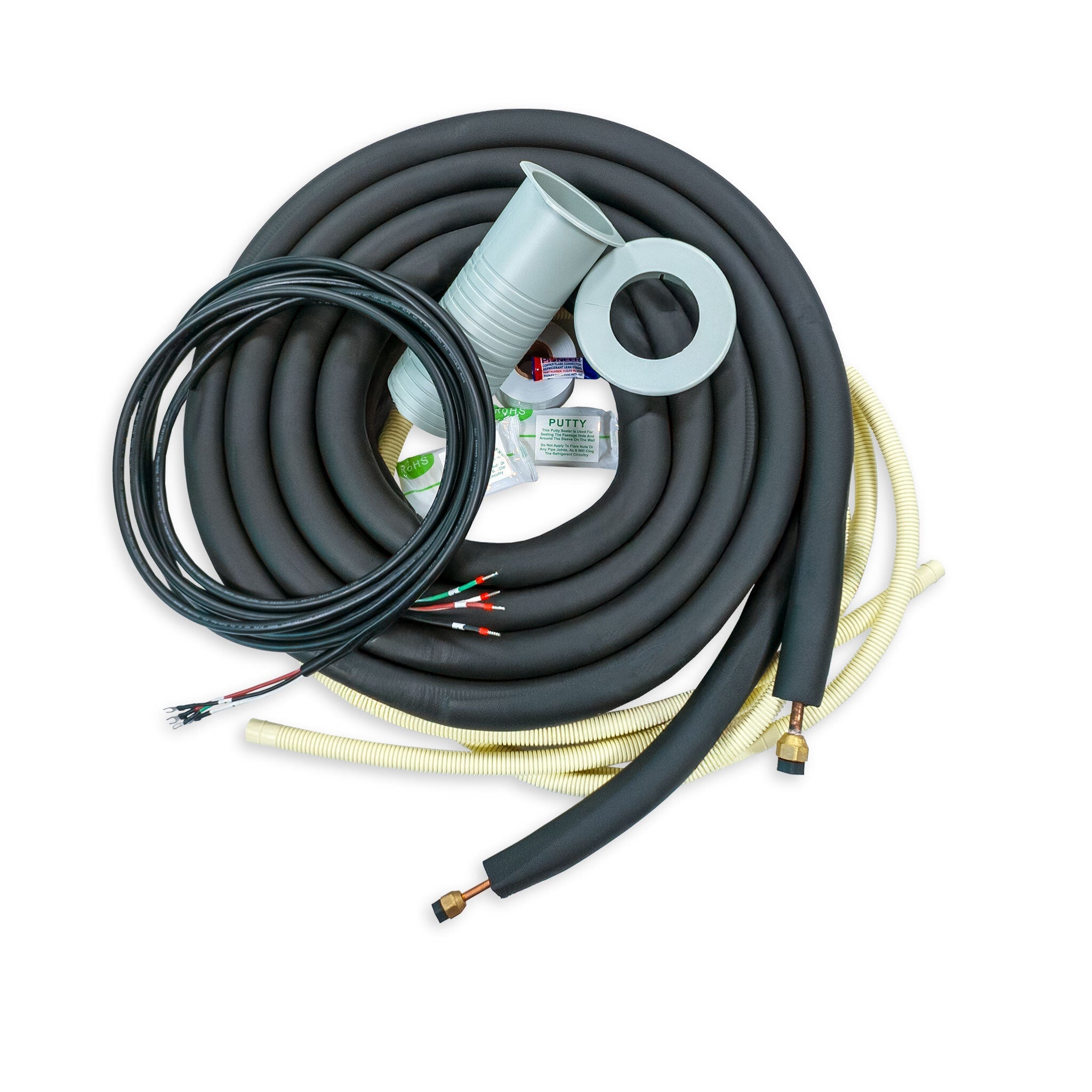

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,500~12,500 BTU/h
  • Cooling SEER2: 24.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 12,600 BTU/h
  • Heating Capacity Range: 2,500~15,000 BTU/h
  • Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 250~500 Sq.F
  • Minimum Room Size: 40 sq ft
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4 x 3/8"
  • AHRI Reference: 217048751

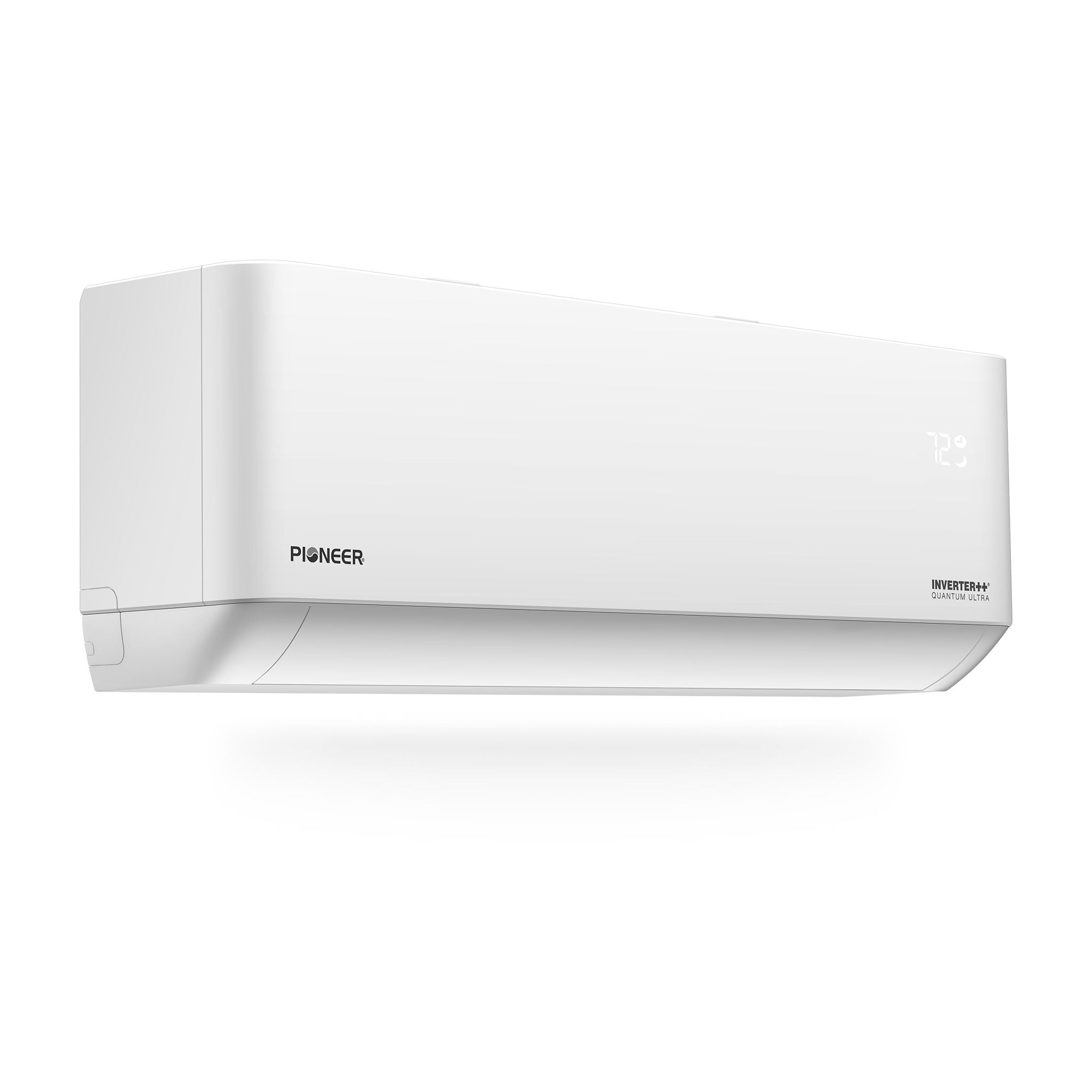

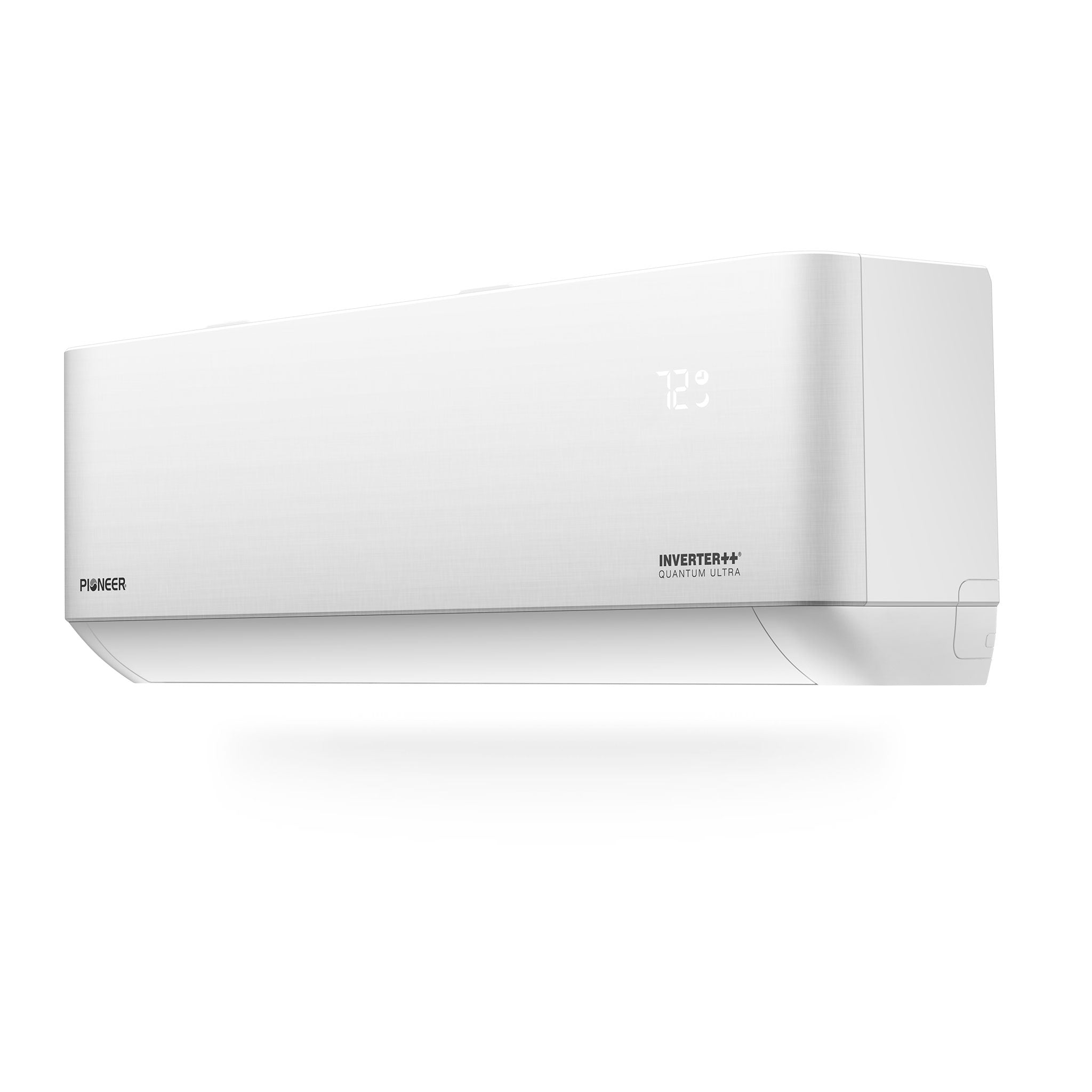

• Indoor Unit
  • Part Number: WT012GLSI24HLG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
  • Product Dimensions (WDH): 36"-1/2 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 23.1 / 30.9 lbs.

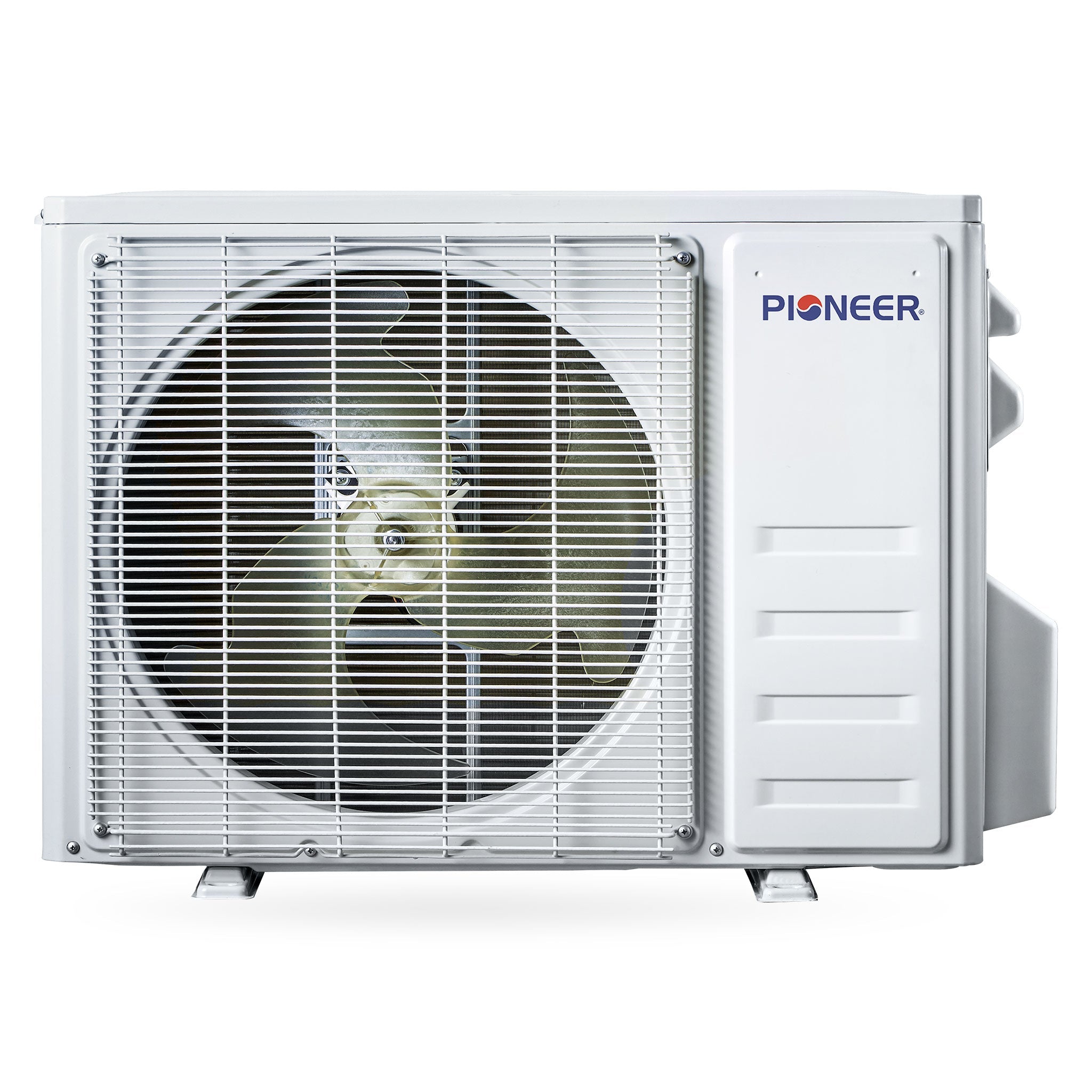

• Outdoor Unit
  • Part Number: YN012GLSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 52 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 58.4 / 65.0 lbs.

Dimension Chart
