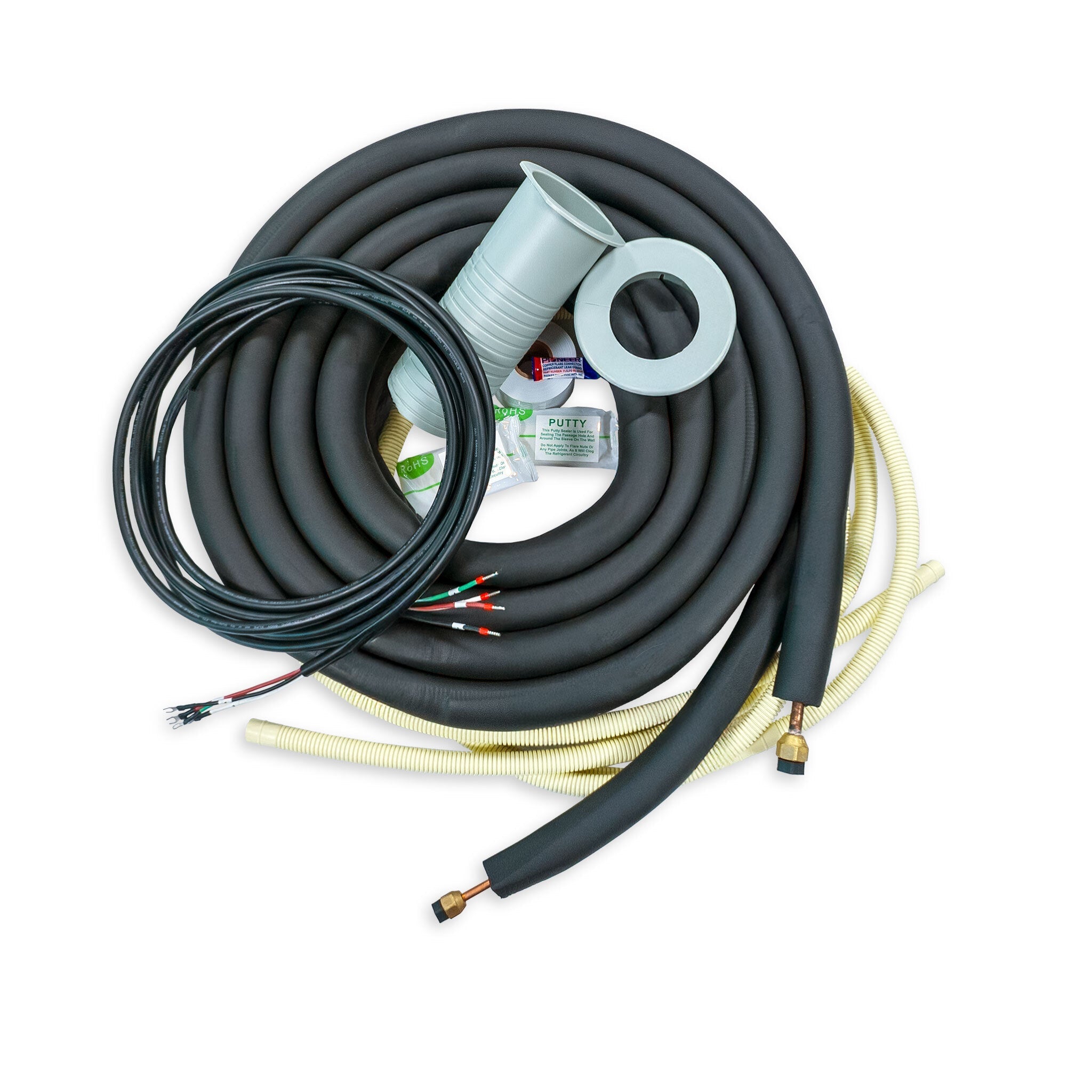

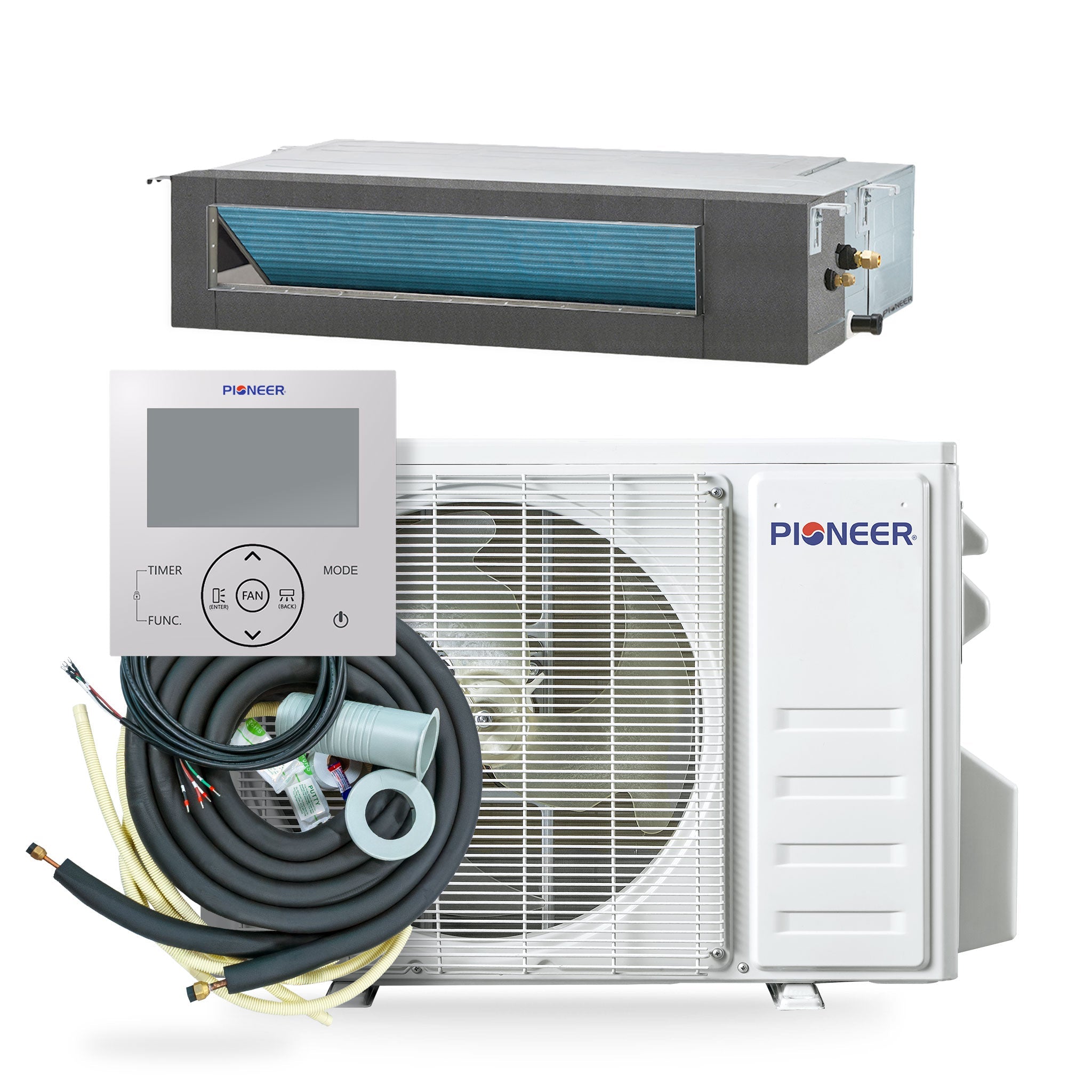

Pioneer® Quantum Ultra™ 12,000 BTU 18.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

The Pioneer® Quantum Ultra™ 12,000 BTU 18.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set delivers high-efficiency, hidden-in-ceiling comfort with variable-speed DC inverter technology and eco-friendly R454b refrigerant. Designed for quiet, discreet operation, it maintains reliable performance in ultra-low ambient conditions for year-round heating and cooling.

Specifications

• Cooling Capacity: 11,000 BTU/H (18.5 SEER2 / 11.7 EER2)

• Heating Capacity: 12,000 BTU/H (8.5 HSPF2 / 3.3 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Mount Type: Ceiling Concealed Ducted System

• Inverter: Variable-Speed DC Inverter

• Refrigerant: R454b (factory-precharged)

• Operating Range: Heat to −13°F / Cool to 131°F

• Suitable Area: 350–500 sq ft

• AHRI Reference: 217048763

Features

• All-Season Modes: Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: Flexible installation options

• Air Filters: Washable, reusable

• Dual-Axis Airflow: Motorized up-down and left-right louvers

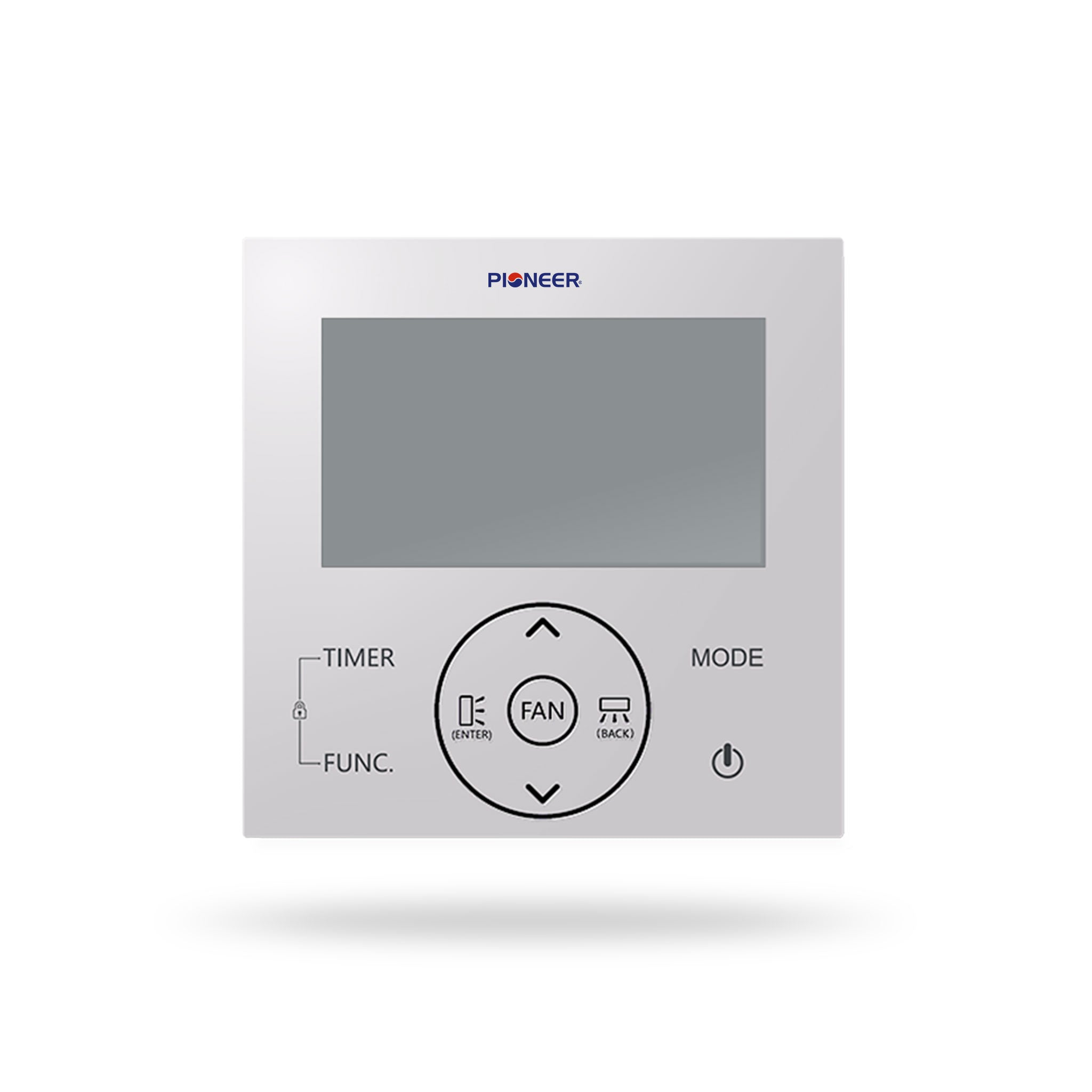

• Remote Functions: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, IFEEL

Maintenance

• Daily: Wipe down the grill and sink after use

• Weekly: Clean the refrigerator and ice maker

• Annually: Inspect all connections and perform detailed cleaning

Warranty

• Frame & Grill: 7 years

• Wine Cooler & Refrigerator: 3 years

Technical Information & Performance

• AHRI Certificate

• Energy Guide

• Indoor Unit

  • Part Number: RT012GLSILCFHG

  • Air Flow (Turbo/Hi/Med/Lo/Mute): 360 / 330 / 270 / 210 / 180 CFM

  • Sound Level (Turbo/Hi/Med): 43 / 41 / 39 dB(A)

  • Product Dimensions (W×D×H): 27½" × 19¼" × 7⅞"

  • Carton (W×D×H): 35½" × 21⅞" × 9⅞"

  • Net / Gross Weight: 33.1 / 40.8 lbs.

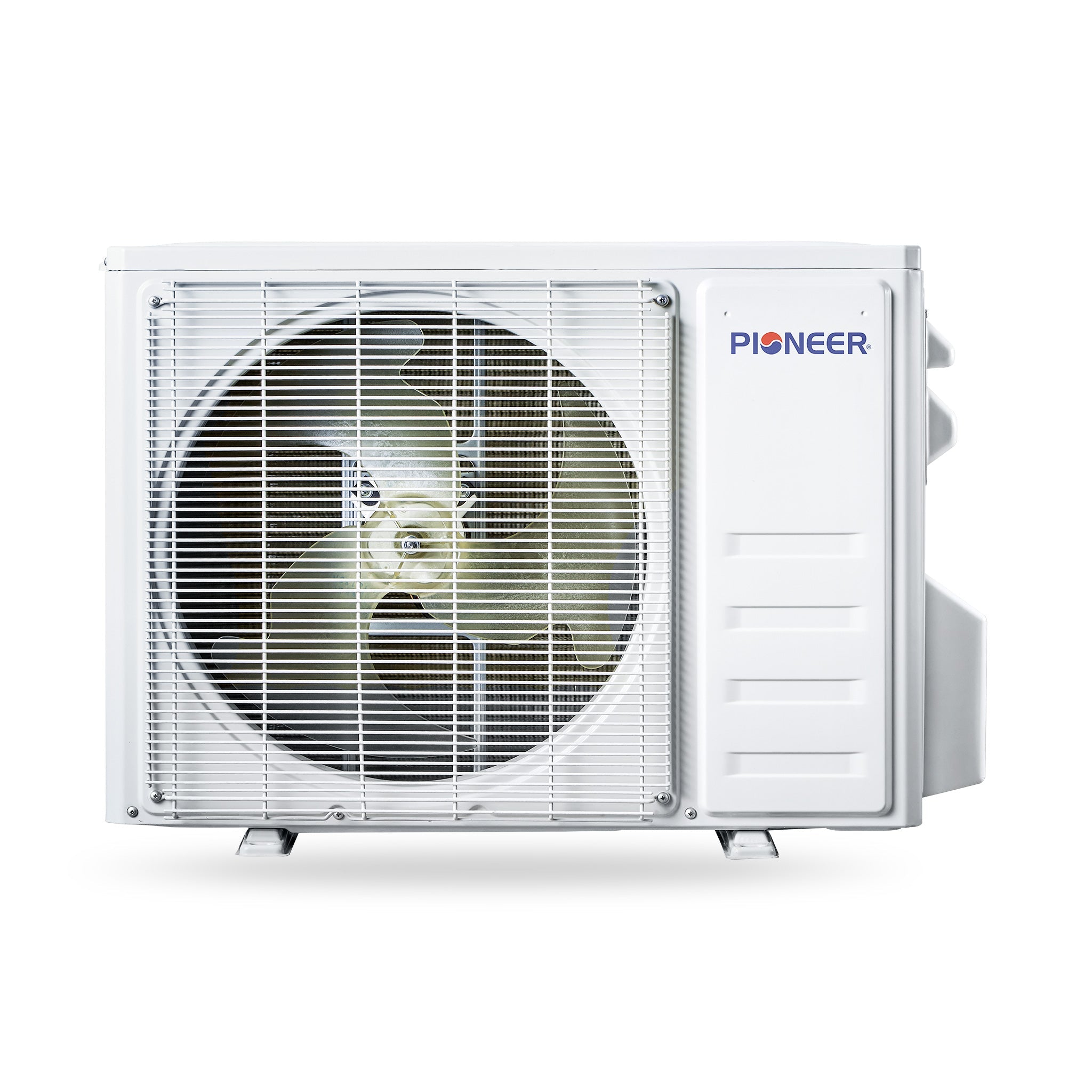

• Outdoor Unit

  • Part Number: YN012GLSI24RPG

  • Breaker Needed: 15A (double-pole)

  • Sound Level: 52 dB(A)

  • Net Dimensions (W×D×H): 31⅞" × 12" × 21⅝"

  • Carton (W×D×H): 32⅞" × 13" × 22⅝"

  • Net / Gross Weight: 58.4 / 65.0 lbs.

Dimension Chart

• Indoor (W×D×H): 27½" × 19¼" × 7⅞"

• Outdoor (W×D×H): 31⅞" × 12" × 21⅝"
