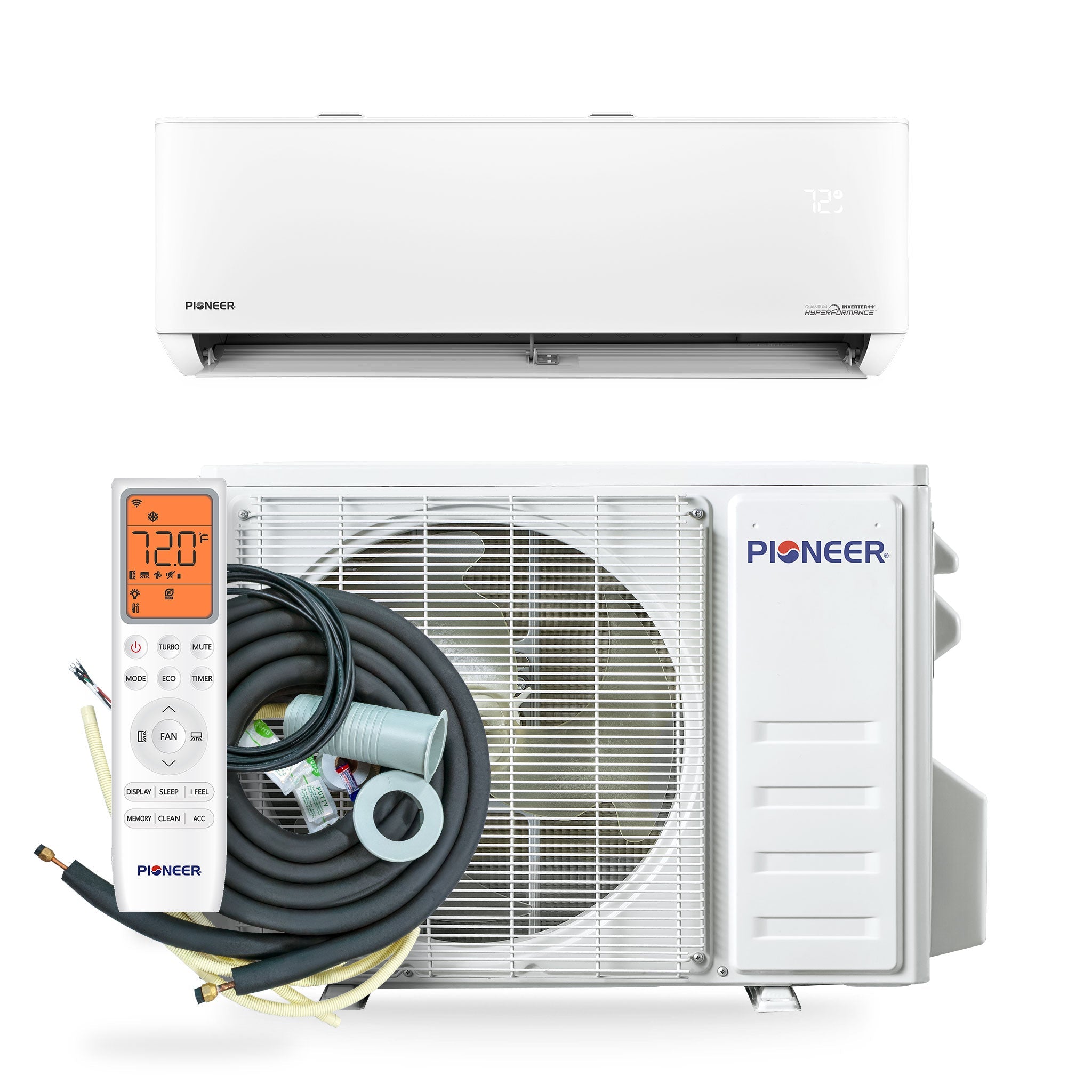

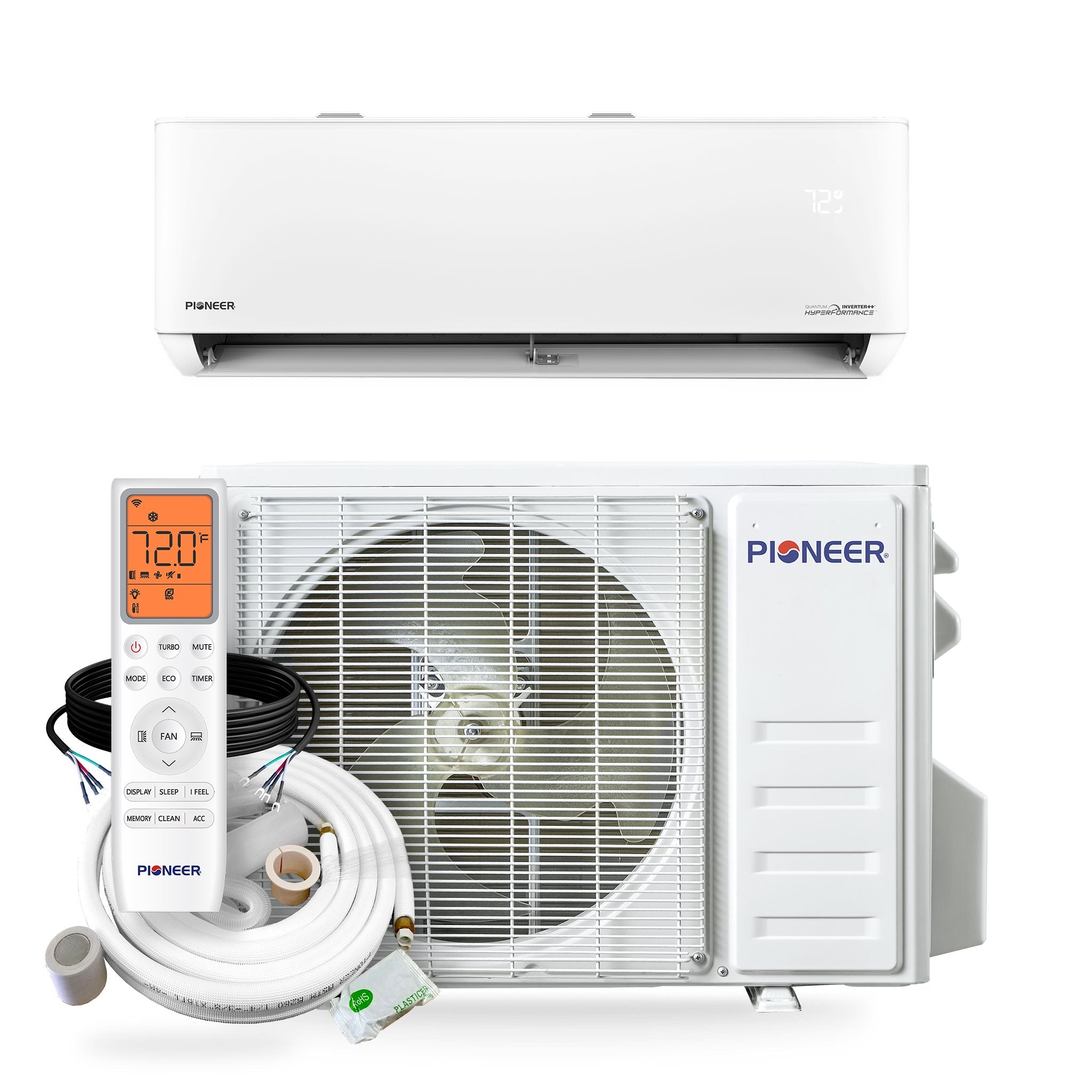

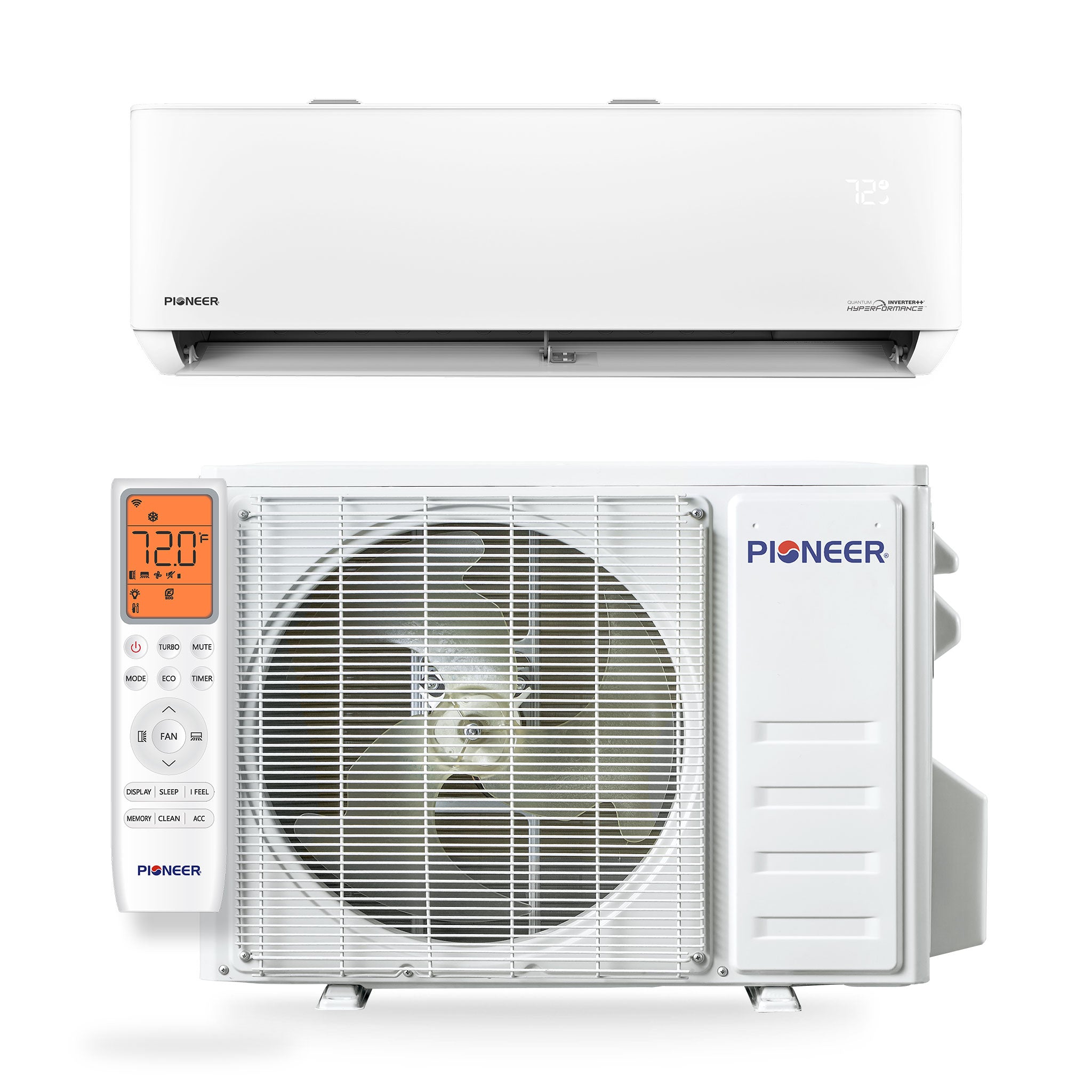

Pioneer® Quantum Hyperformance™ 9,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set

The Pioneer® Quantum Hyperformance™ 9,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set is designed for those who demand top-tier performance and control. This high wall-mounted system delivers powerful comfort with ultra-efficient cooling and heating, Wi-Fi app control, DC inverter technology, and eco-friendly R454b refrigerant for reliable operation from extreme cold to intense heat.

Specifications

• Cooling Capacity: 9,000 BTU/H with 25 SEER2 / 14.5 EER2

• Heating Capacity: 9,500 BTU/H with 10.5 HSPF2 / 4.0 COP2

• Voltage: 208/230V, 60Hz, 1Ph

• Mounting: High wall-mounted ductless system

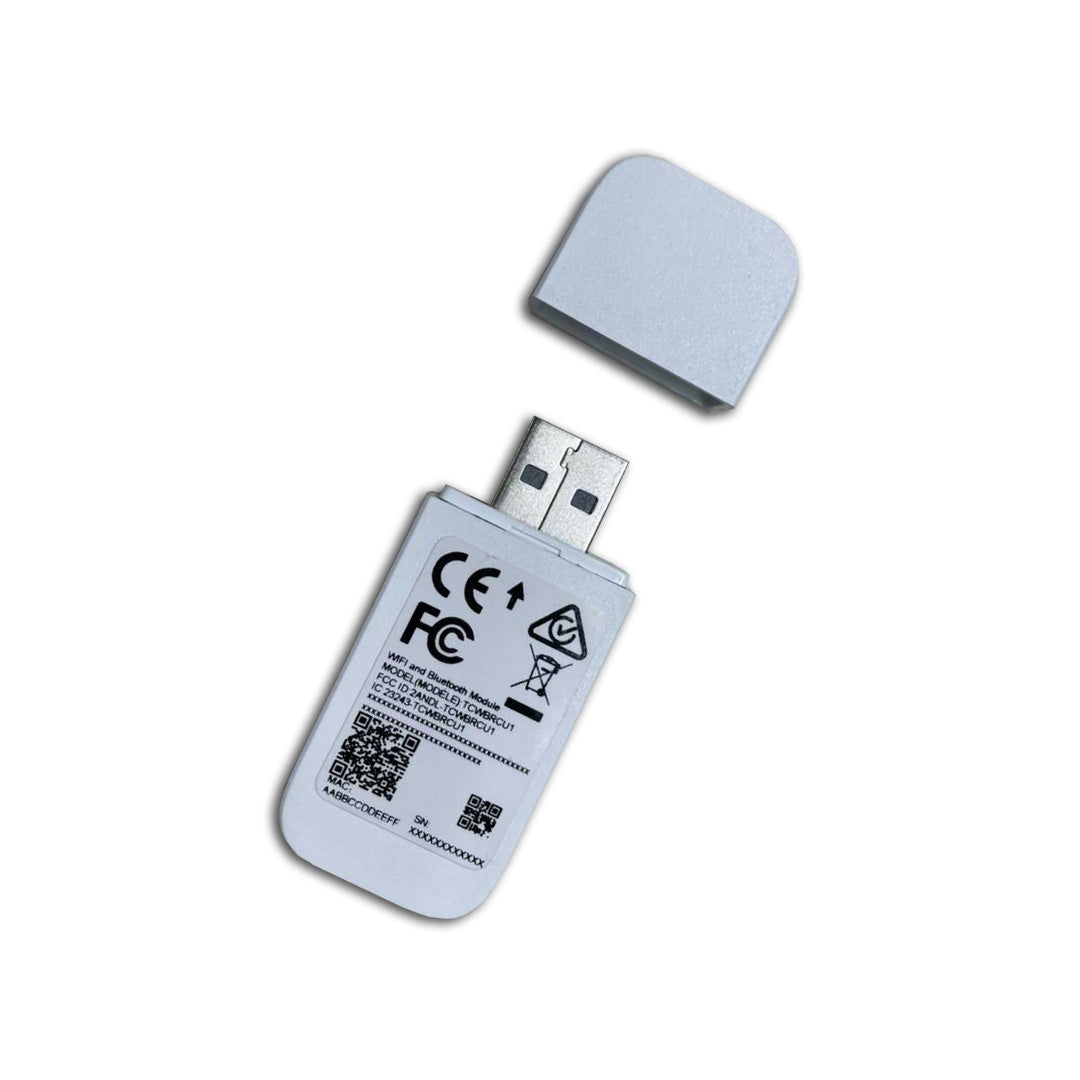

• Connectivity: Wi-Fi enabled; Pioneer Airlink app

• Technology: Variable-speed DC inverter

• Refrigerant: Factory-precharged R454b

• Operating Range: Extreme Climate — down to -22°F heating / up to 131°F cooling

Features

• Comfort Modes: Heat Pump with Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: Flexible condensate routing

• Washable, Reusable Air Filters: Easy maintenance

• Dual-Axis Airflow: Motorized Up-Down and Left-Right Louvers

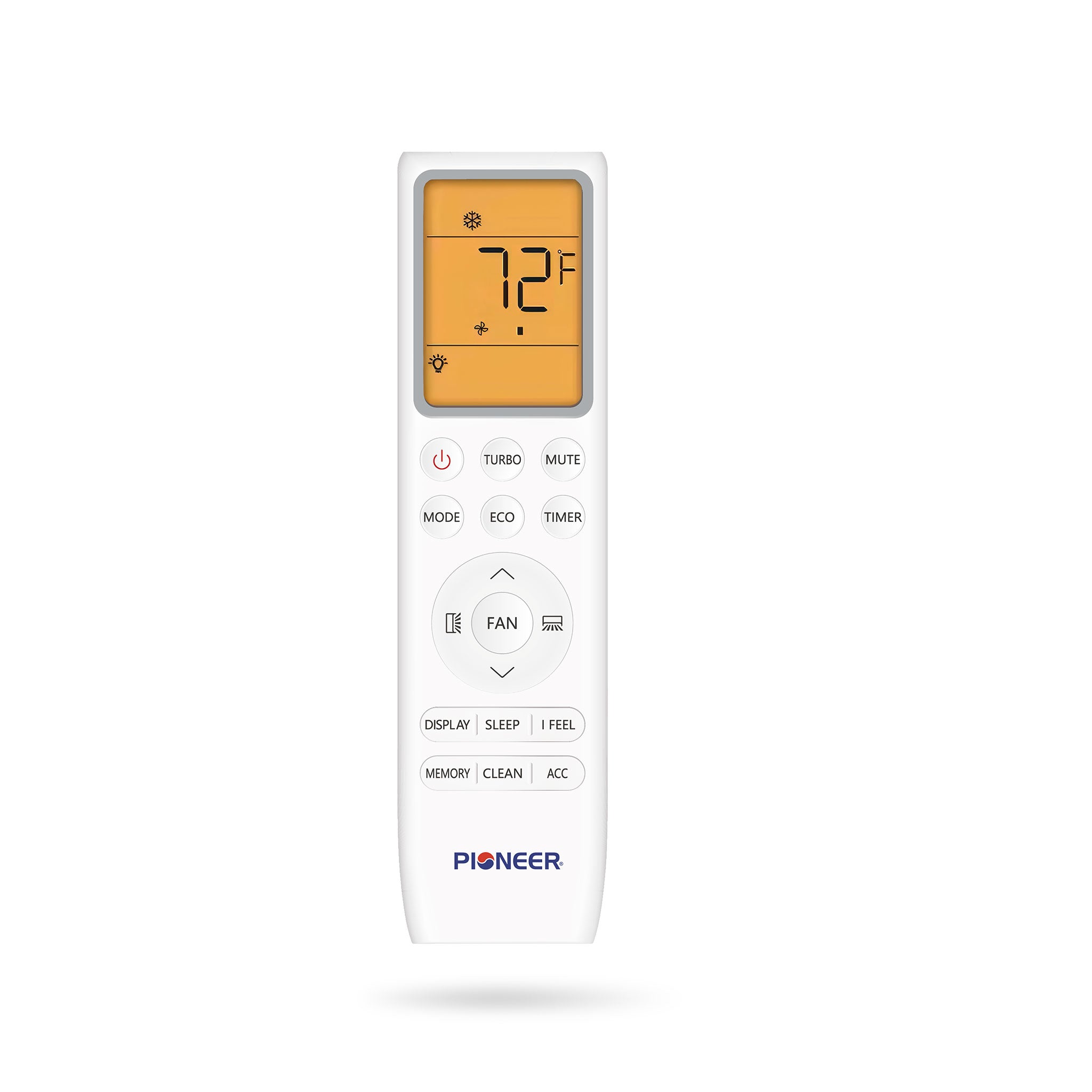

• Remote Functions: ECO, SLEEP, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL

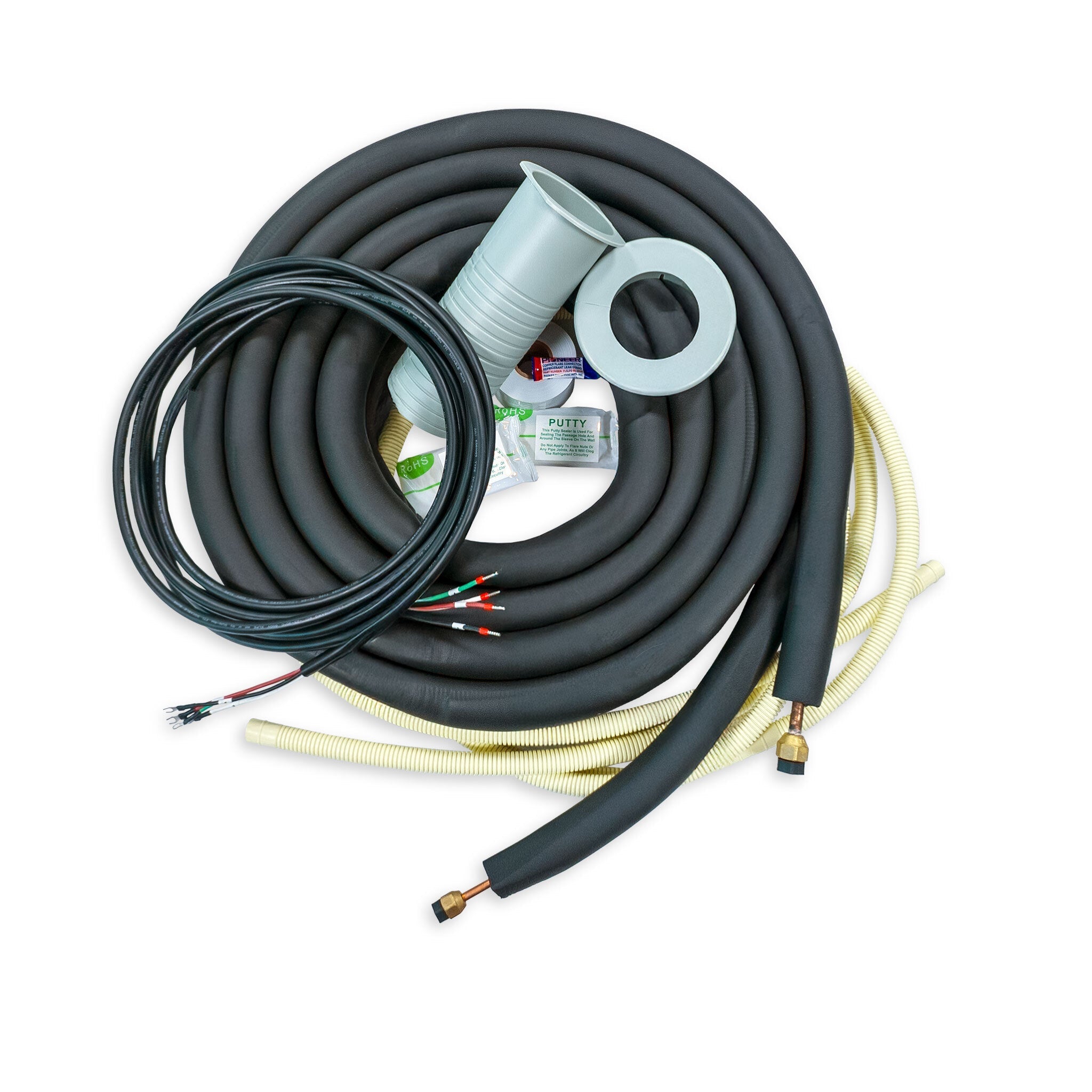

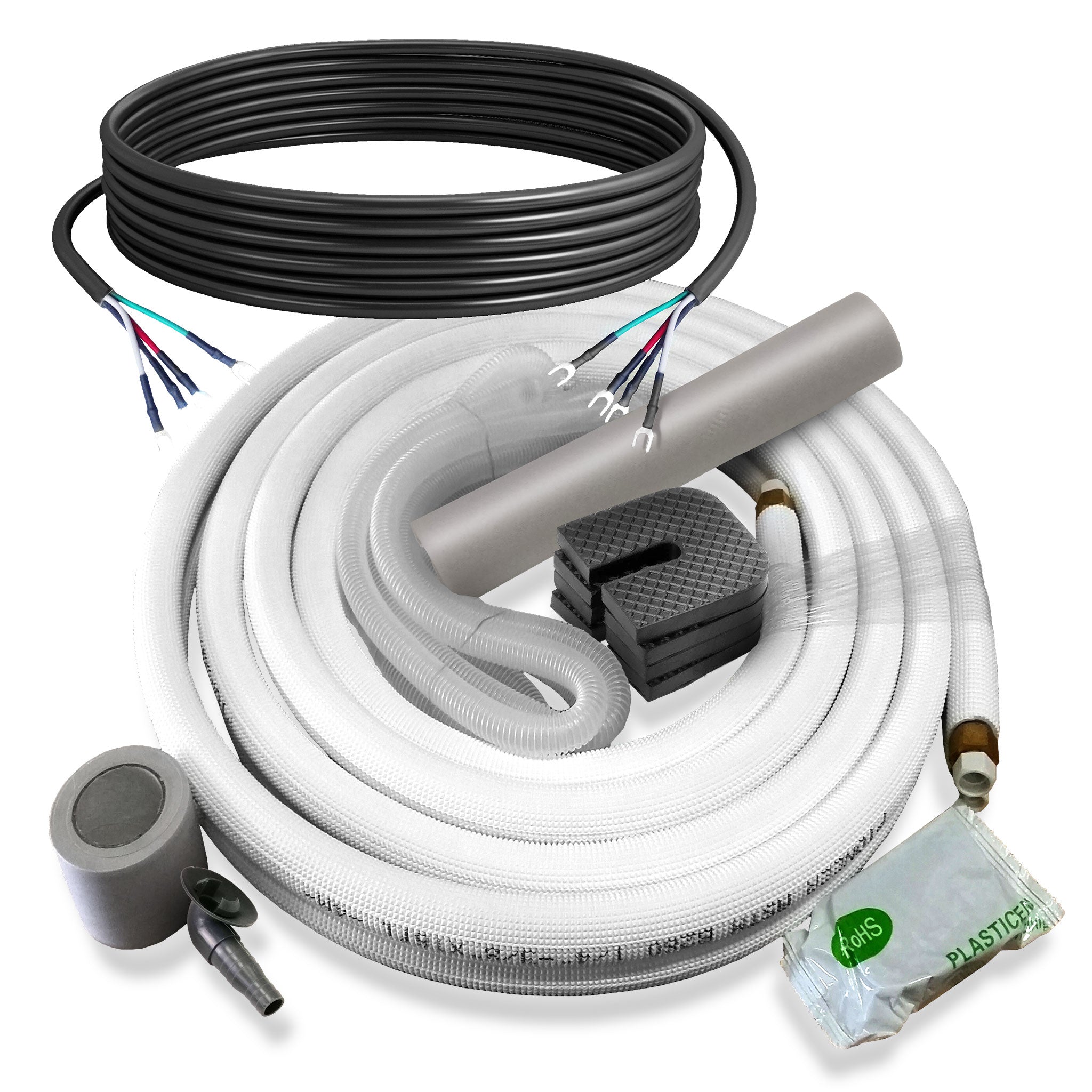

• Variant Options (from screenshot): Include System Installation Kit — Add Standard Copper Lineset, Add EZFlex™ Flexible Pipe, or No Installation Kit Needed. Installation Kit Length — 10 Ft., 16 Ft., 25 Ft., 33 Ft., 50 Ft., or None.

Technical Information & Performance

• AHRI Certificate
• Energy Guide

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 3,200~12,400 BTU/h
  • Cooling SEER2: 25.0 BTU/W.h
  • Cooling EER2: 14.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,100~15,100 BTU/h
  • Heating HSPF2 (Region IV): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 4.0 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 150~350 Sq. F
  • Minimum Room Size: 38 sq ft
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4 x 3/8"
  • AHRI Reference: 217048754

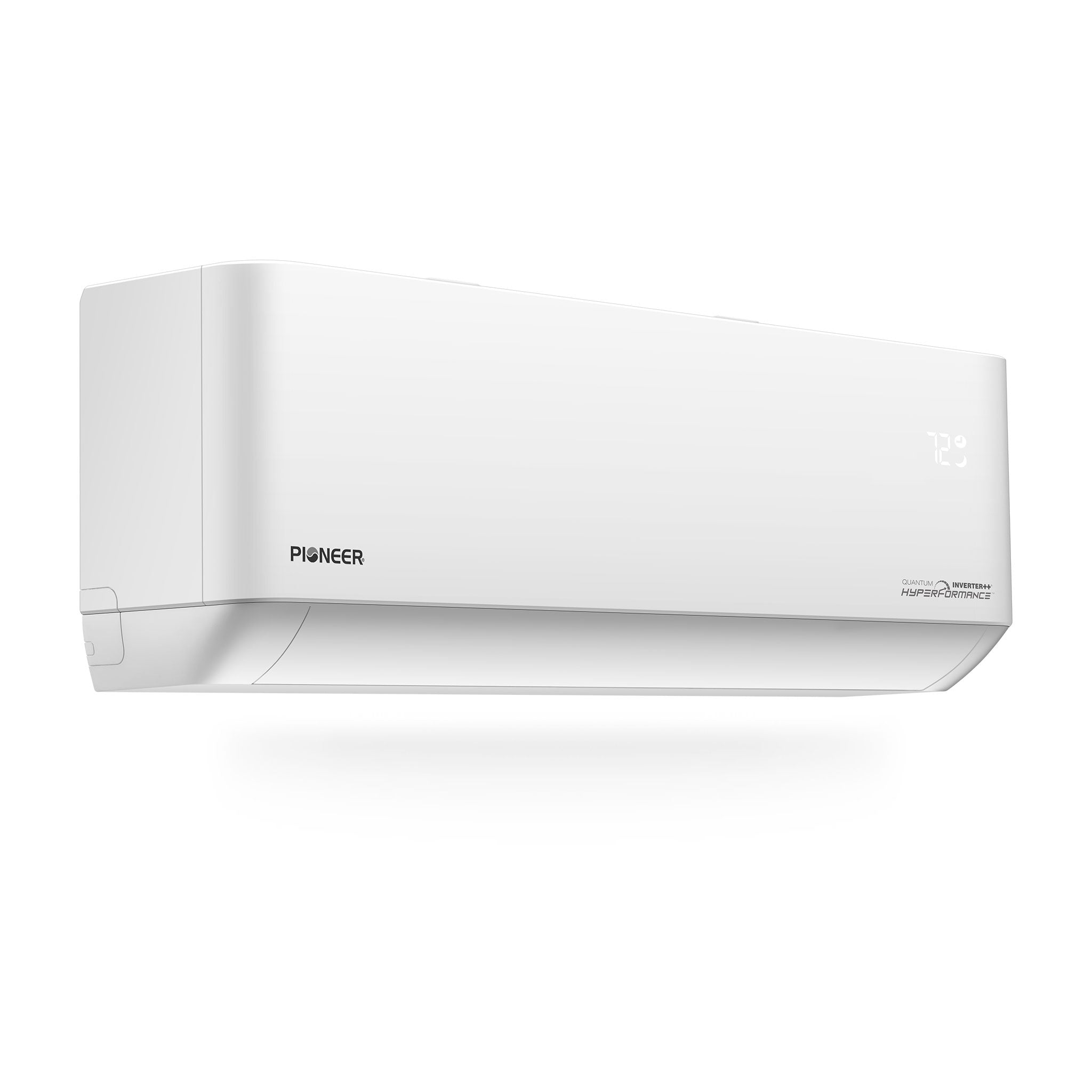

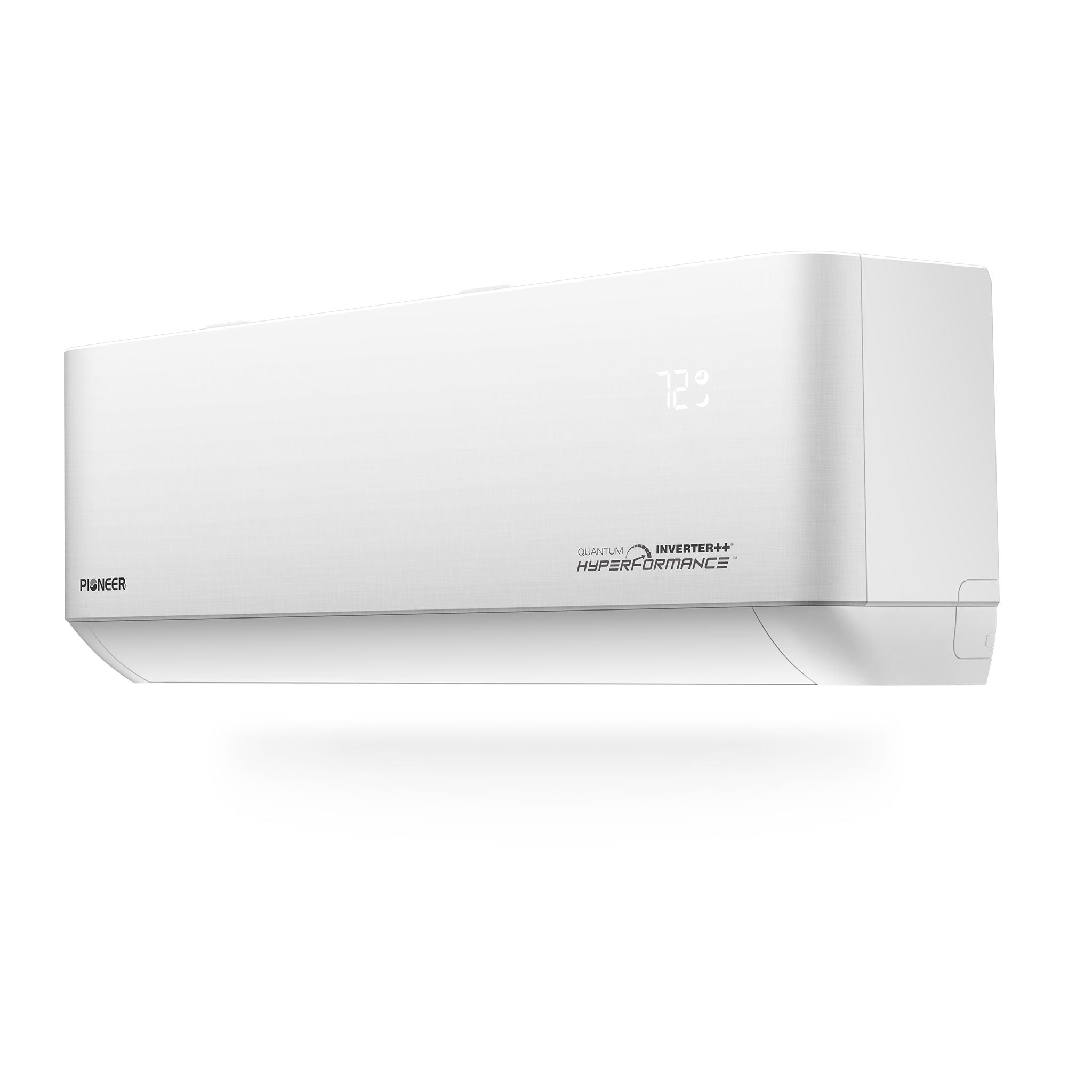

• Indoor Unit
  • Part Number: WT009GLSI25HLH
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282/235/188/153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/33/29/26 dB(A)
  • Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 20.7 / 25.1 lbs.

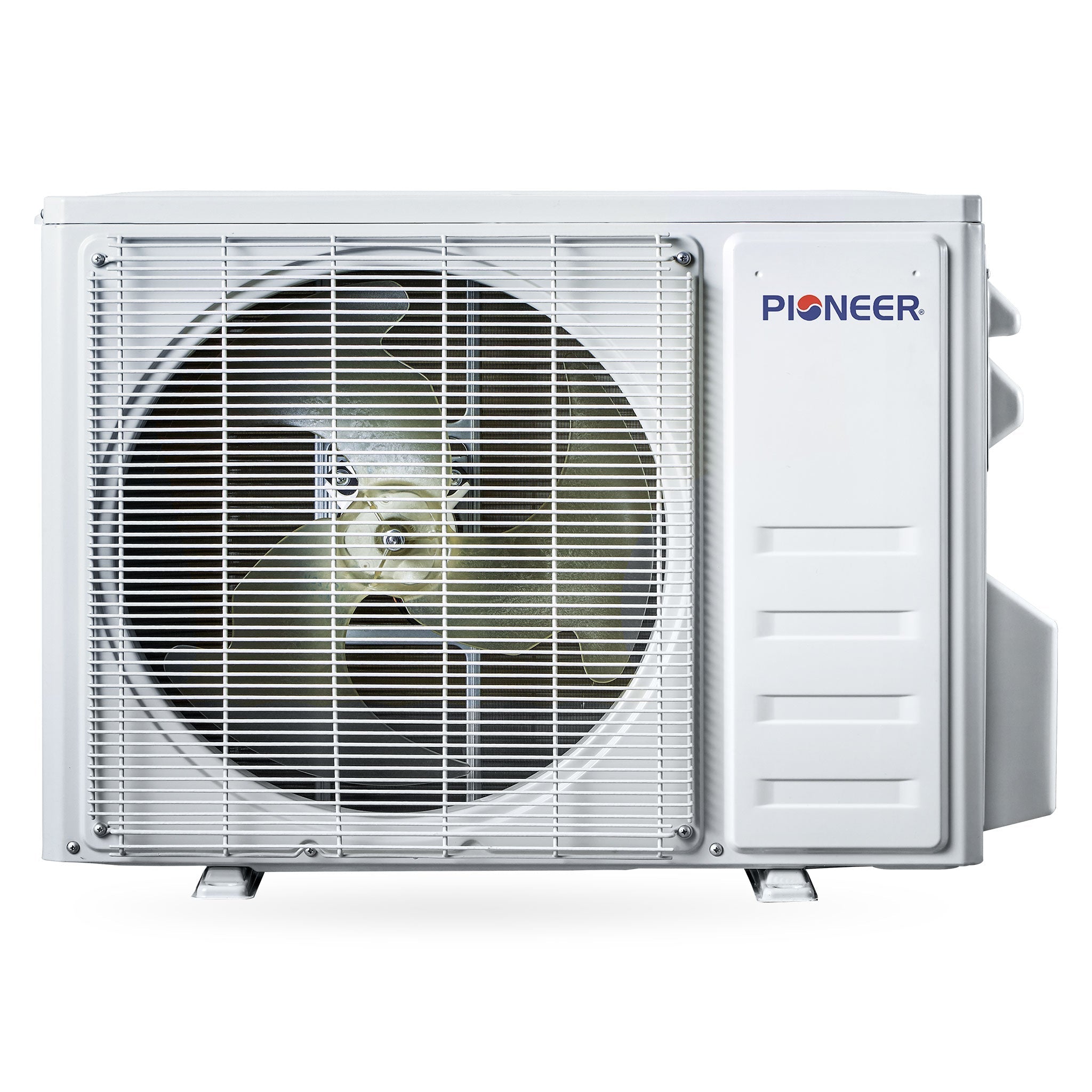

• Outdoor Unit
  • Part Number: YN009GLSI25RPH
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 55 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 54.0 / 60.6 lbs.
