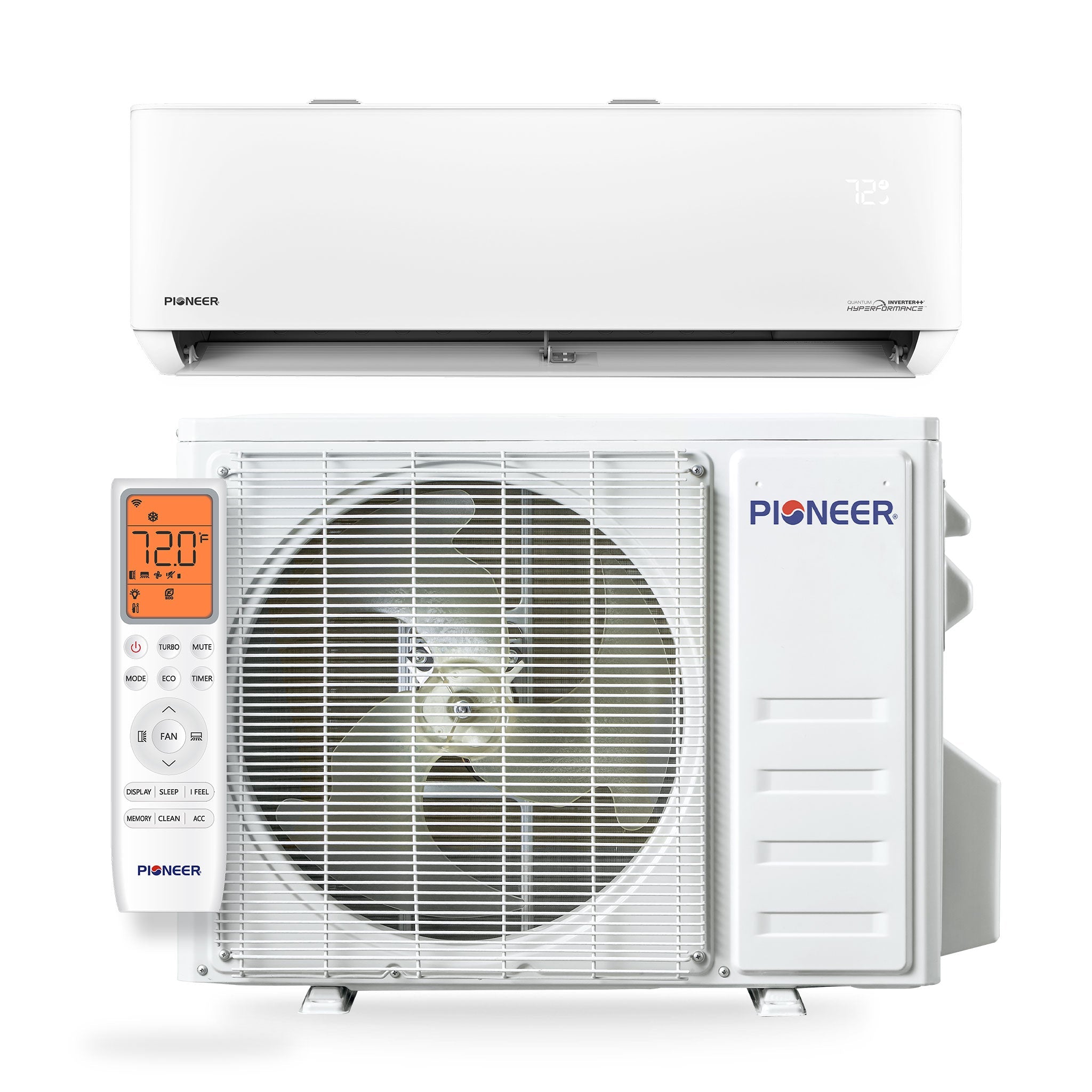

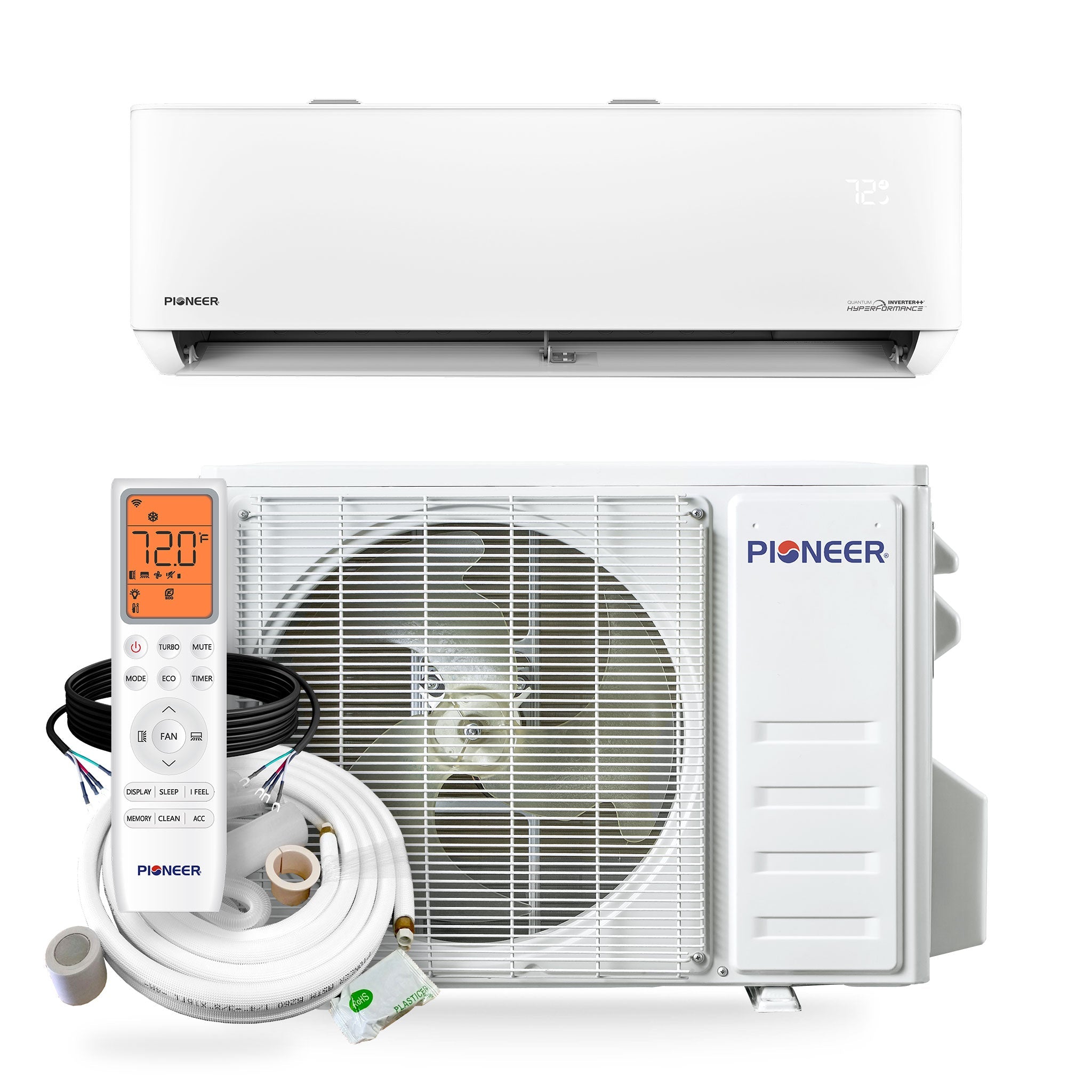

Pioneer® Quantum Hyperformance™ 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set

The Pioneer® Quantum Hyperformance™ 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set delivers ultimate efficiency and reliable comfort in extreme climates. With advanced DC inverter technology, Wi-Fi control via the free Pioneer Airlink app, and eco-friendly R454b refrigerant, it’s engineered for high performance year-round.

Specifications

• Cooling Capacity: 24,000 BTU/H (23 SEER2 / 12 EER2)

• Heating Capacity: 24,000 BTU/H (10.0 HSPF2 / 3.5 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Mounting: High Wall-Mounted ductless system

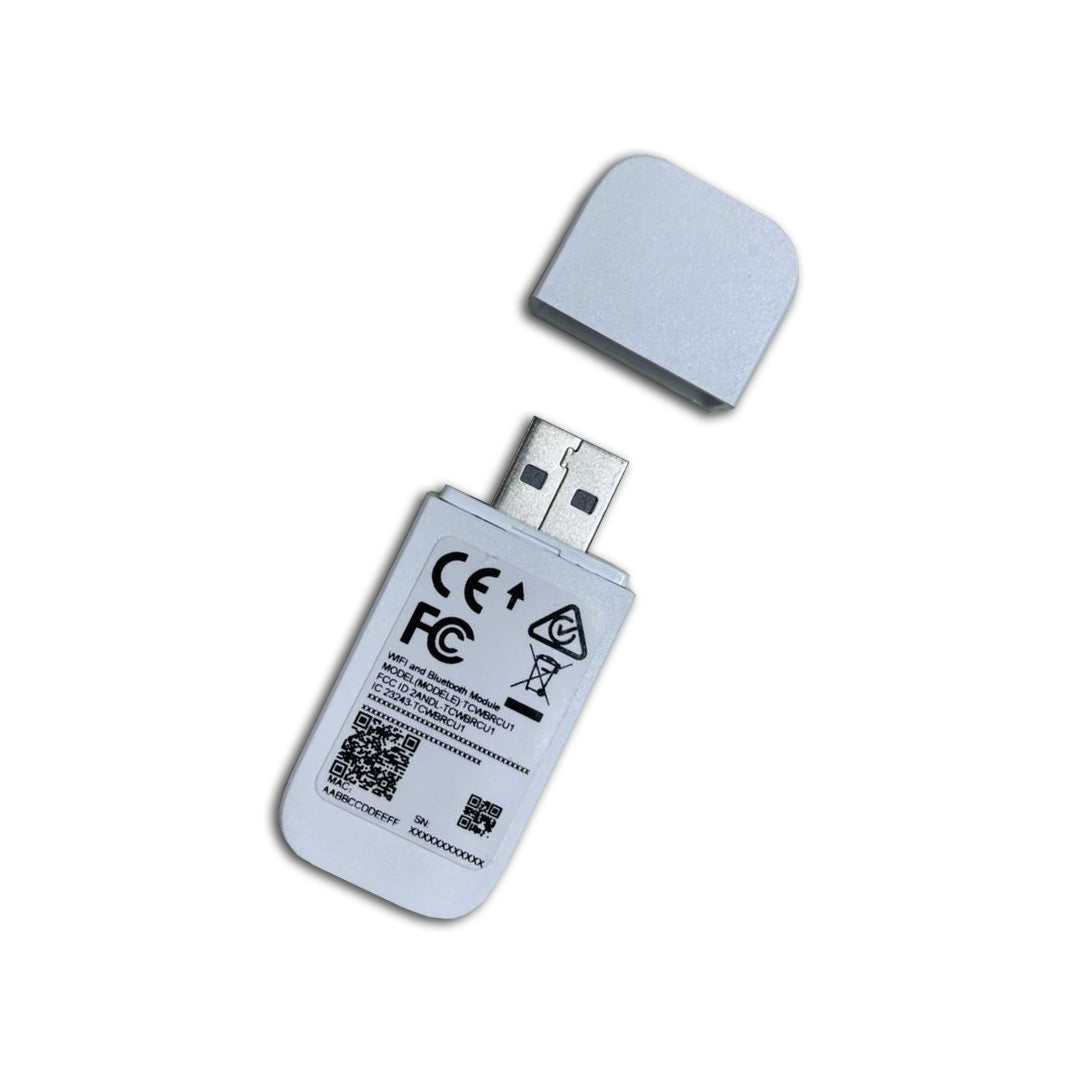

• Connectivity: Wi-Fi enabled; Pioneer Airlink app control

• Technology: Variable-Speed DC Inverter

• Refrigerant: Factory-precharged R454b

• Extreme Climate Operation: −22°F heating / 131°F cooling

• Recommended Room Size: 750–1,000 Sq.F (Minimum 63 Sq.F)

• Minimum Installation Height: 6 ft

• Piping Diameter: 1/4" × 5/8"

• AHRI Reference: 217048757

Features

• Comfort Modes: Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: Flexible install options

• Washable, Reusable Filters: Easy maintenance

• Dual-Axis Airflow: Motorized up-down and left-right louvers

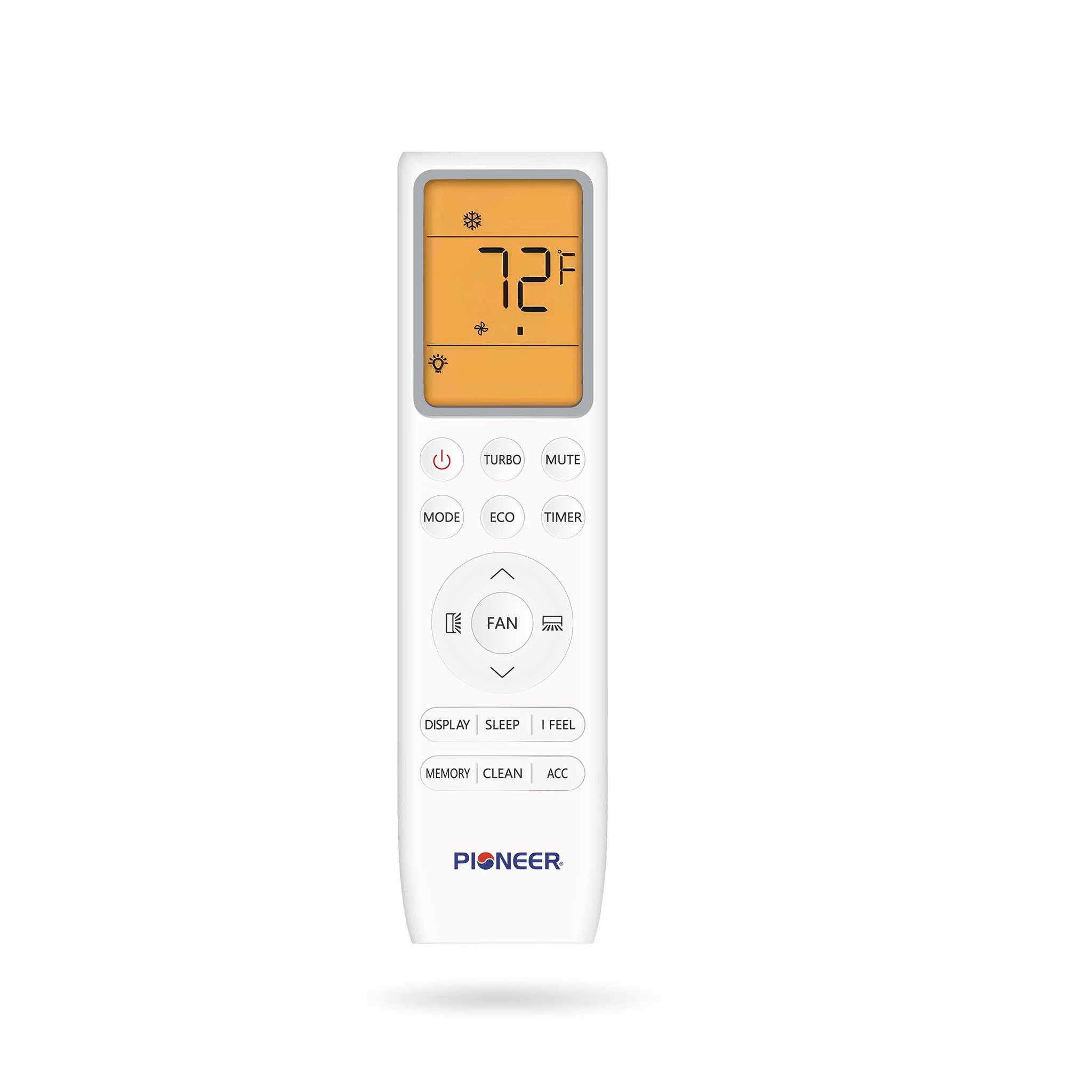

• Full-Function Remote: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, and IFEEL

Installation Options

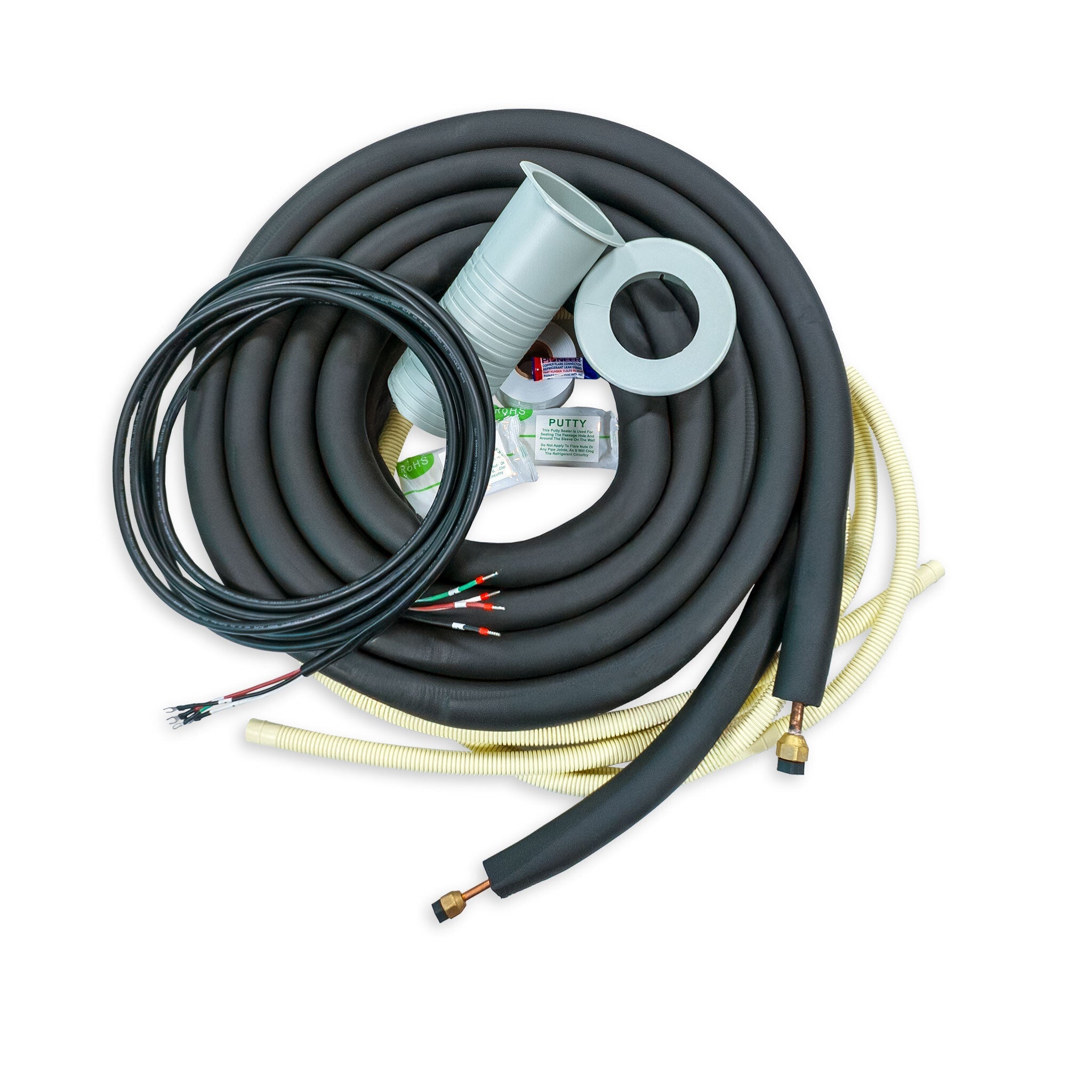

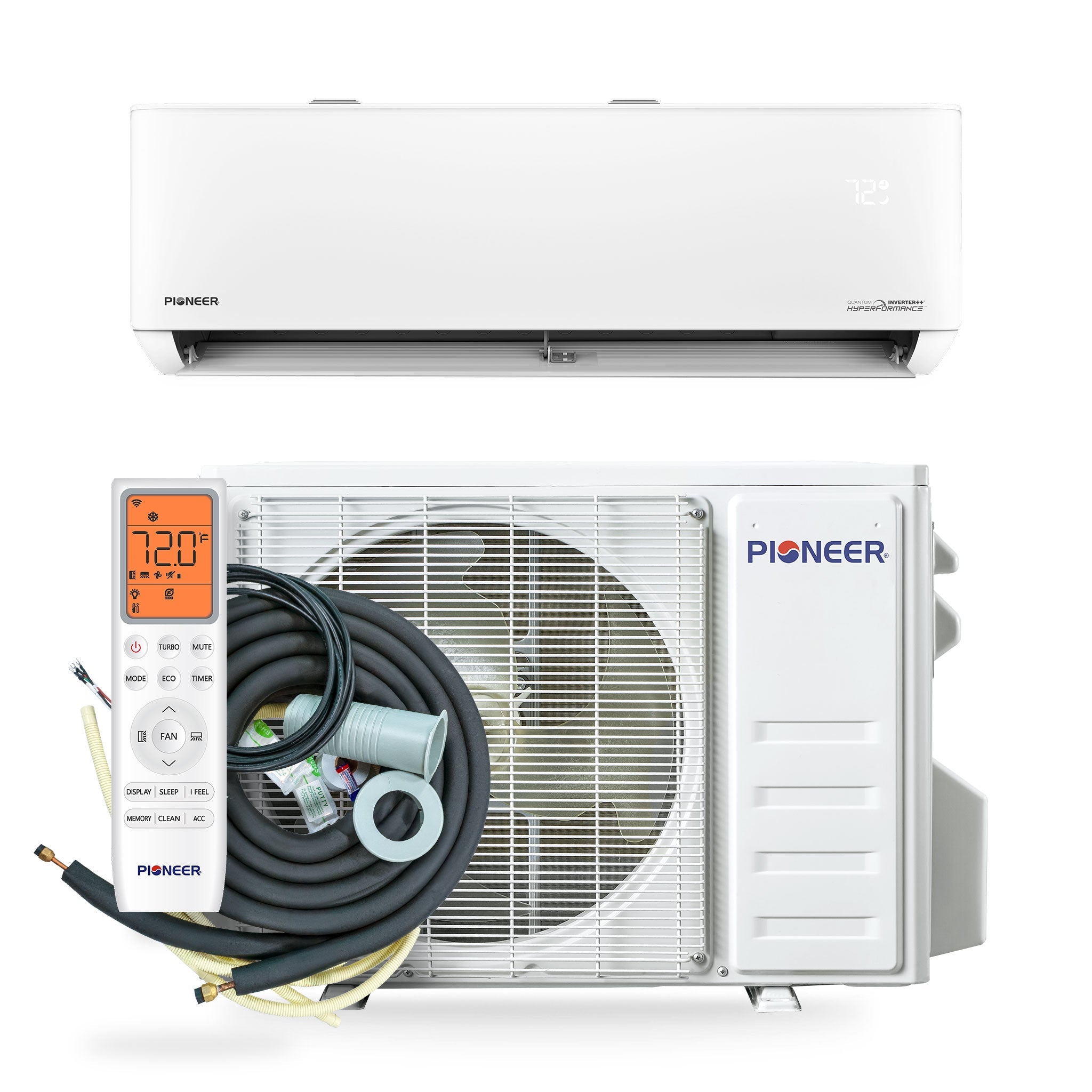

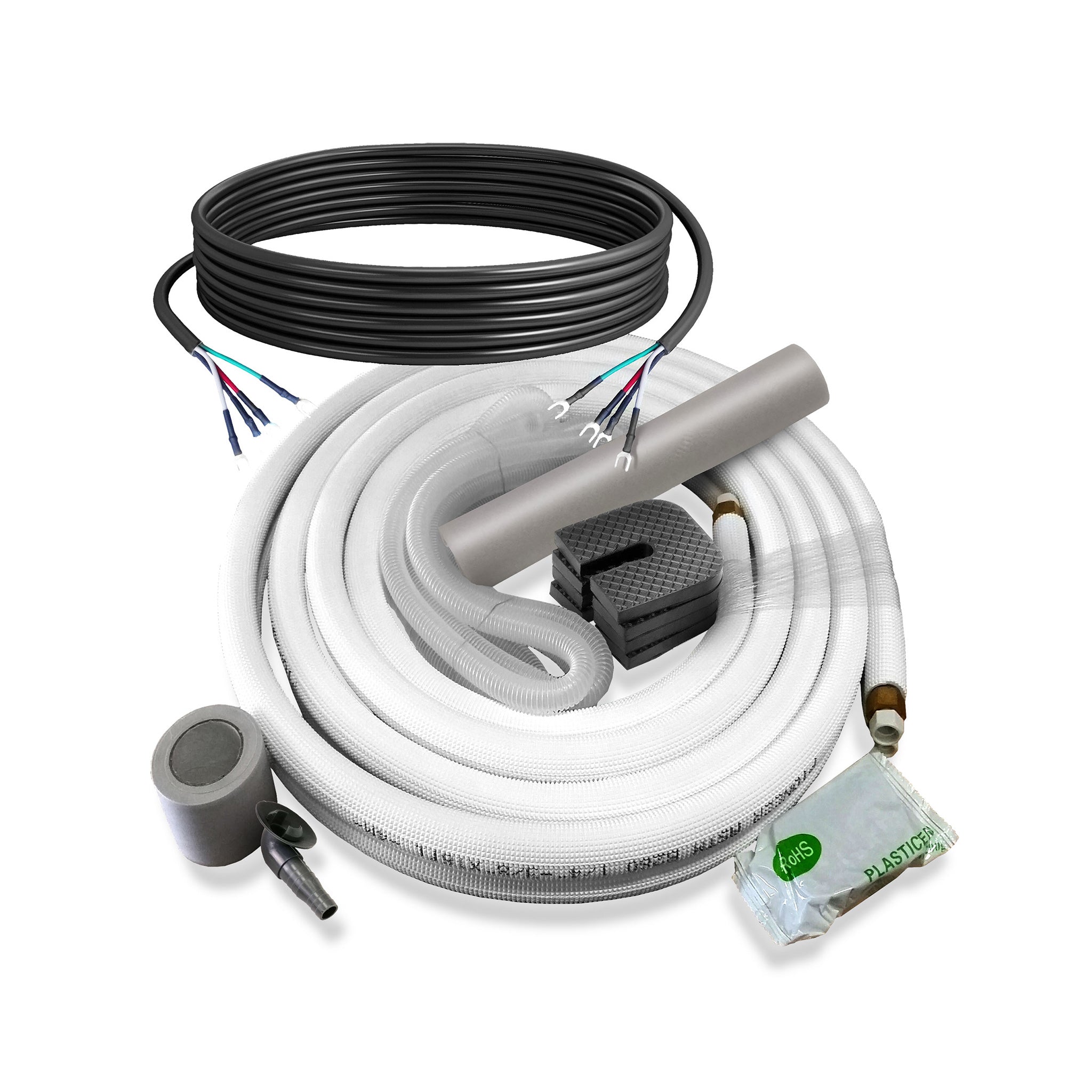

• Include System Installation Kit: Add Standard Copper Lineset, Add EZFlex™ Flexible Pipe, or No Installation Kit Needed

• Installation Kit Length: 10 Ft., 16 Ft., 25 Ft., 33 Ft., 50 Ft., or None

Technical Information & Performance

• AHRI Certificate
• Energy Guide

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 4,800~25,200 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.0 BTU/W.h
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 4,800~26,900 BTU/h
  • Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.5 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 750~1,000 Sq.F
  • Minimum Room Size: 63 Sq.F
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4 × 5/8"
  • AHRI Reference: 217048757

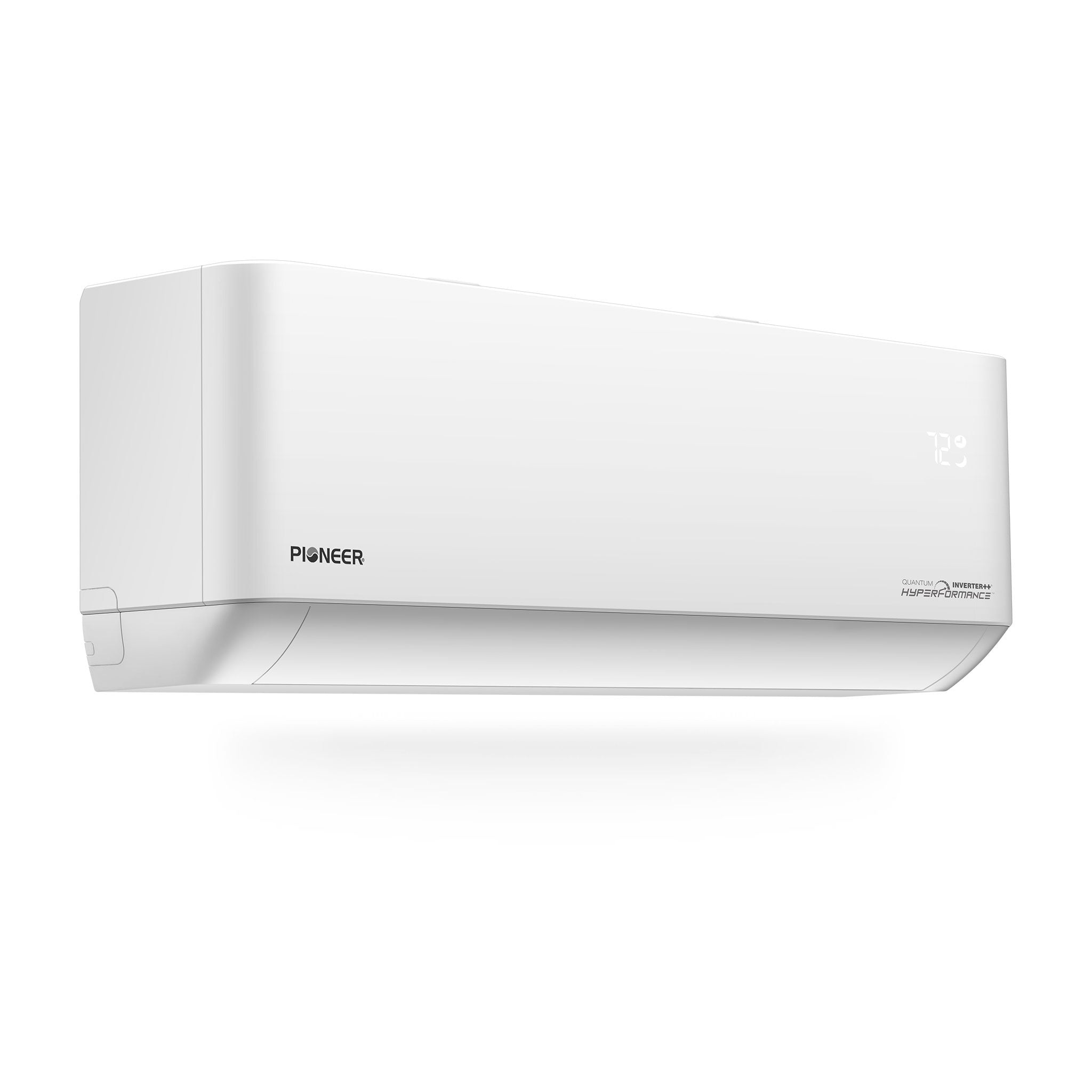

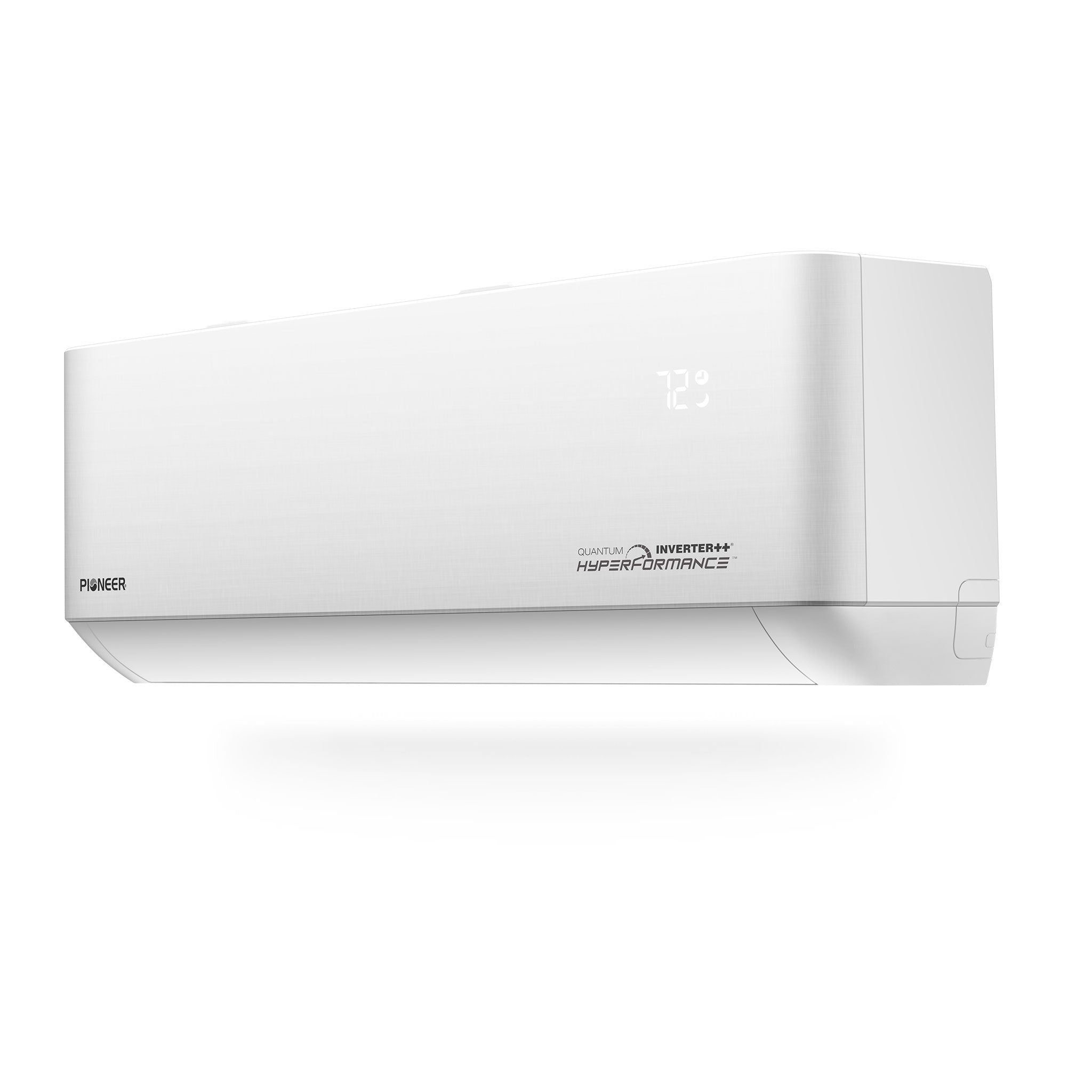

• Indoor Unit
  • Part Number: WT024GLSI25HLH
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 49/47/42/37/32 dB(A)
  • Product Dimensions (WDH): 43"-1/8 × 8"-3/4 × 13"-1/8
  • Carton Dimensions (WDH): 45"-7/8 × 11"-5/8 × 16"
  • Net / Gross Weight: 30.9 / 35.3 lbs.

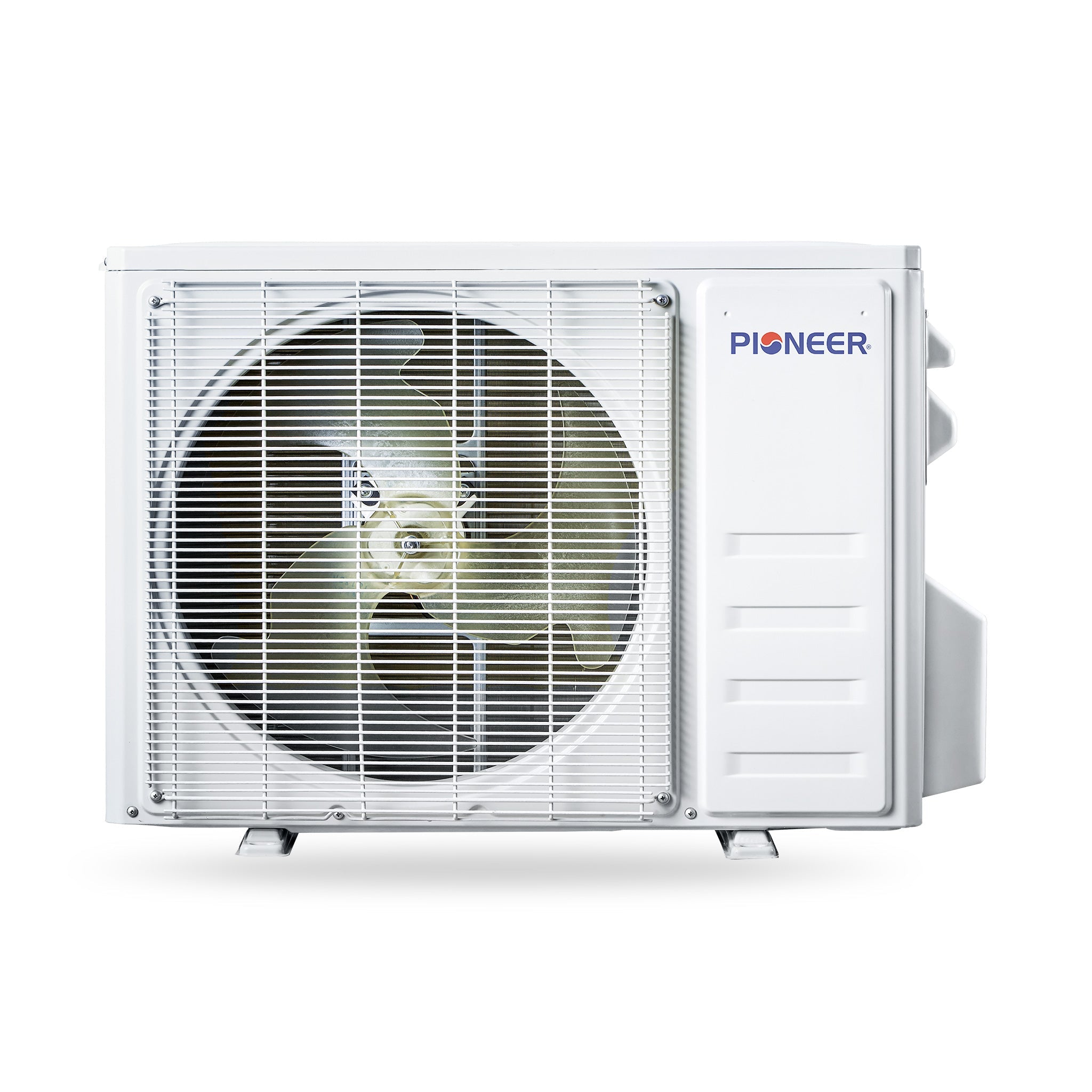

• Outdoor Unit
  • Part Number: YN024GLSI25RPH
  • Breaker Needed: 30A (double-pole)
  • Sound Level: 61 dB(A)
  • Net Dimensions (WDH): 38"-1/2 × 16"-5/8 × 31"-5/8
  • Carton Dimensions (WDH): 40"-1/4 × 18"-7/8 × 31"-7/8
  • Net / Gross Weight: 108.0 / 116.8 lbs.

Dimension Chart
