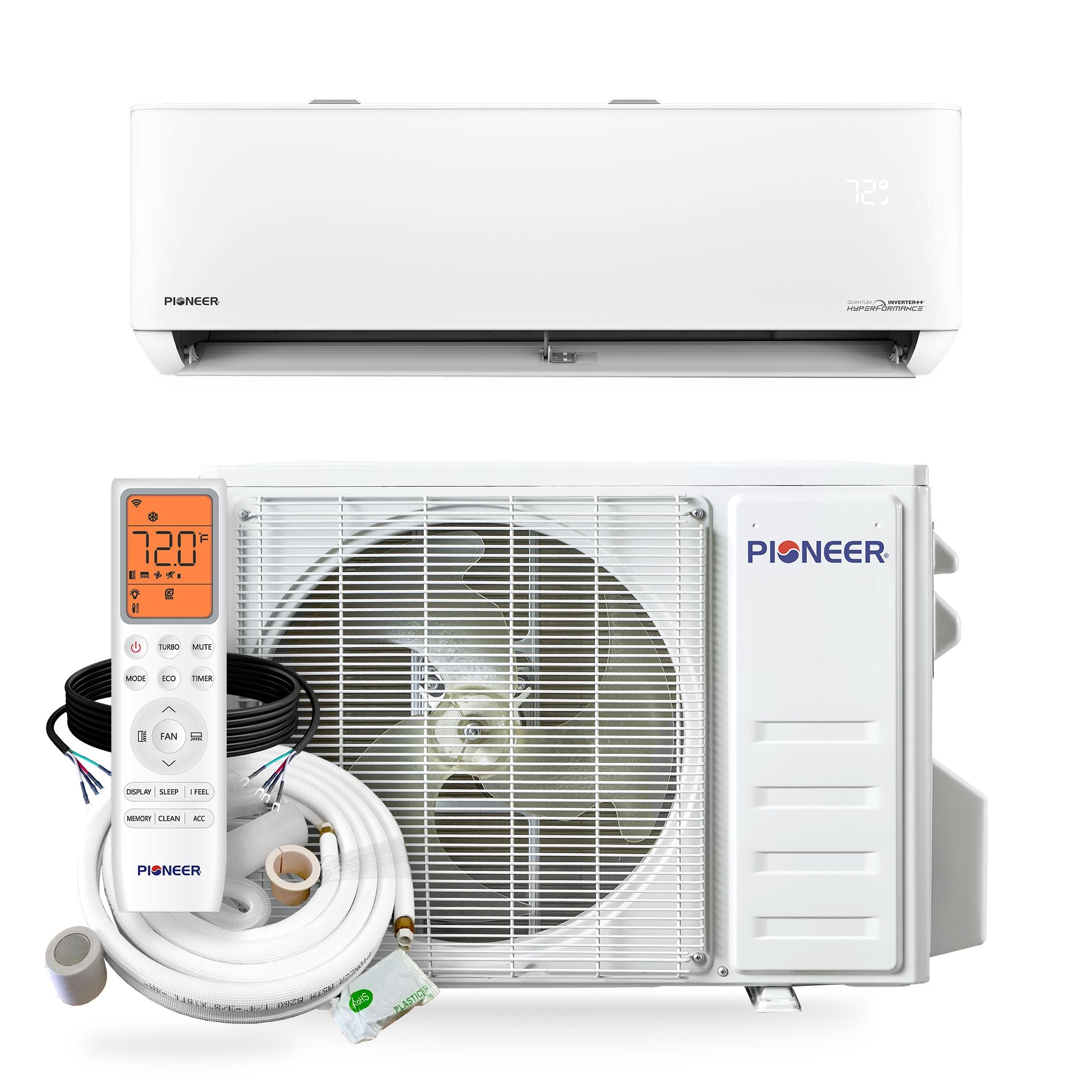

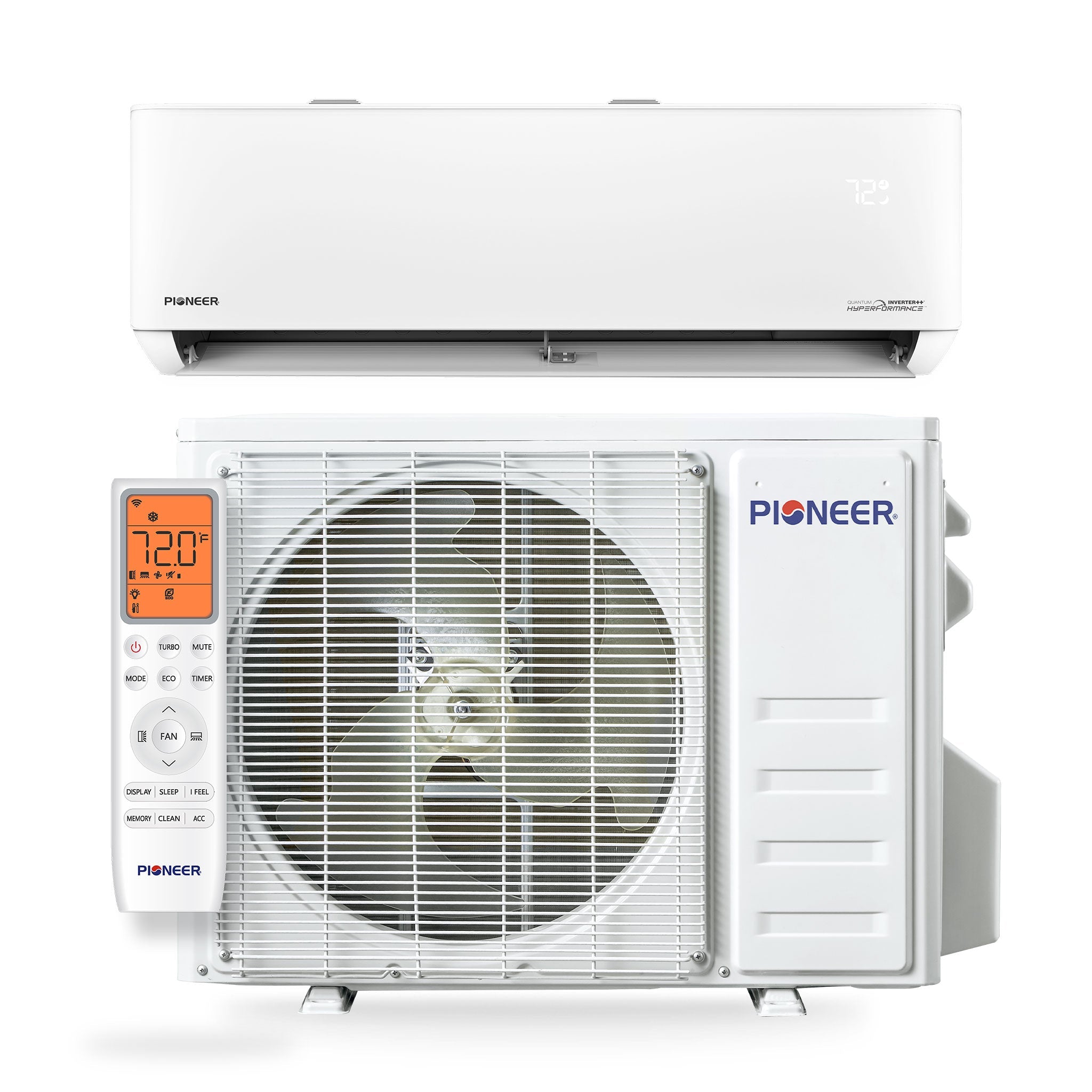

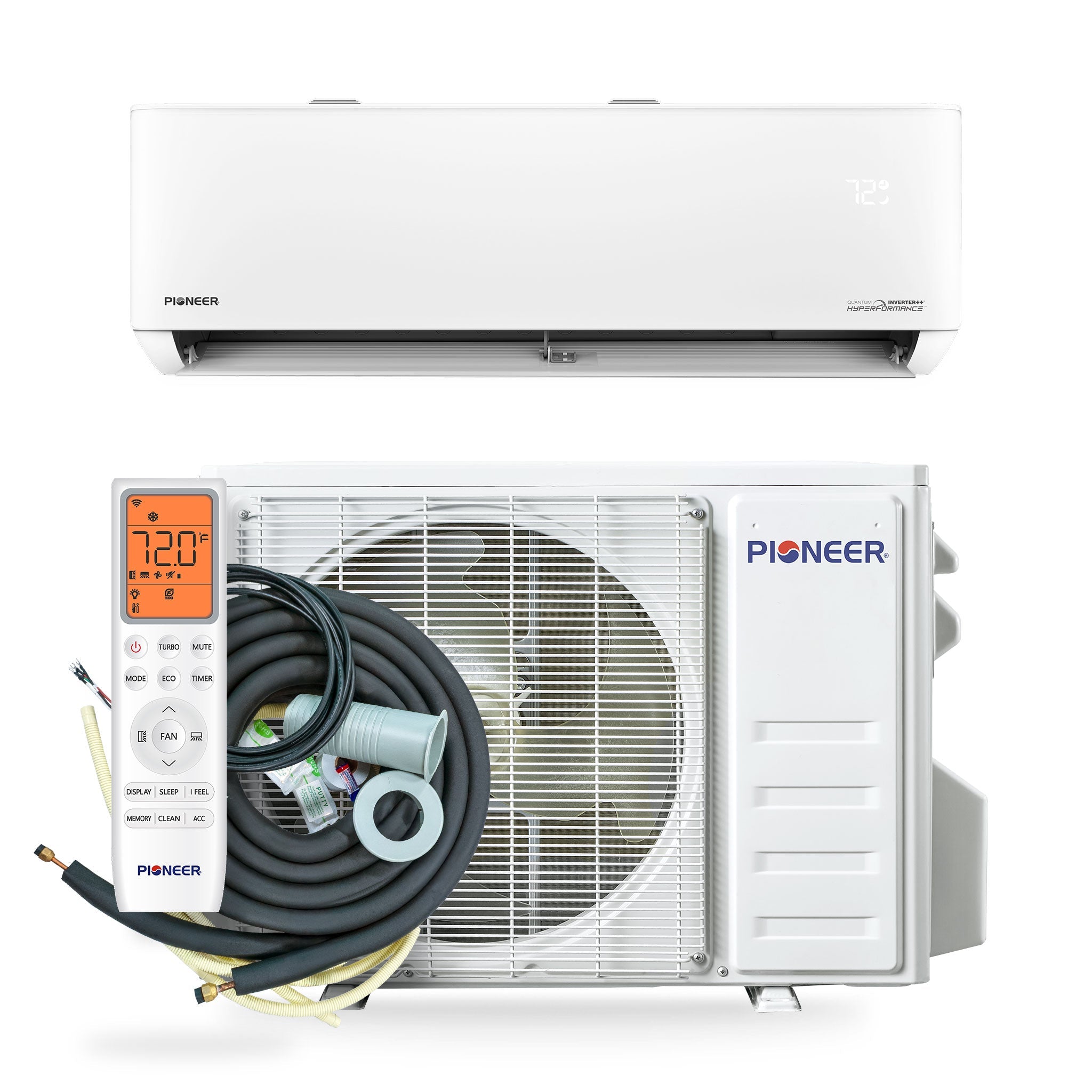

Pioneer® Quantum Hyperformance™ 18,000 BTU 23.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set

The Pioneer® Quantum Hyperformance™ 18,000 BTU 23.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set delivers ultimate efficiency and comfort in any climate. Designed for high-performance heating and cooling, this wall-mounted system features advanced DC inverter technology, smart Wi-Fi control, and extreme climate capability. Ideal for residential or light commercial use, it ensures quiet, efficient, and customizable comfort all year round.

Specifications

• Cooling Capacity: 18,000 BTU/H (23.5 SEER2 / 12.5 EER2)

• Heating Capacity: 18,000 BTU/H (10.0 HSPF2 / 3.8 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Refrigerant Type: R454b (Environmentally Friendly)

• Operation Range: Heating down to -22°F / Cooling up to 131°F

• Recommended Room Size: 500–750 sq. ft.

• Mount Type: High Wall-Mounted

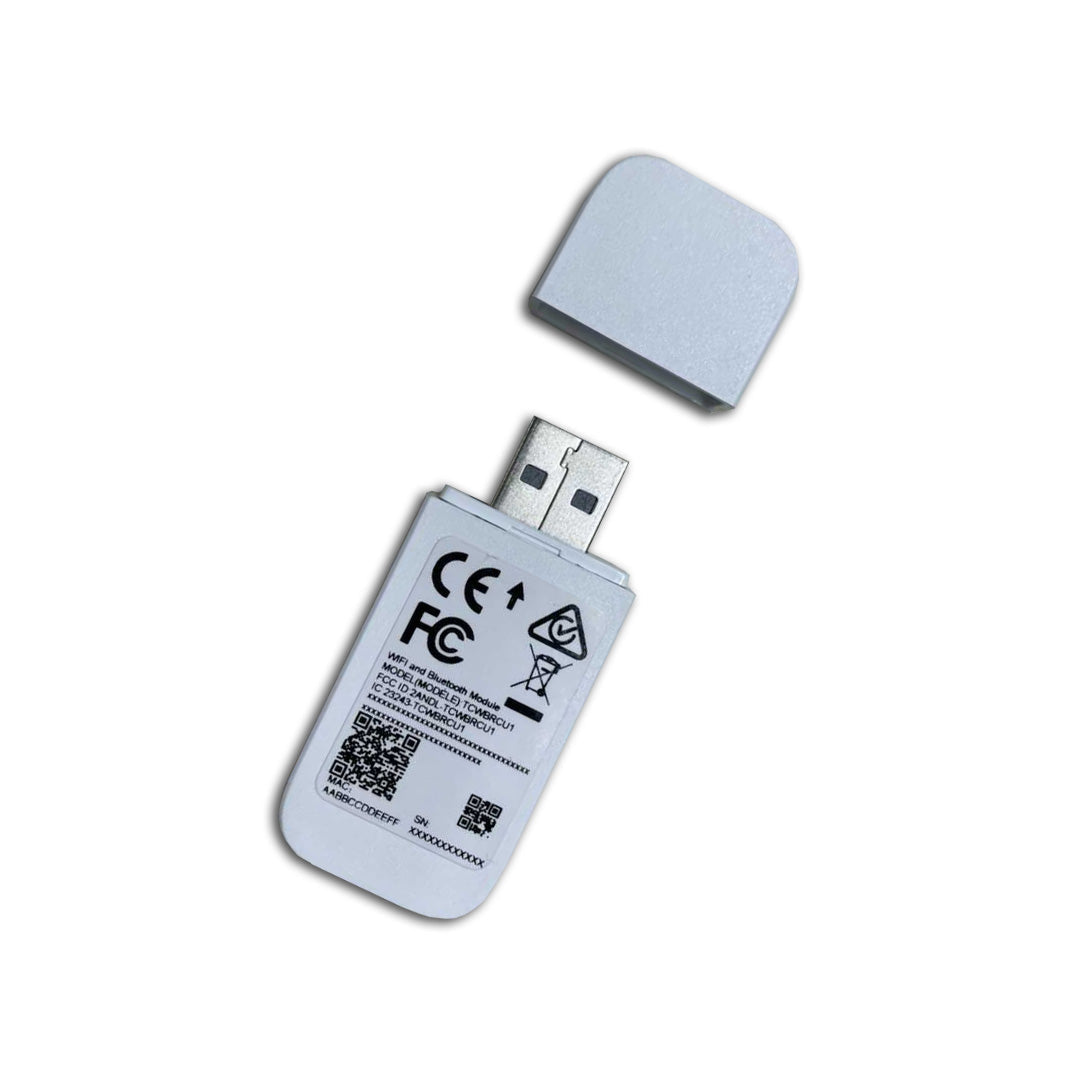

• Wi-Fi Control: Yes, via Pioneer Airlink App

• Inverter Technology: Variable-Speed DC Inverter

• AHRI Reference: 217048756

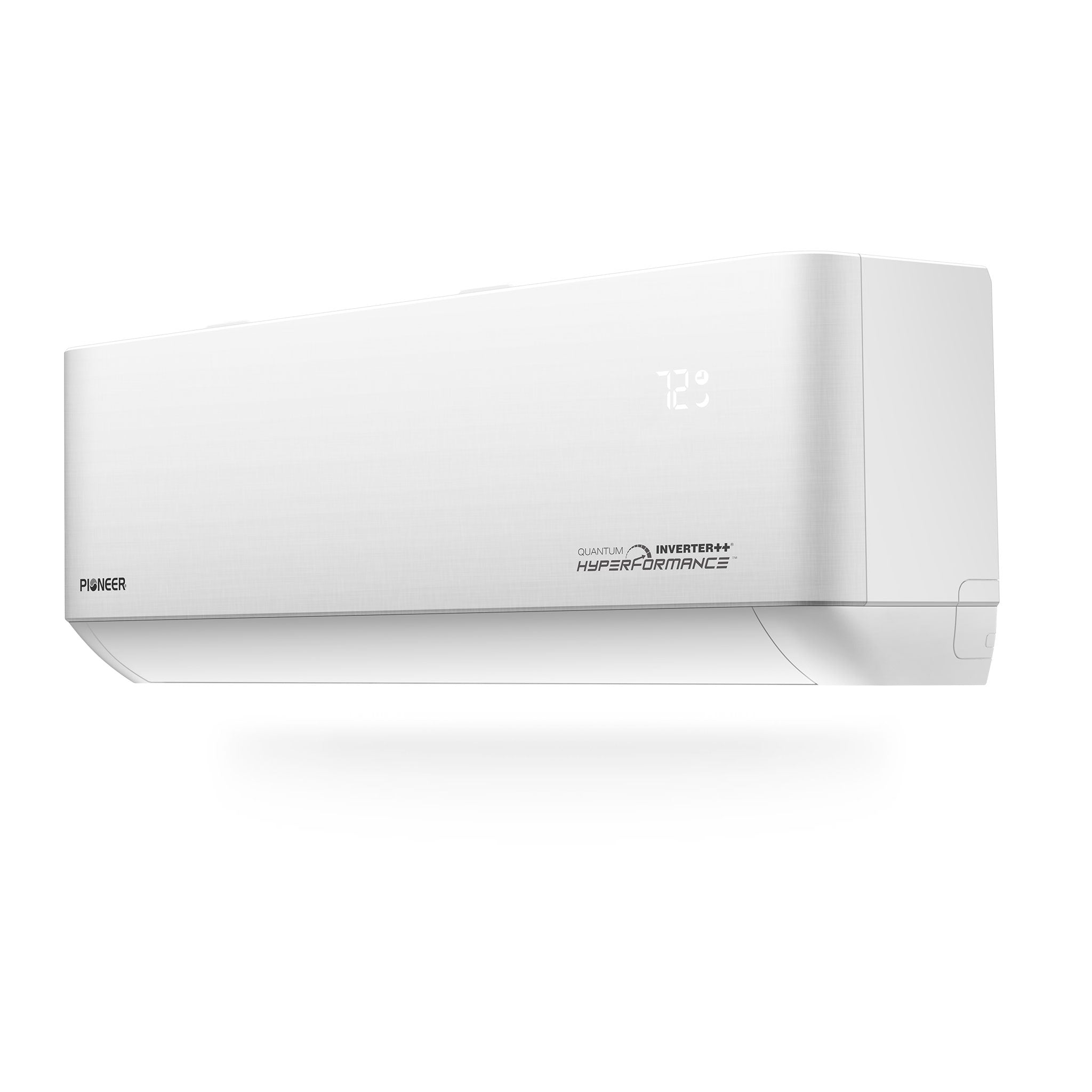

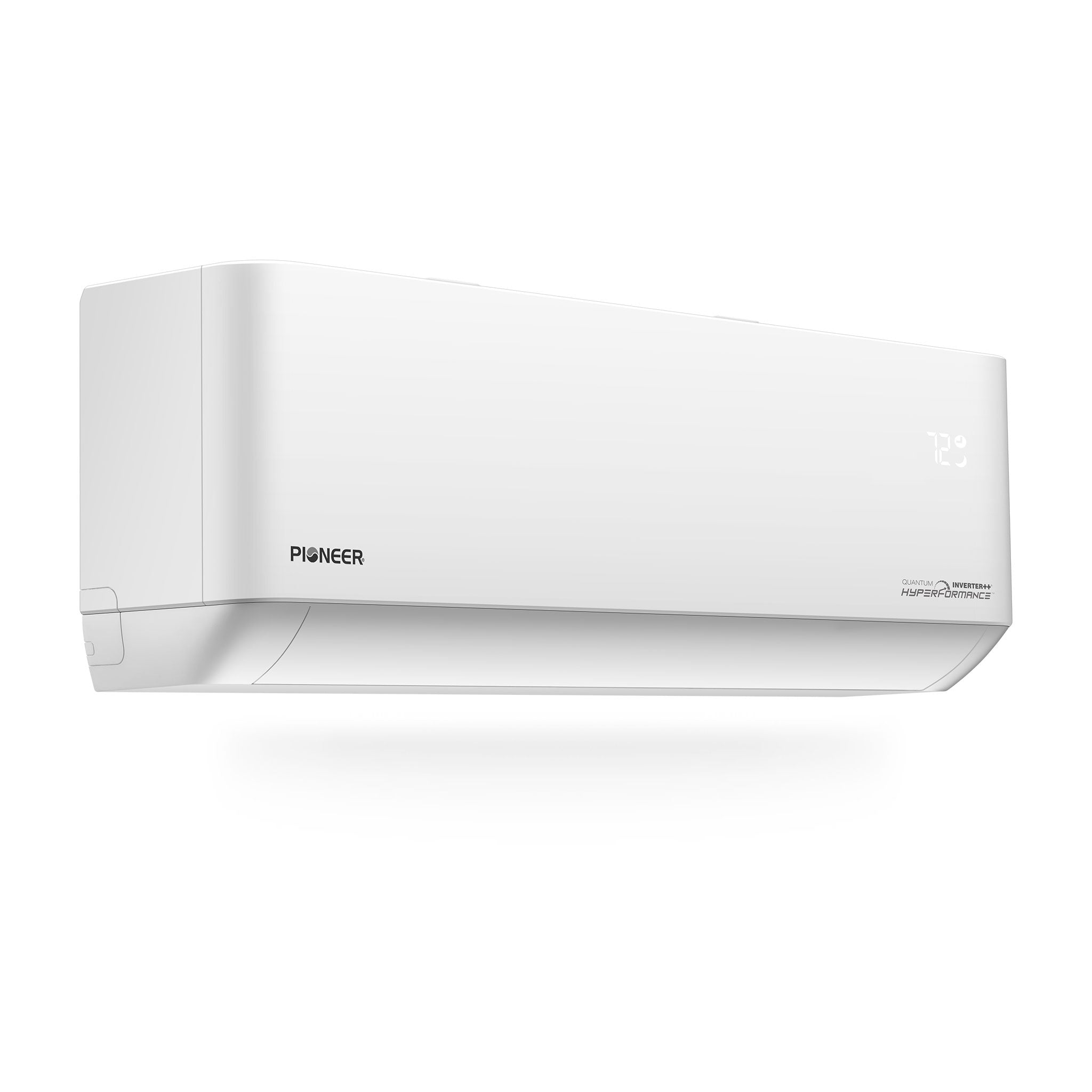

Indoor Unit

• Model: WT018GLSI25HLH

• Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM

• Sound Level (Turbo–Mute): 48 / 45 / 40 / 37 / 34 dB(A)

• Dimensions (W×D×H): 43⅛" × 8¾" × 13"

• Weight (Net / Gross): 30.9 / 35.3 lbs

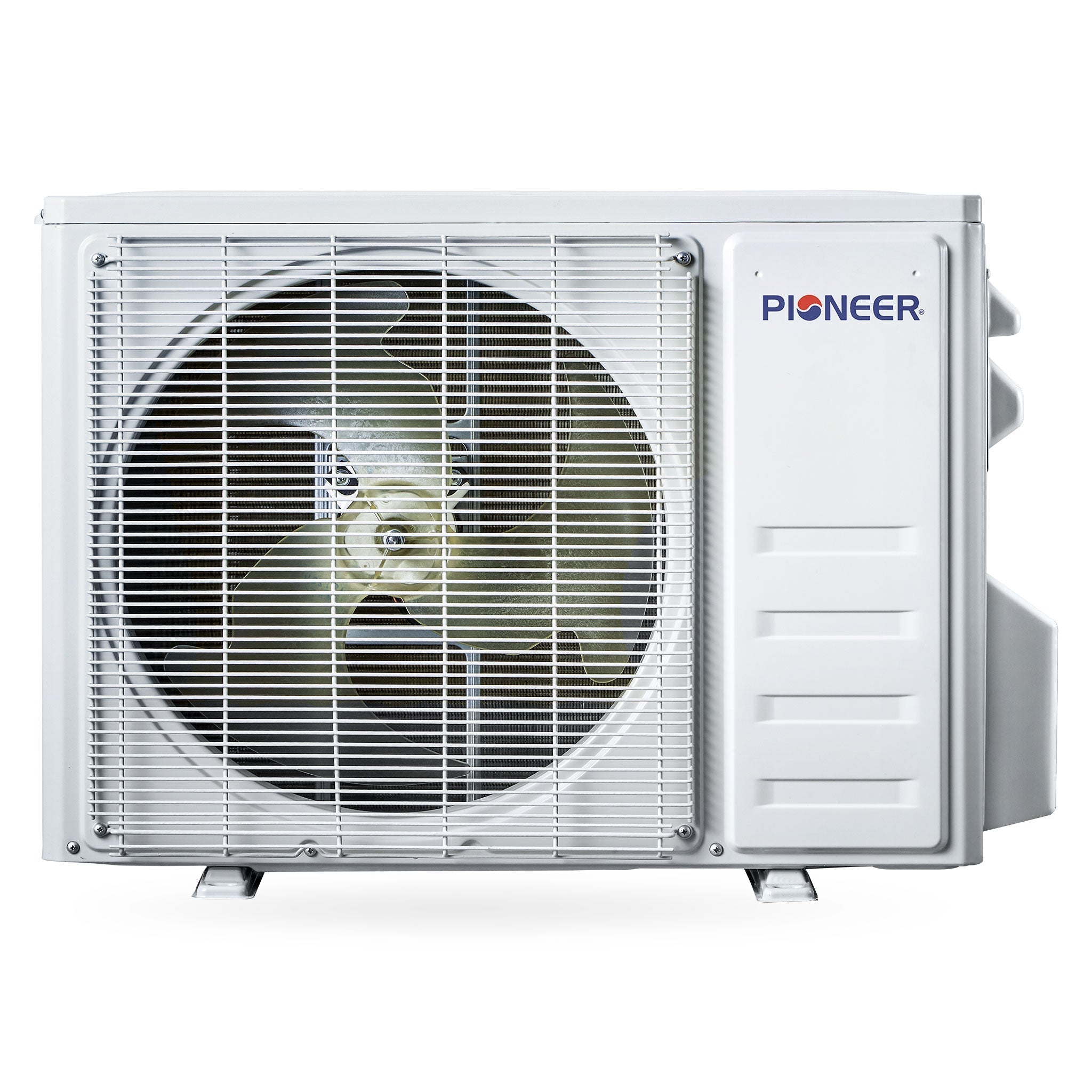

Outdoor Unit

• Model: YN018GLSI25RPH

• Breaker Required: 20A Double-Pole

• Sound Level: 58 dB(A)

• Dimensions (W×D×H): 36½" × 15" × 27½"

• Weight (Net / Gross): 93.7 / 102.5 lbs

Features

• All-Season Heat Pump: Cooling, Heating, Dry, and Ventilation Modes

• Dual-Drainage System: Flexible installation options

• Air Filtration: Washable, Reusable Filters for long-term use

• Dual-Axis Airflow: Motorized up-down and left-right louvers for complete air coverage

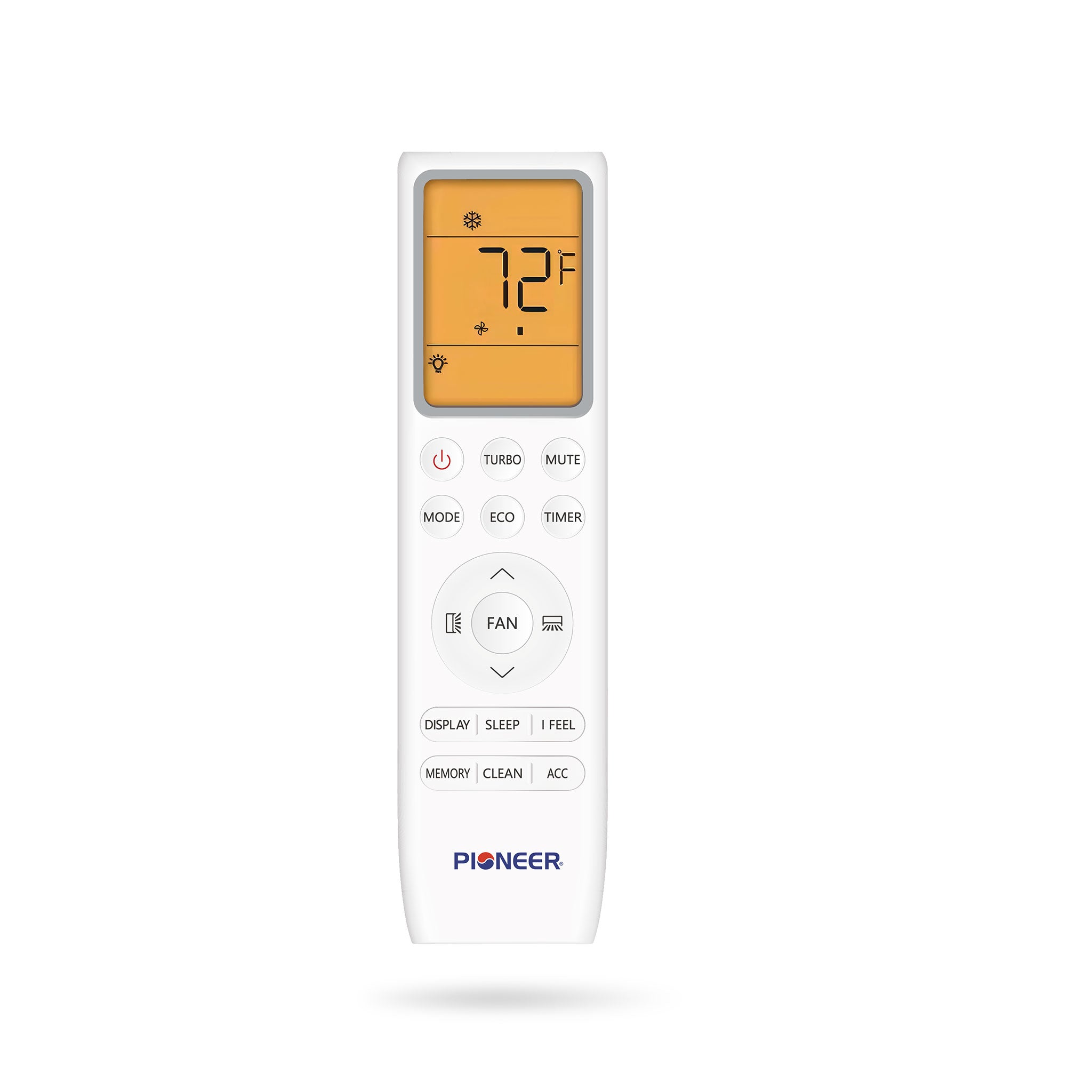

• Smart Remote Control: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, and IFEEL Functions

• Wi-Fi Enabled: Control anytime via the Pioneer Airlink App

Technical Documents

• AHRI Certificate
• Energy Guide

Dimensions

• Indoor Unit (W×D×H): 43⅛" × 8¾" × 13"

• Outdoor Unit (W×D×H): 36½" × 15" × 27½"
