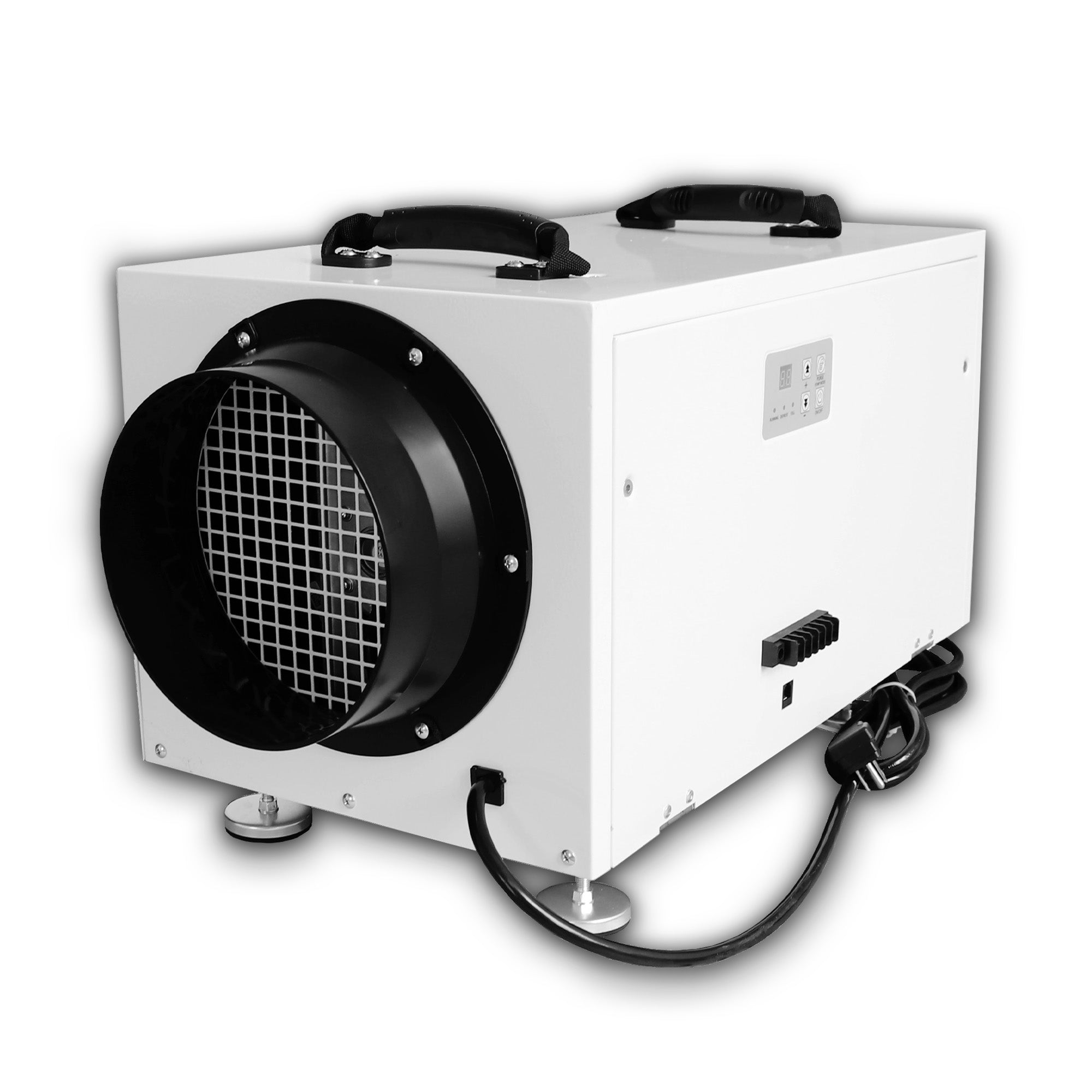

Pioneer® QHD070 115V 70-Pint Per Day Whole-House Commercial Grade Ductable High Performance Dehumidifier

The Pioneer® QHD070 115V 70-Pint Per Day Whole-House Commercial Grade Ductable High Performance Dehumidifier is designed for powerful, efficient moisture control across the entire home. This plug-in, high-performance unit delivers dependable dehumidification with smart protections, flexible controls, and durable filtration for sustained comfort and convenience.

Specifications

• Moisture Removal: 70 PPD @ 80°F/60% RH; 100 PPD @ 86°F/80% RH; 135 PPD @ 90°F/90% RH

• Airflow: 280 CFM nominal (optional +35 CFM boost)

• Power Supply: 110/120VAC (plug-in), Rated Input 747W / 6.5A

• Refrigerant: R32

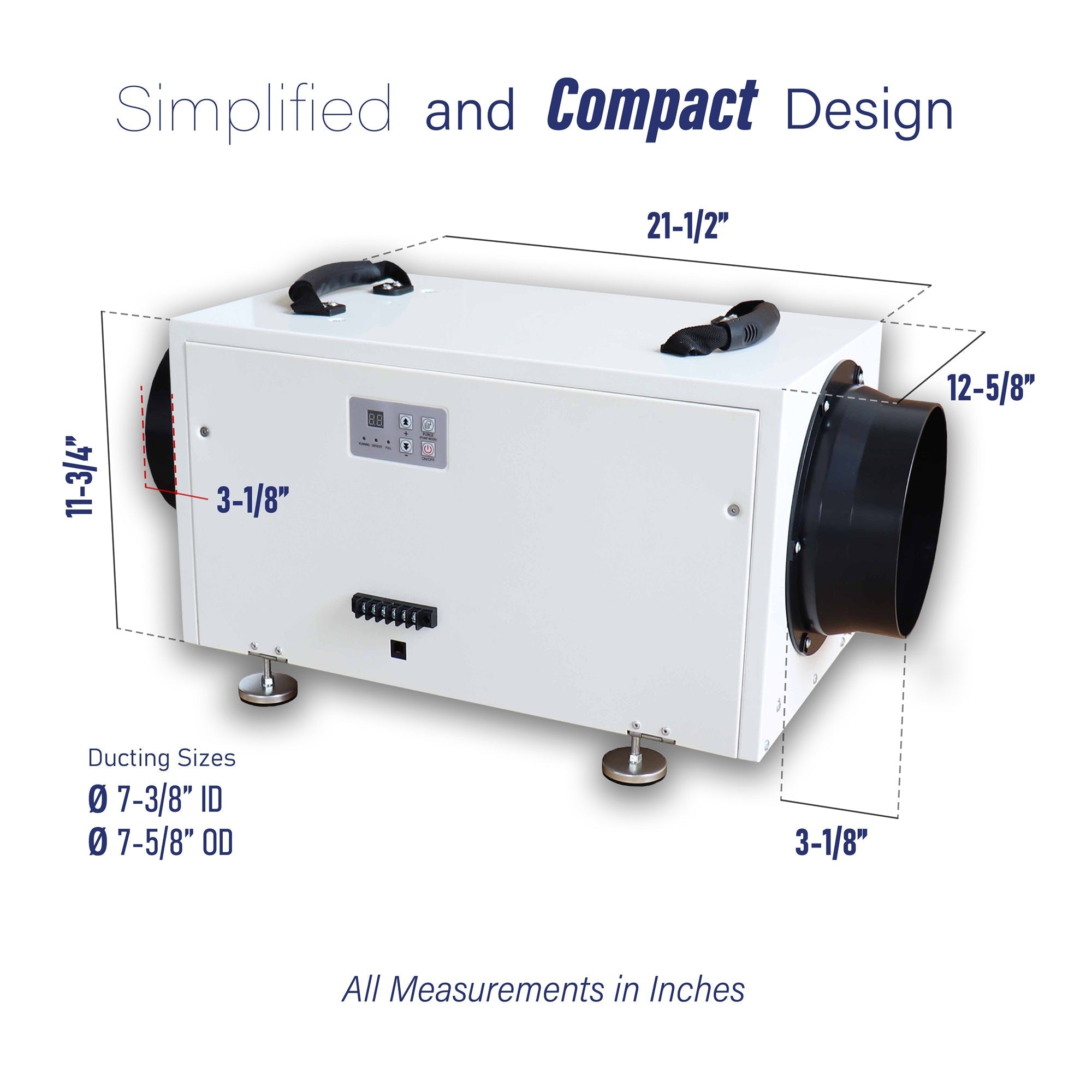

• Dimensions (W×D×H): 12-5/8″ × 27-3/4″ × 11-3/4″; Weight: 60 lbs; Cord: 10-1/2 ft

• Operating Range: 41°F – 104°F (auto defrost; compressor protection delay)

• Filtration: Washable 304-grade stainless steel filter

• Drainage: Manual gravity drain (terminal provided for optional condensate pump)

• Energy Efficiency: 4.44 pints removed per kWh

Features

• High Moisture Removal: Whole-home humidity control rated 70 pints/day at AHAM

• Efficient Airflow: 280 CFM nominal with optional boost for peak demand

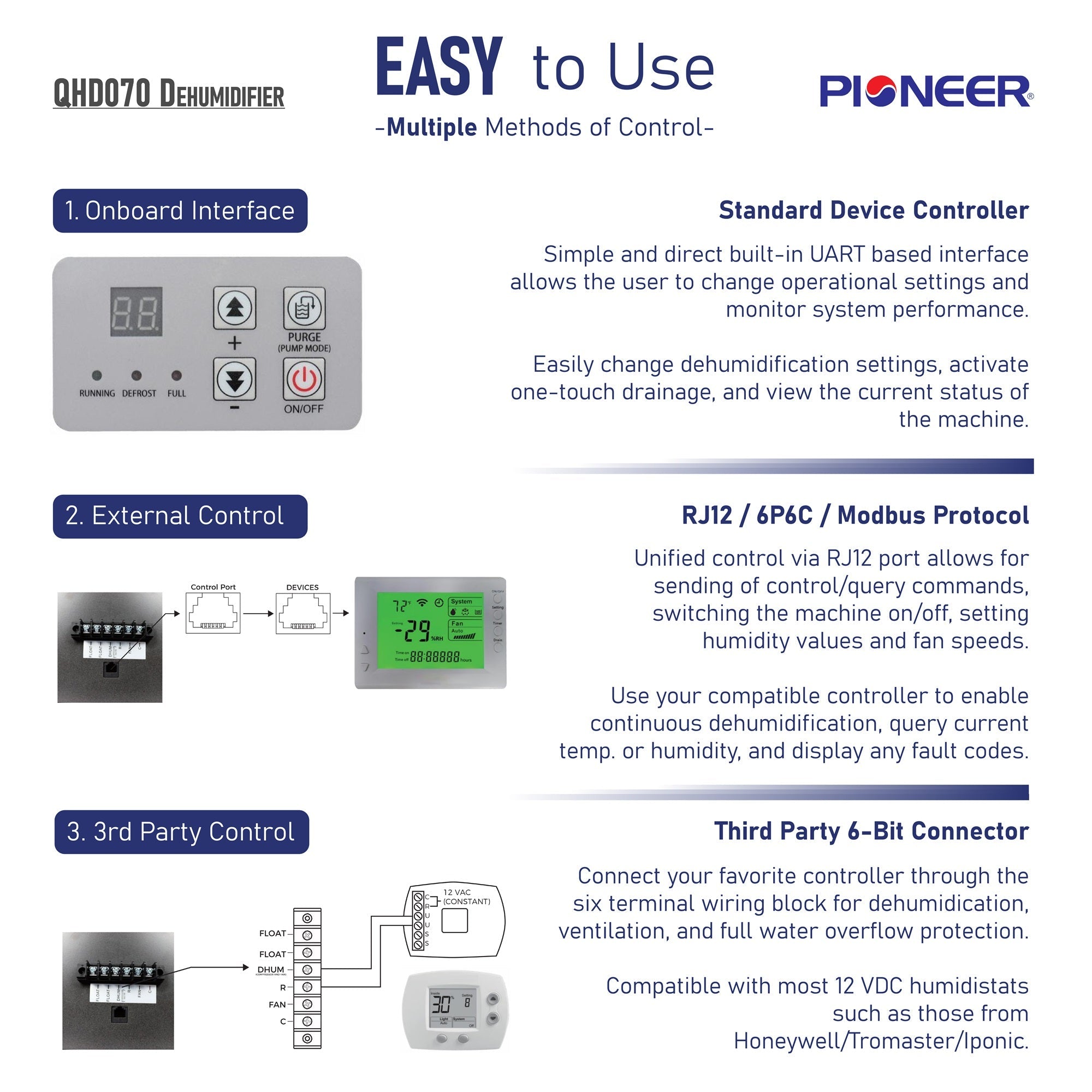

• Flexible Controls: On-unit digital controller; optional proprietary wall control; compatible with standard 3rd-party humidity controllers & Modbus

• Convenient Drainage: Default manual drain with reserved terminal for optional pump

• Smart Protection: Compressor delay timer & automatic defrost enhance reliability

• Durable Filtration: Washable 304 stainless steel filter for easy maintenance

Maintenance

• Daily: Verify humidity setpoint and ensure drain line is unobstructed

• Weekly: Inspect filter and duct connections; clean filter as needed

• Annually: Perform a full system check (coils, electrical, controller) and review documentation

Warranty

• Compressor & Parts: 3 years

• Coverage Details: See User’s Manual and Sales Brochure
