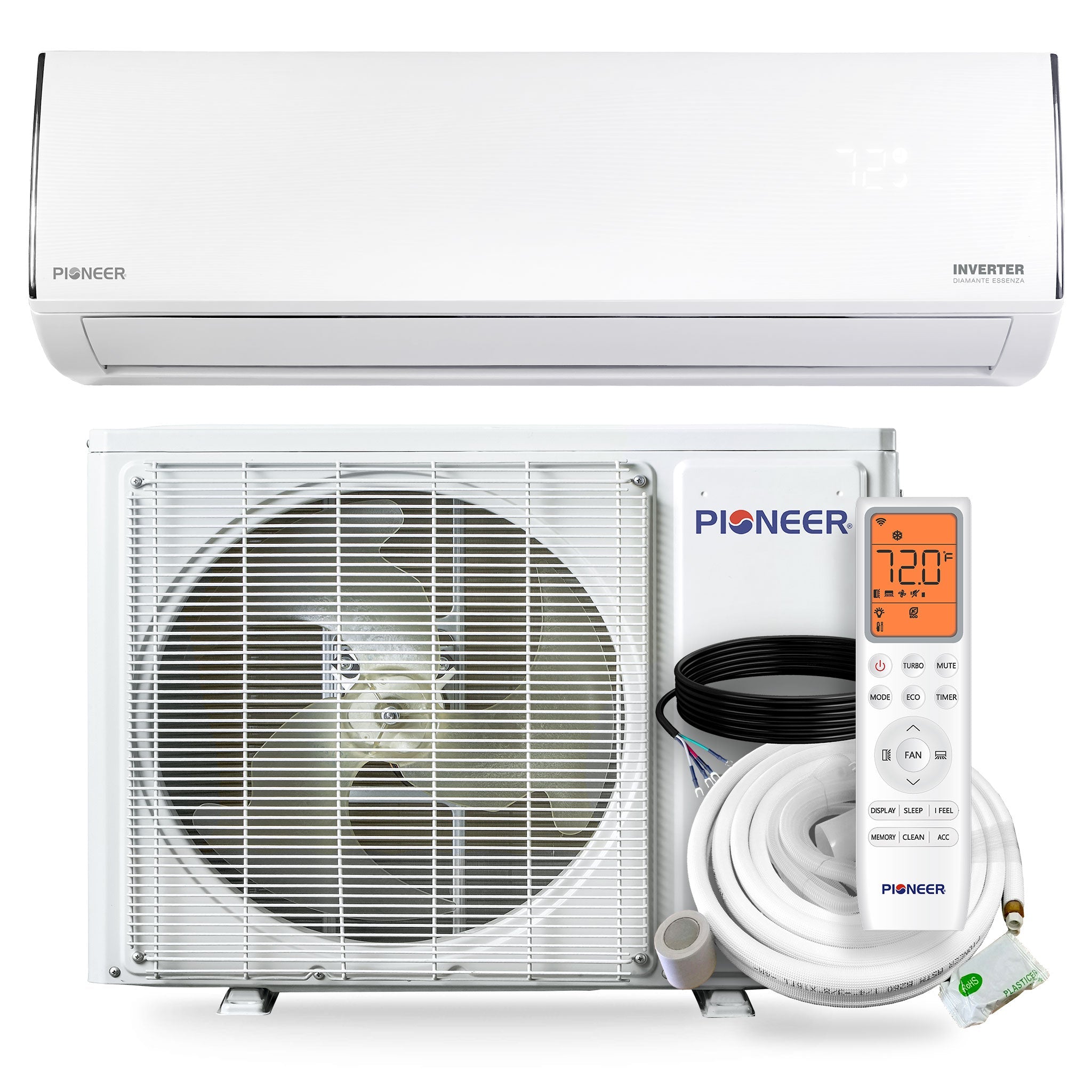

Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Sale price$1,888.00 Regular price$2,699.00
Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit Sale price$1,888.00 Regular price$2,699.00

Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

The Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit delivers dependable, standard-efficiency comfort with a quiet, wall-mounted design. Powered by a variable-speed DC inverter and factory-charged with eco-friendly R-32 refrigerant, it provides reliable year-round heating and cooling within a standard ambient operating range.

Specifications

  • Cooling Capacity: 35,000 BTU/H (17 SEER2 / 9.5 EER2)

  • Heating Capacity: 35,400 BTU/H (8.5 HSPF2 / 3.2 COP2)

  • Voltage: 208/230V, 60Hz, 1Ph

  • Mount Type: High Wall-Mounted Ductless System

  • Inverter: Variable-Speed DC Inverter

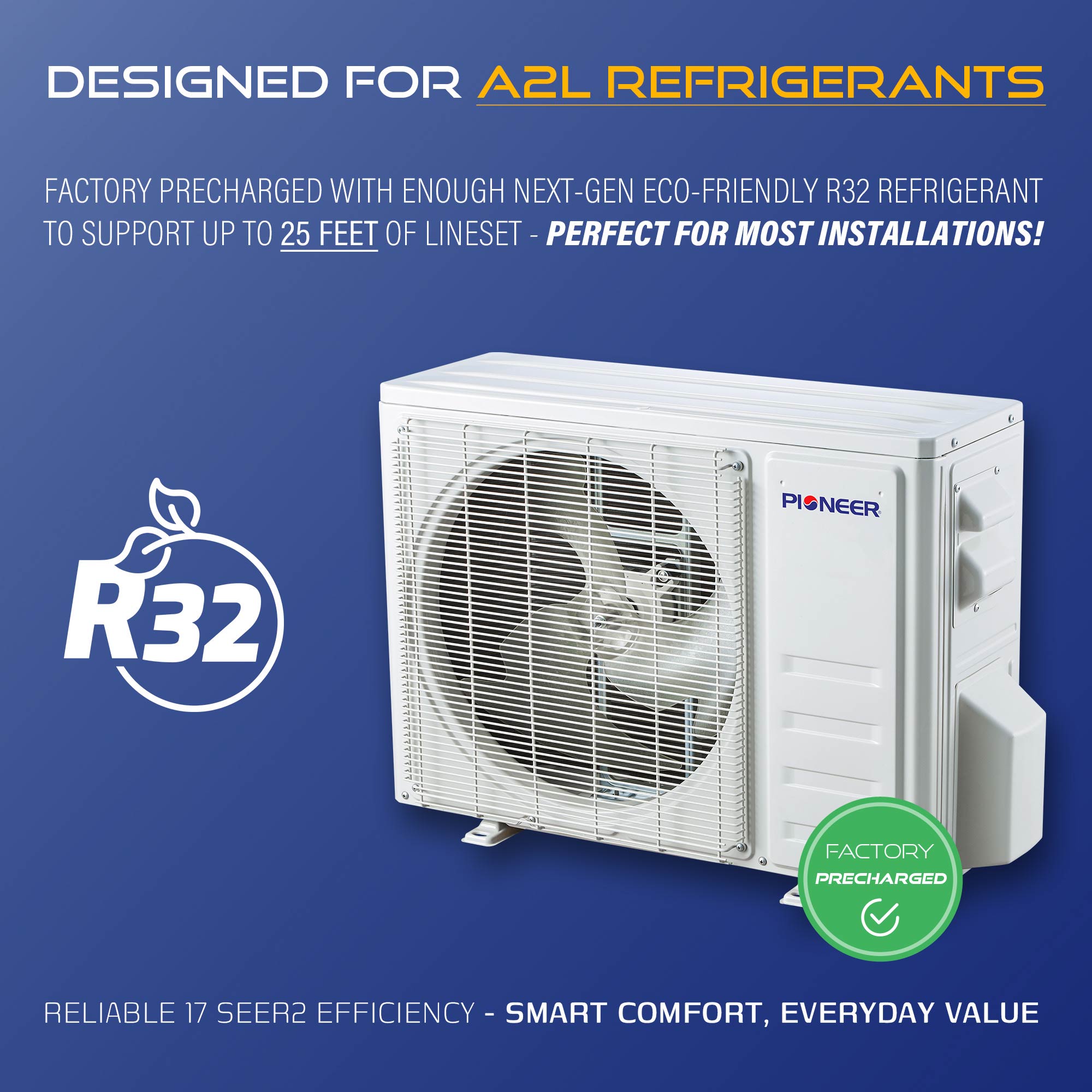

  • Refrigerant: R-32 (factory-precharged)

  • Operating Range: Heat to 5°F / Cool to 122°F

  • Recommended Room Size: 800–1350 sq ft

  • Minimum Room Size: 63 sq ft

  • Minimum Installation Height: 6 ft

  • Piping Diameter: 1/4"–5/8"

  • AHRI Reference: 217048738

Features

  • All-Season Modes: Cooling, Heating, Dry, and Ventilation

  • Dual-Drainage Ports: Flexible installation options

  • Air Filters: Washable, reusable

  • Dual-Axis Airflow: Motorized up-down and left-right louvers

  • Remote Functions: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, IFEEL

Maintenance

  • Daily: Wipe down the grill and sink after use

  • Weekly: Clean the refrigerator and ice maker

  • Annually: Inspect all connections and perform detailed cleaning

Warranty

  • Frame & Grill: 7 years

  • Wine Cooler & Refrigerator: 3 years

Technical Information & Performance

  • Indoor Unit

    • Part Number: WT036GLUI17HLD

    • Air Flow (Turbo/Hi/Med/Lo/Mute): 882 / 741 / 564 / 458 / 411 CFM

    • Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 52 / 46 / 41 / 39 dB(A)

    • Product Dimensions (W×D×H): 46⅞" × 10¼" × 14¼"

    • Carton (W×D×H): 49⅝" × 12⅞" × 16⅞"

    • Net / Gross Weight: 38.6 / 46.3 lbs.

  • Outdoor Unit

    • Part Number: YN036GLUI17RPD

    • Breaker Needed: 30A (double-pole)

    • Sound Level: 63 dB(A)

    • Net Dimensions (W×D×H): 38½" × 16½" × 31⅝"

    • Carton (W×D×H): 40¼" × 18⅞" × 32⅞"

    • Net / Gross Weight: 105.8 / 120.2 lbs

Dimension Chart

Diamante Essenza 35,000 BTU Mini Split Dimensions

  • Indoor (W×D×H): 46⅞" × 10¼" × 14¼"

  • Outdoor (W×D×H): 38½" × 16½" × 31⅝"
