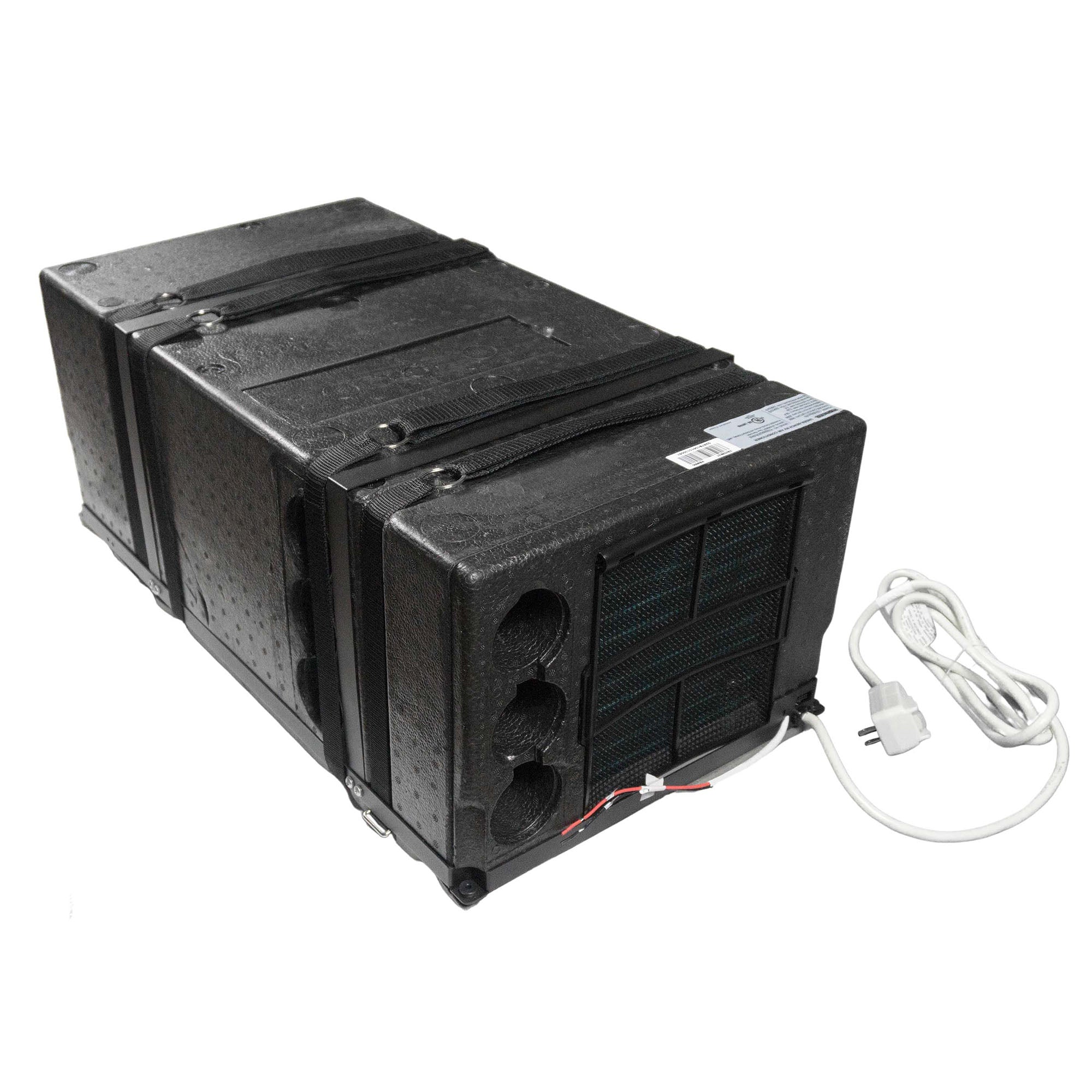

Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump Air Conditioner

The Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump Air Conditioner is a low-profile, under-bench package unit designed to keep your motorhome, skoolie, camper van, or tiny home comfortable year-round—quietly and efficiently. Attach up to three ducts from the front or side to serve separate zones, and control it via the wired wall thermostat or the handheld remote. With ultra-quiet performance, sleek design, and very low input power requirements (110–120V plug-in), it’s a rugged companion for long-haul journeys day in and day out.

Specifications

• Power Supply: 110~120V, 60Hz, 1Ph

• Cooling Capacity / EER: 10,000 BTU/h  |  10.1 BTU/W·h

• Heating Capacity / C.O.P.: 9,500 BTU/h  |  3.5 W/W

• Max Cooling Consumption: 8.6A / 989W

• Max Heating Consumption: 6.9A / 794W

• Operational Temperature Range: 19–104 °F

• Refrigerant: R32 (pre-charged, ready to install)

• Airflow (Max): 206 CFM

• Fan Speeds: 3 (Low/Med/High)

• Noise Level: <40 dB(A)

• Water Protection: IPX-5

• Dimensions (L × W × H): 28"-7/8 × 16" × 11"-5/8

• Weight: 61 lbs

• Suitable Volume: 1,060 m³

Features

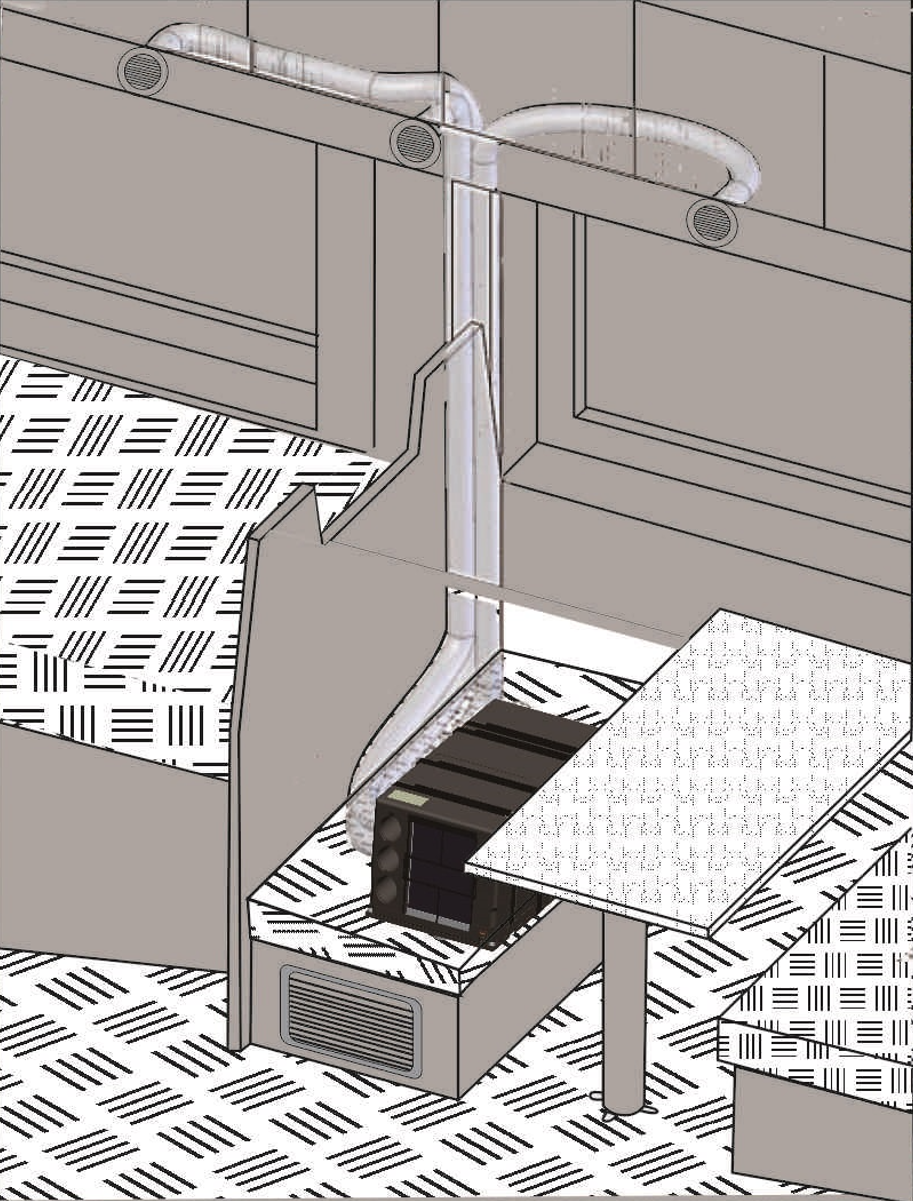

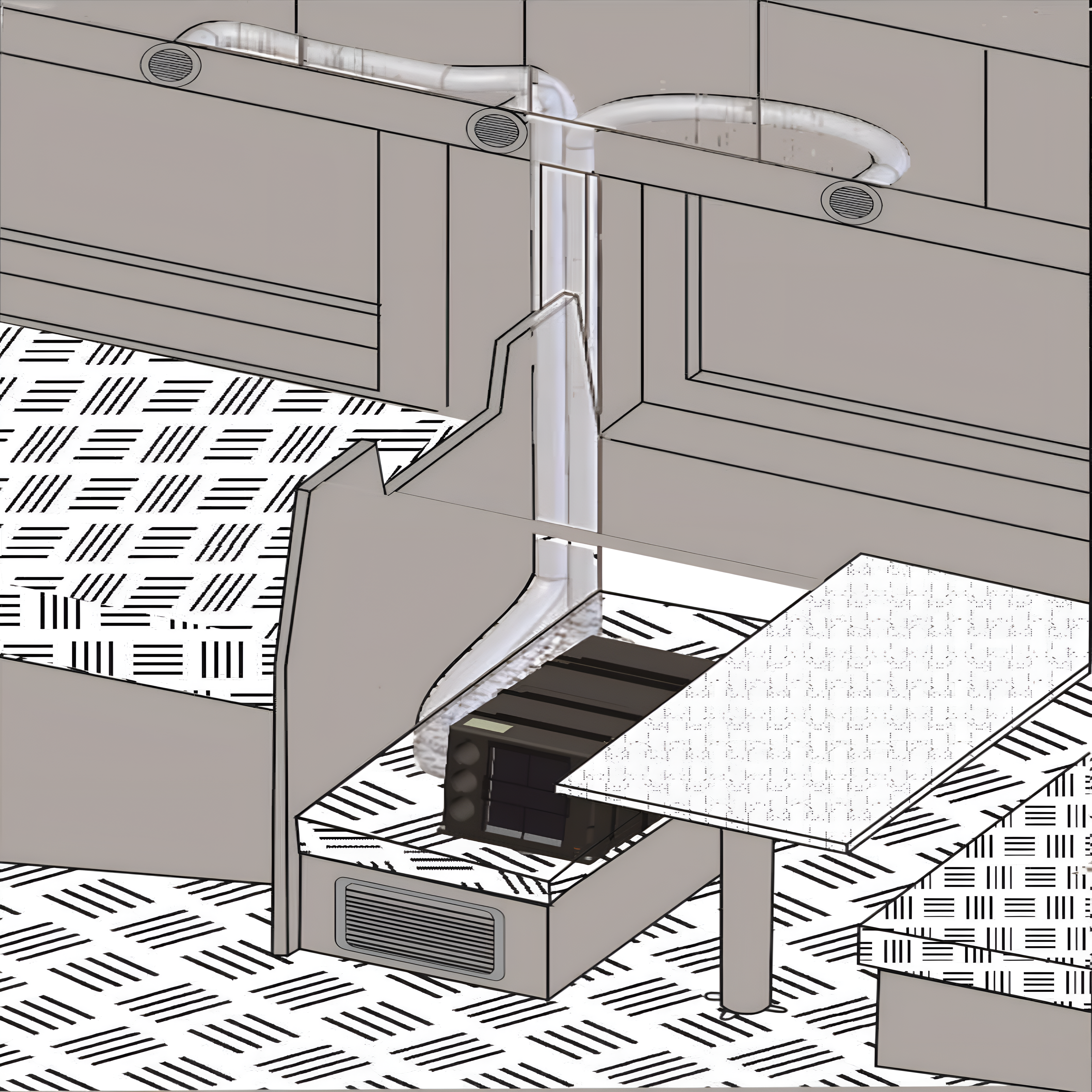

• Under-Bench, Low-Profile Design: Saves space and stays out of sight

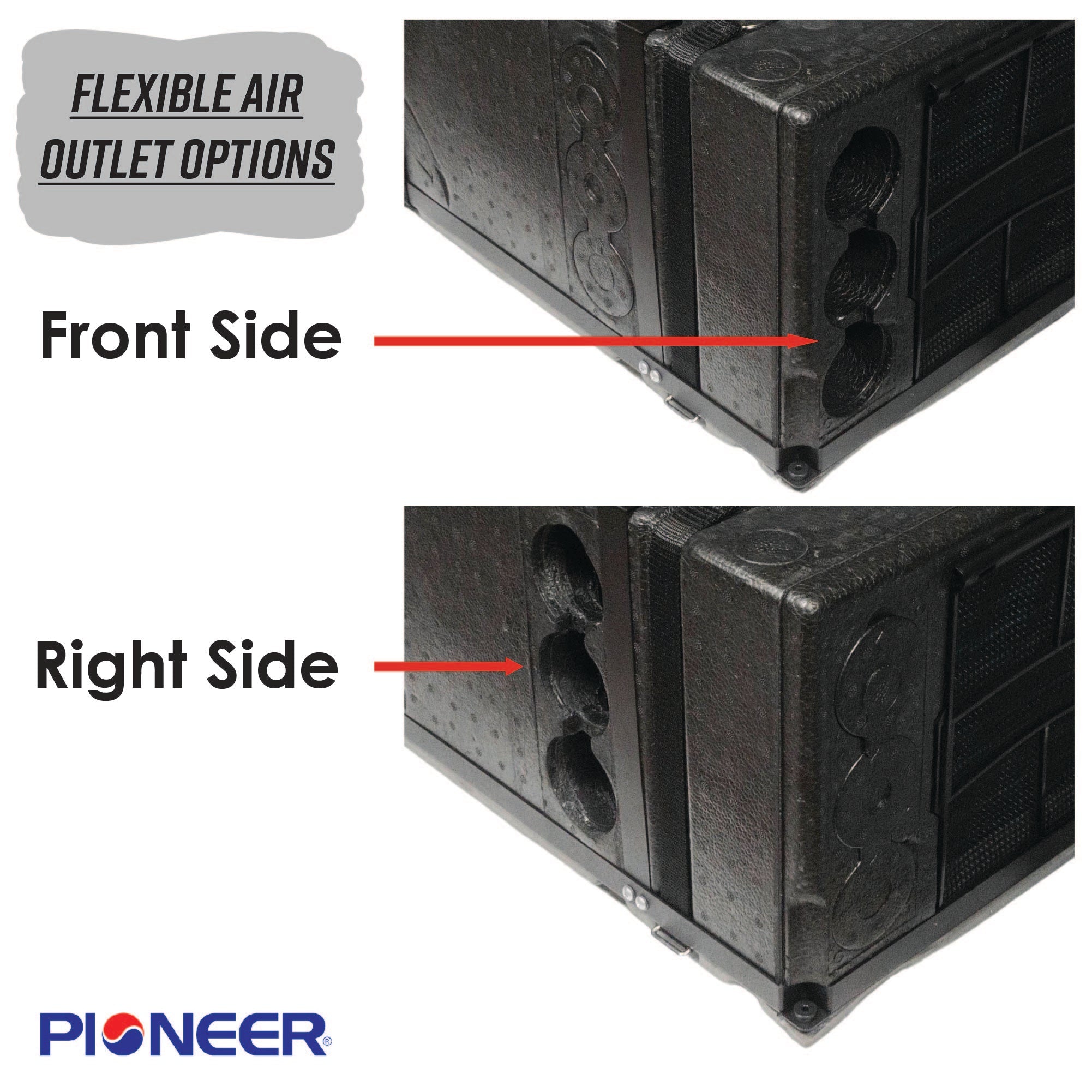

• Three-Duct Configuration: Connect from the front or side to serve multiple zones

• Quiet Operation: <40 dB(A) for comfortable cabins

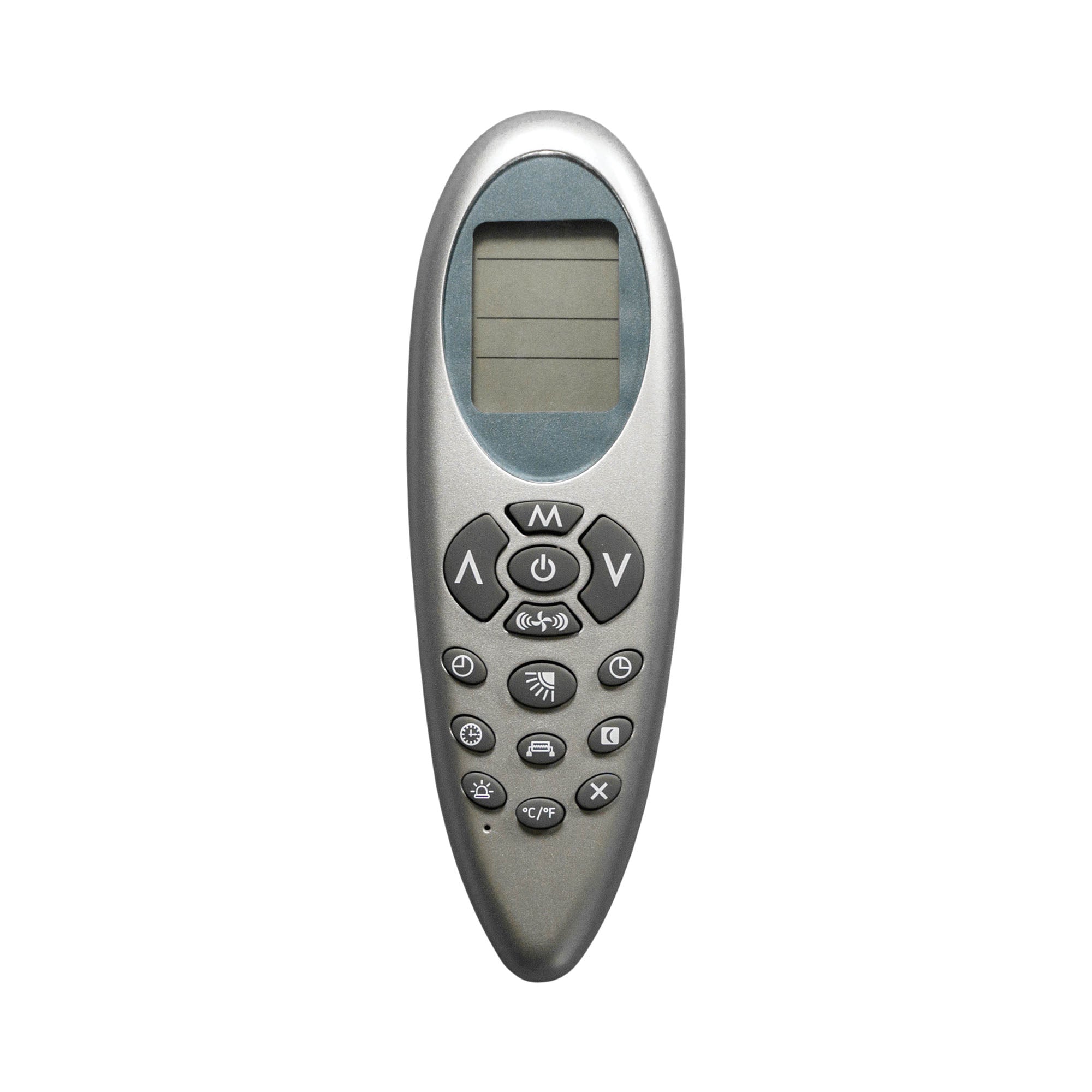

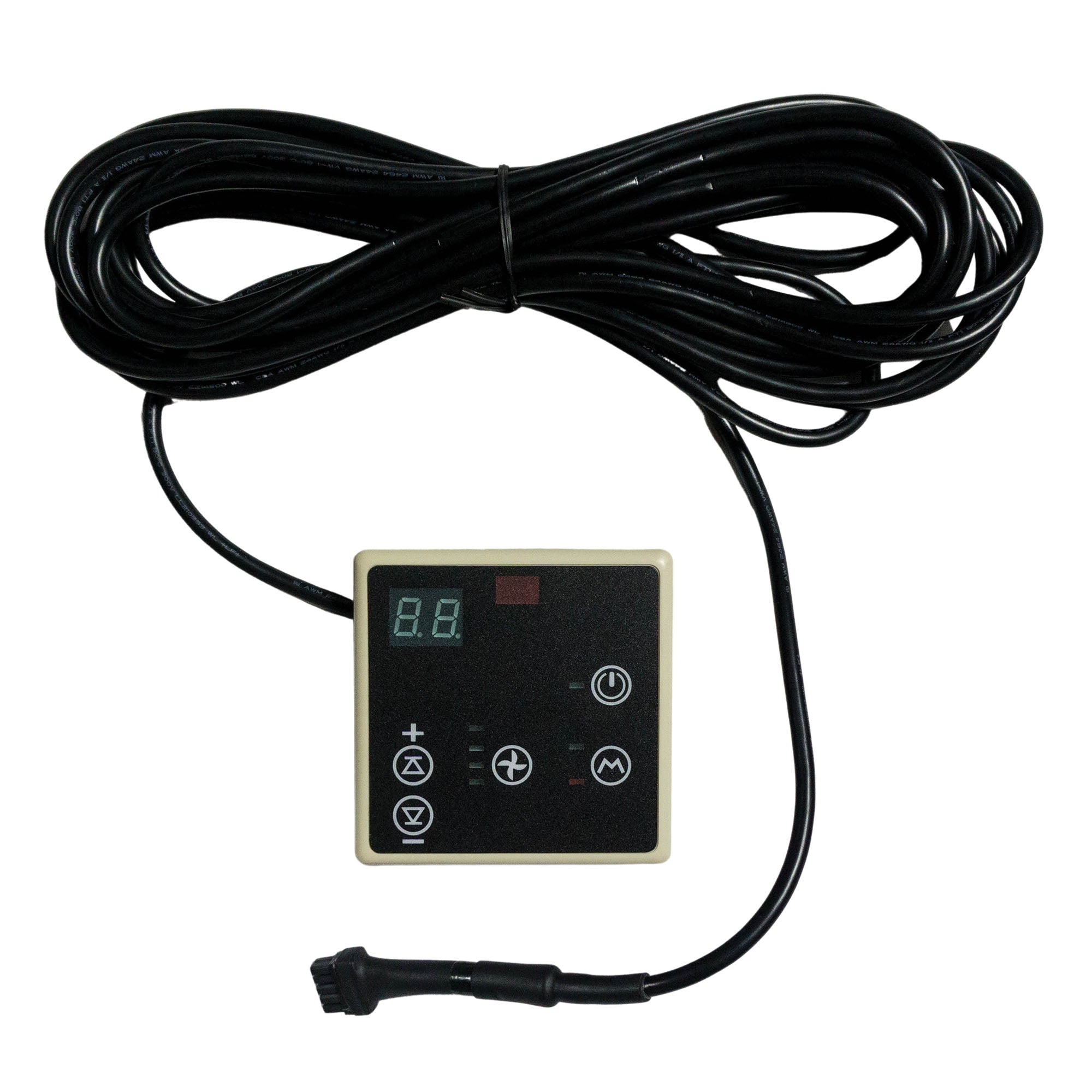

• Dual Controls: Wired wall thermostat & handheld remote (with cradle)

• Ready to Install: Pre-charged with R32; plug-in 110–120V operation

• Built for the Road: UL Listed; ideal for RVs, skoolies, camper vans, and tiny homes

Maintenance

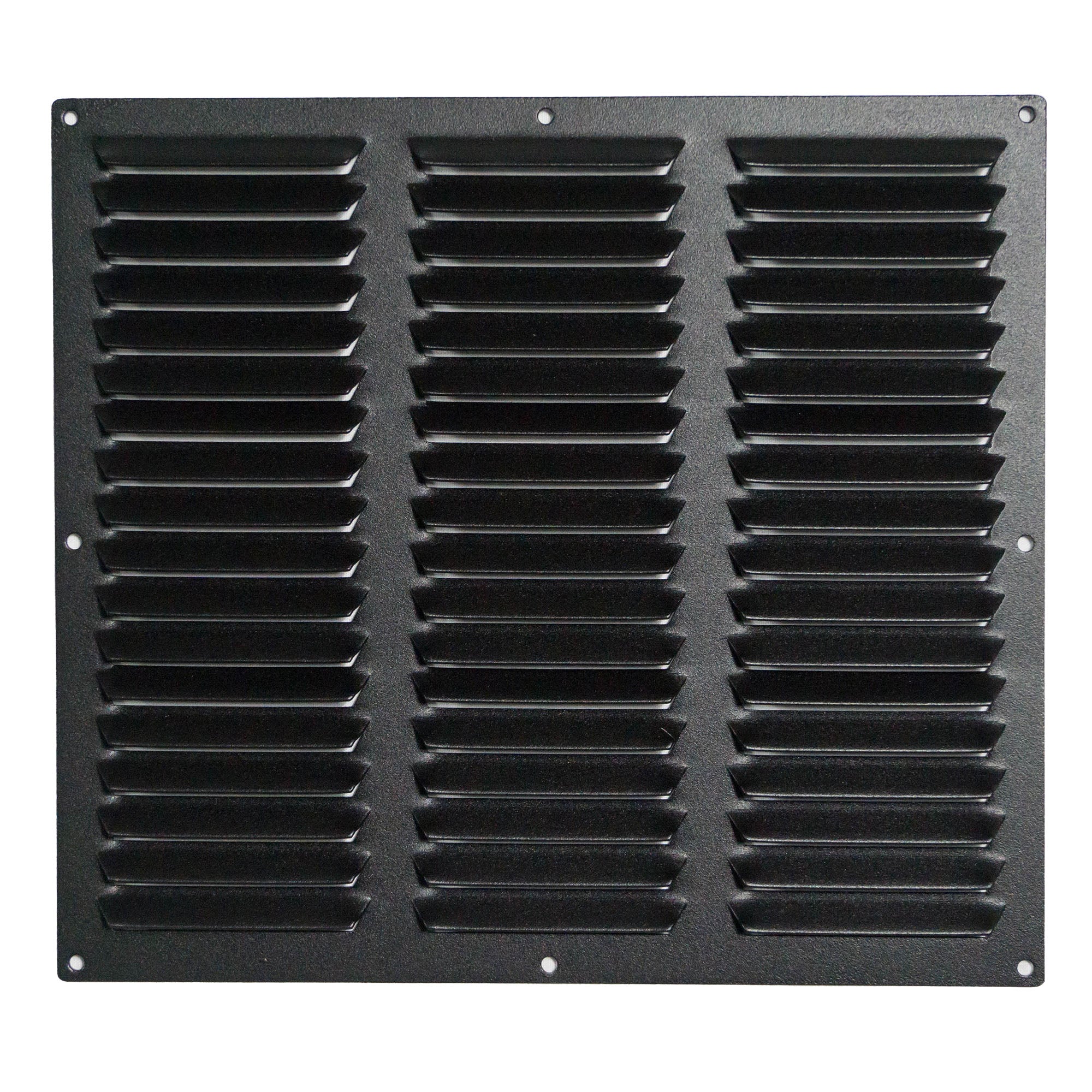

• Daily: Check for clear airflow at the return grille; wipe exterior surfaces as needed

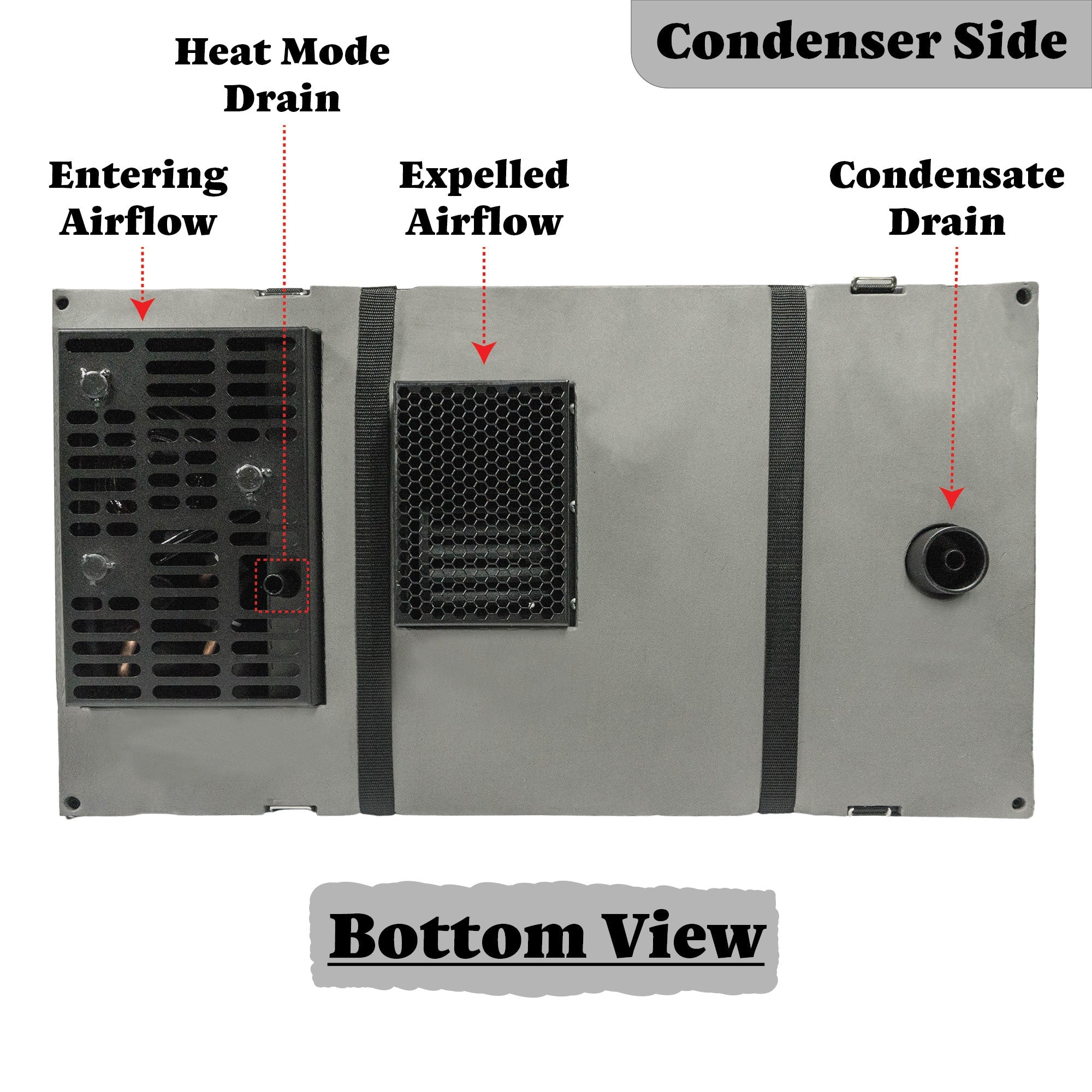

• Weekly: Inspect and clean air filters; verify condensate drainage

• Annually: Have a technician inspect electrical connections, coils, and refrigerant performance

Warranty

• Parts: 3 years (limited)

• Compressor: 5 years (limited)
