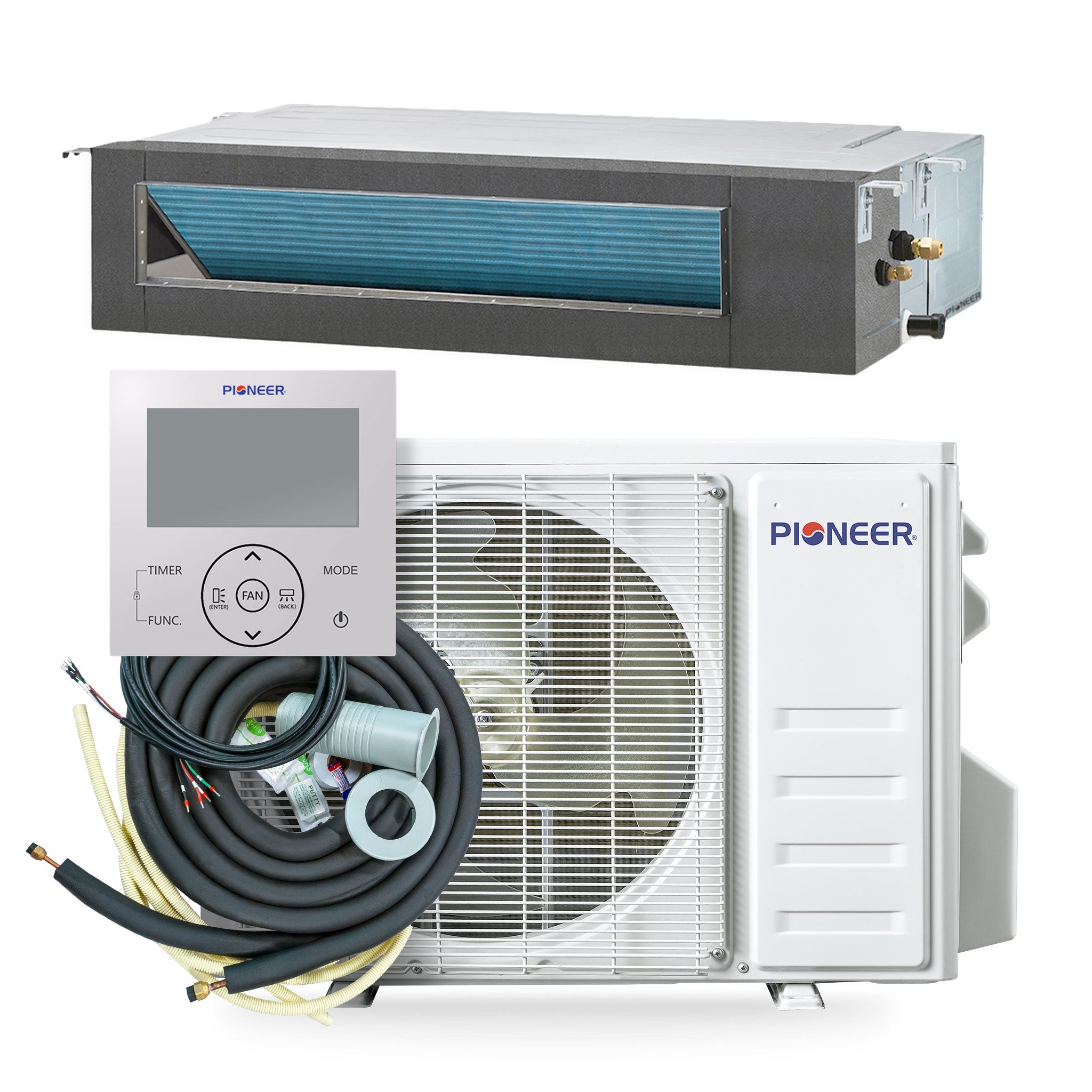

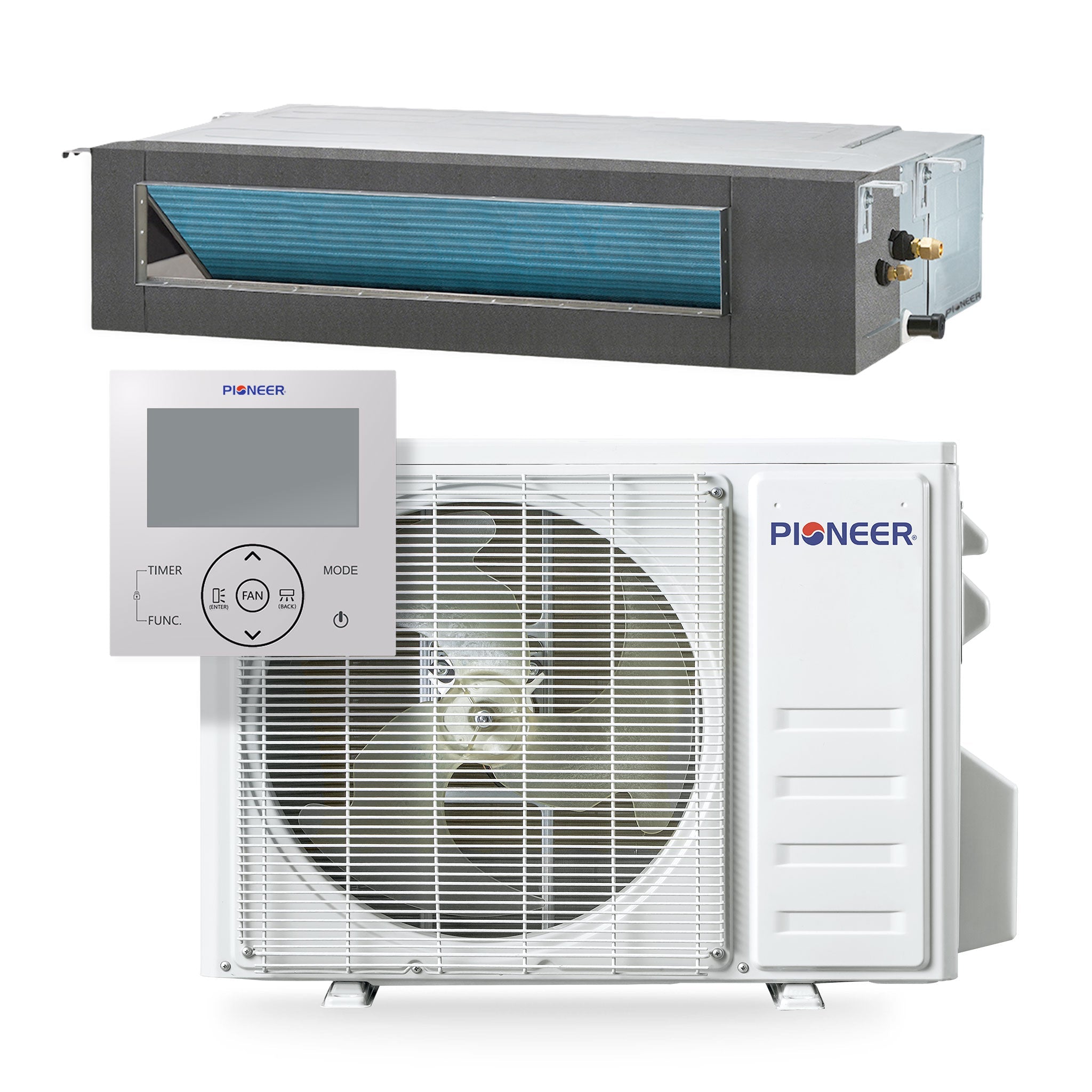

Pioneer® Quantum Ultra™ 24,000 BTU 19 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

The Pioneer® Quantum Ultra™ 24,000 BTU 19 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set delivers premium performance, energy efficiency, and whisper-quiet comfort in a low-profile concealed format. Ideal for homes and commercial spaces, it combines advanced inverter technology, ultra-low ambient operation, and intelligent climate control for year-round reliability.

Specifications

• Cooling Capacity: 22,000 BTU/H (19 SEER2 / 11.7 EER2 Efficiency)

• Heating Capacity: 25,000 BTU/H (9.5 HSPF2 / 3.2 COP2 Efficiency)

• Voltage: 208/230V, 60Hz, 1Ph

• Mounting Type: Ceiling Concealed Ducted System

• Technology: Variable-Speed DC Inverter

• Refrigerant: Factory-Precharged R454b (Eco-Friendly)

• Operating Range: -13°F Heating / 131°F Cooling

• Coverage Area: 750–1,000 Sq.F.

Features

• Comprehensive Modes: Cooling, Heating, Dry, and Ventilation

• Dual Drainage Ports: Flexible installation options

• Washable Filters: Reusable and easy to maintain

• Dual-Axis Airflow: Motorized Up-Down & Left-Right Louvers

• Smart Remote Control: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, and IFEEL Features

Installation Options

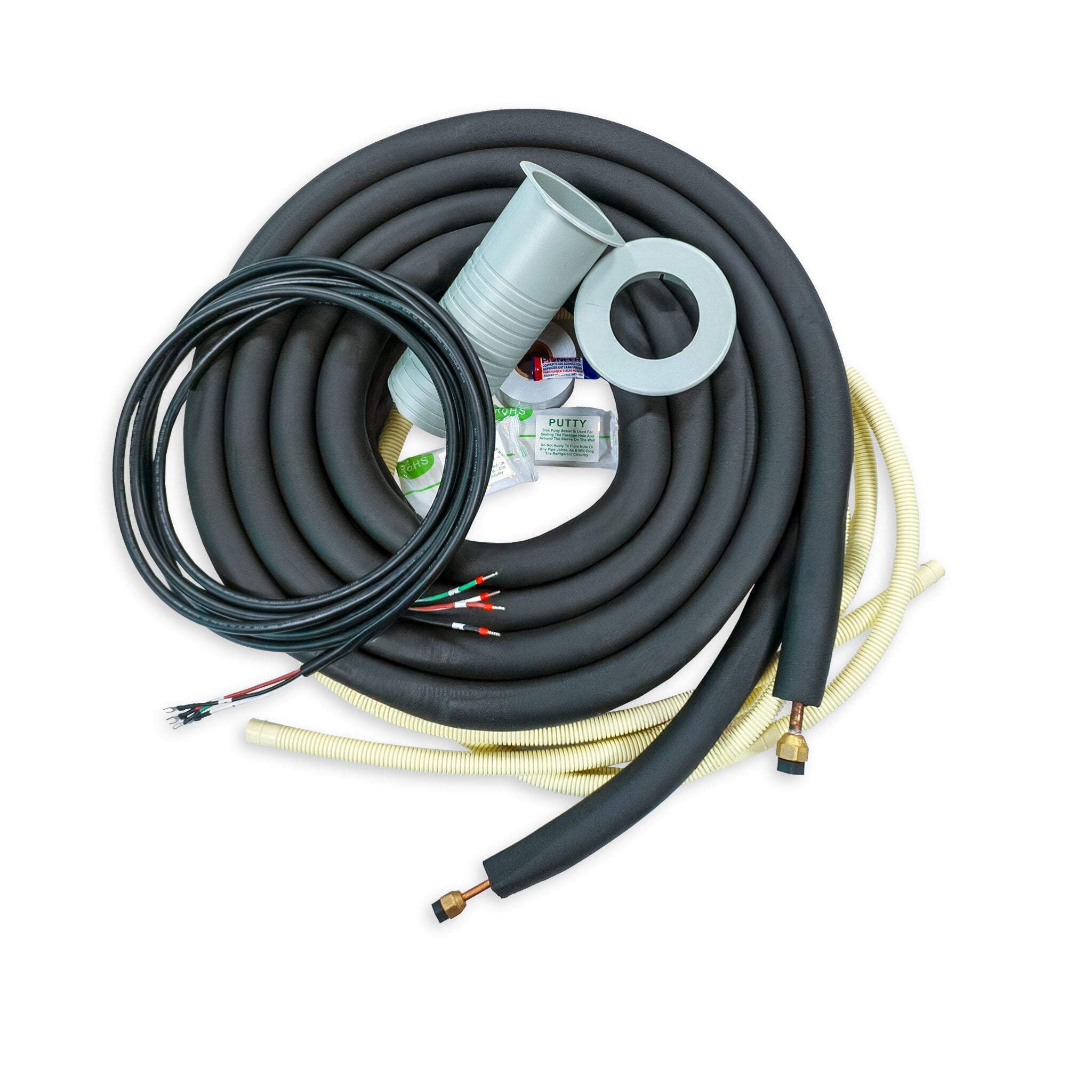

• Include System Installation Kit: Add Standard Copper Lineset, Add EZFlex™ Flexible Pipe, or No Installation Kit Needed

• Installation Kit Length: 10 Ft., 16 Ft., 25 Ft., 33 Ft., 50 Ft., or None

Technical Information & Performance

• AHRI Certificate
• Energy Guide

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 22,000 BTU/h
  • Cooling Capacity Range: 7,550~24,600 BTU/h
  • Cooling SEER2: 19.0 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 25,000 BTU/h
  • Heating Capacity Range: 8,700~28,500 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.2 / 2.0 W/W
  • Refrigerant Type: R454b
  • AHRI Reference: 217048765
• Indoor Unit
  • Part Number: RT024GLSILSFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 741/623/558/529/470 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 41/38/34 dB(A)
  • Product Dimensions (WDH): 43¼" x 17¾" x 7⅞"
  • Carton Dimensions (WDH): 50¾" x 22¼" x 9⅞"
  • Net / Gross Weight: 50.7 / 58.4 lbs.

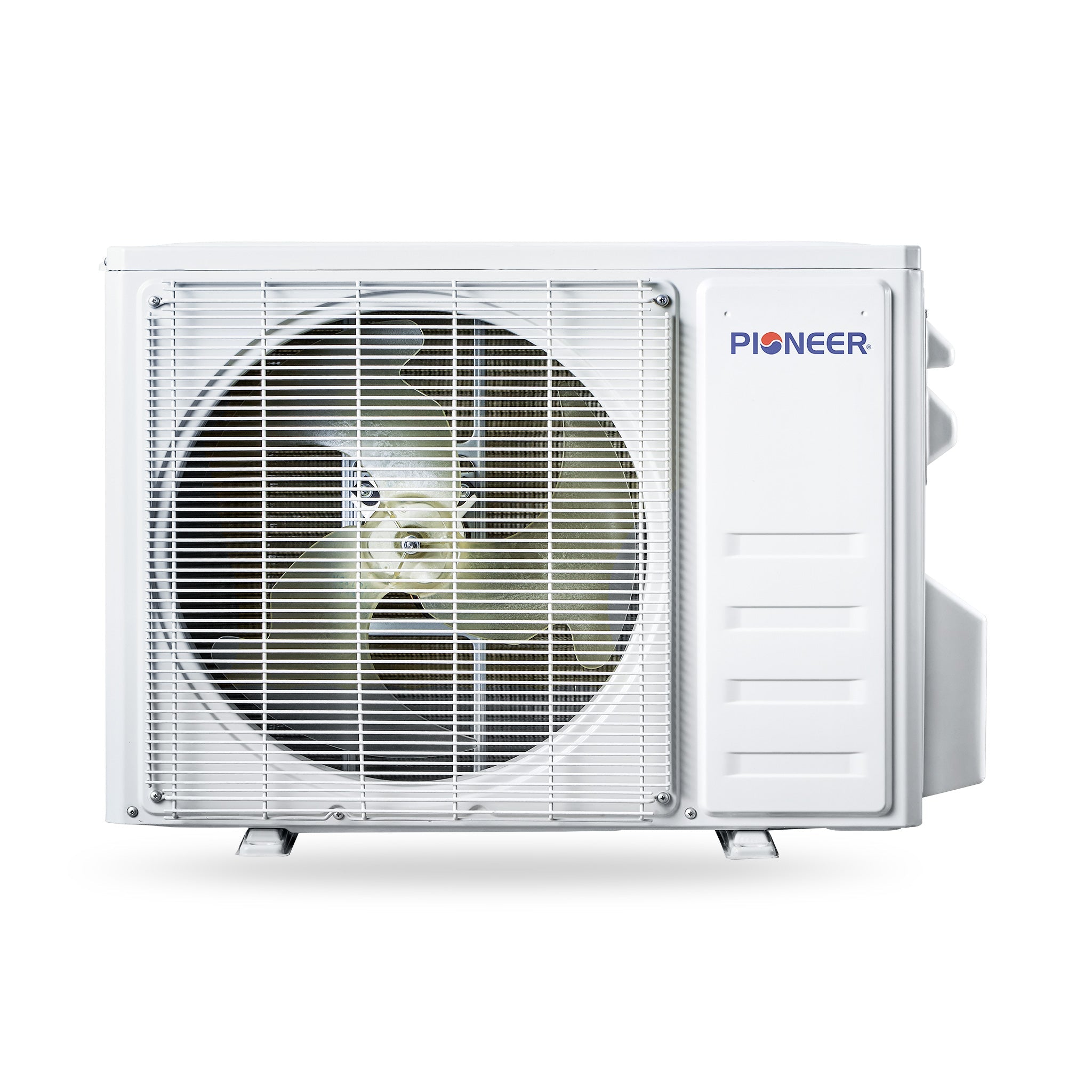

• Outdoor Unit
  • Part Number: YN024GLSI24RPG
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 38½" x 16⅝" x 31⅝"
  • Carton Dimensions (WDH): 40¼" x 18⅞" x 31⅞"
  • Net / Gross Weight: 104.7 / 119.0 lbs.

Dimension Chart
