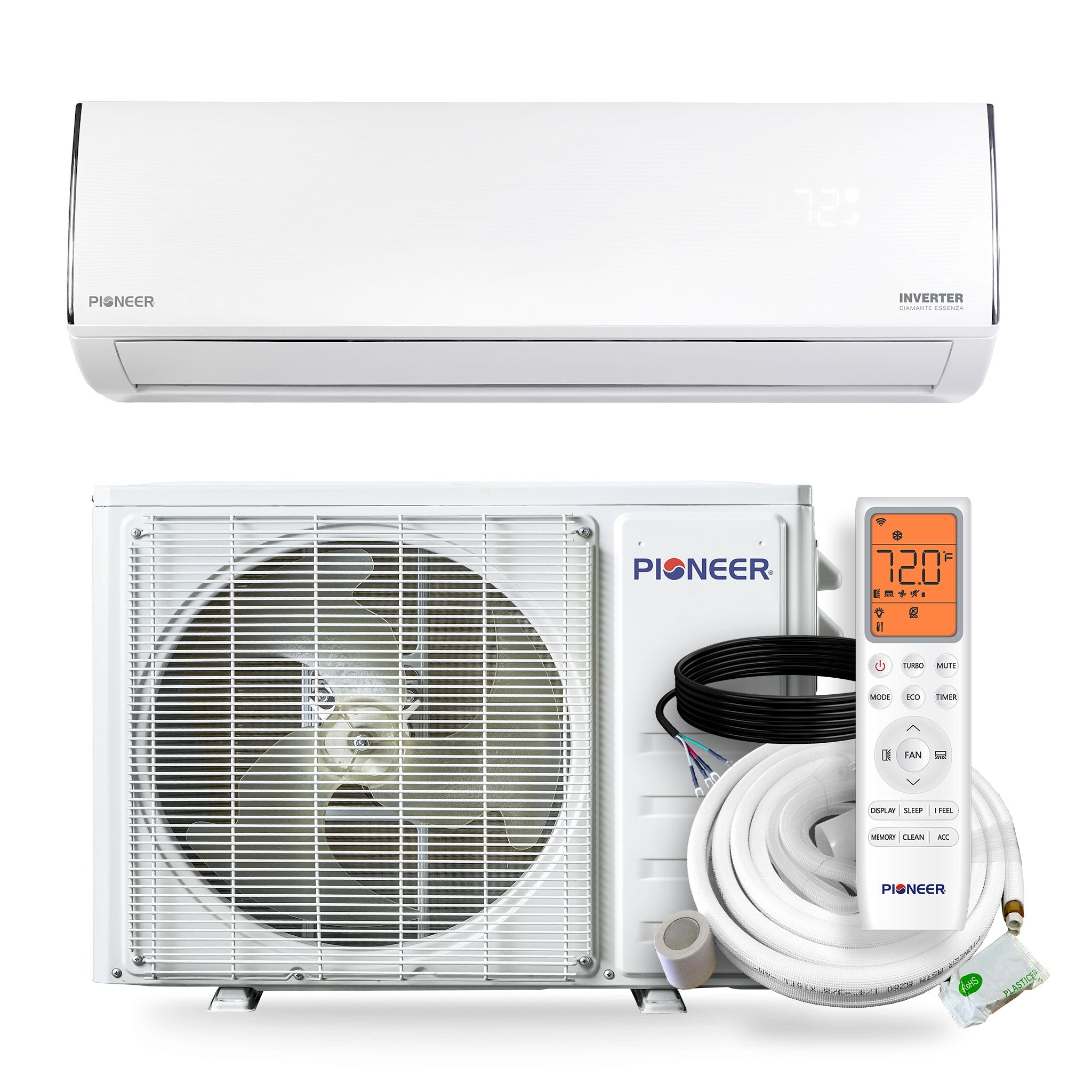

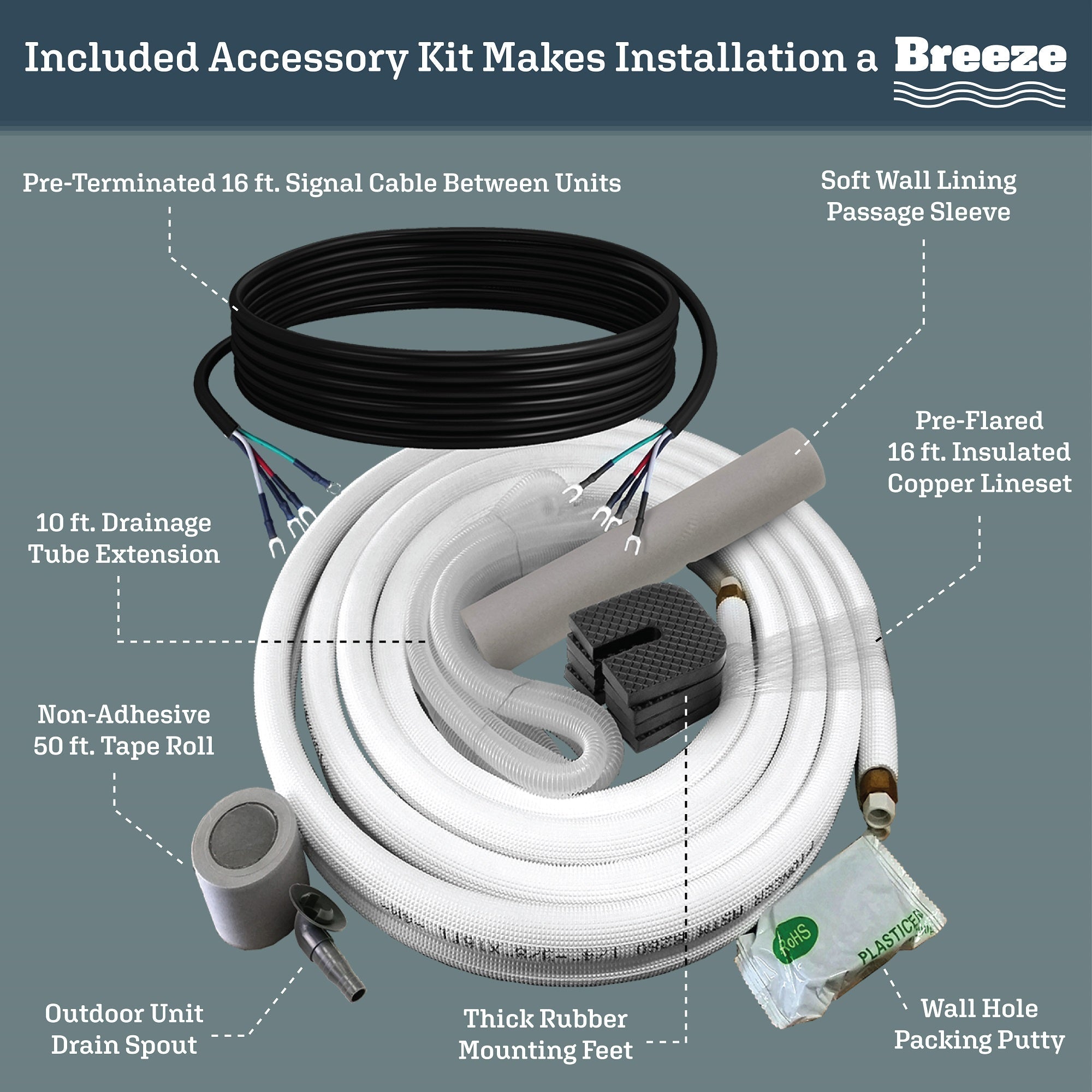

Pioneer® Diamante Essenza™ 17,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

The Pioneer® Diamante Essenza™ 17,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit offers reliable, standard-efficiency comfort in a quiet wall-mounted design. Powered by a variable-speed DC inverter and factory-charged with eco-friendly R-32 refrigerant, it delivers year-round heating and cooling performance within a standard ambient operating range.

Specifications

• Cooling Capacity: 17,000 BTU/H (17 SEER2 / 9.5 EER2)

• Heating Capacity: 16,500 BTU/H (8.5 HSPF2 / 3.2 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Mount Type: High Wall-Mounted Ductless System

• Inverter: Variable-Speed DC Inverter

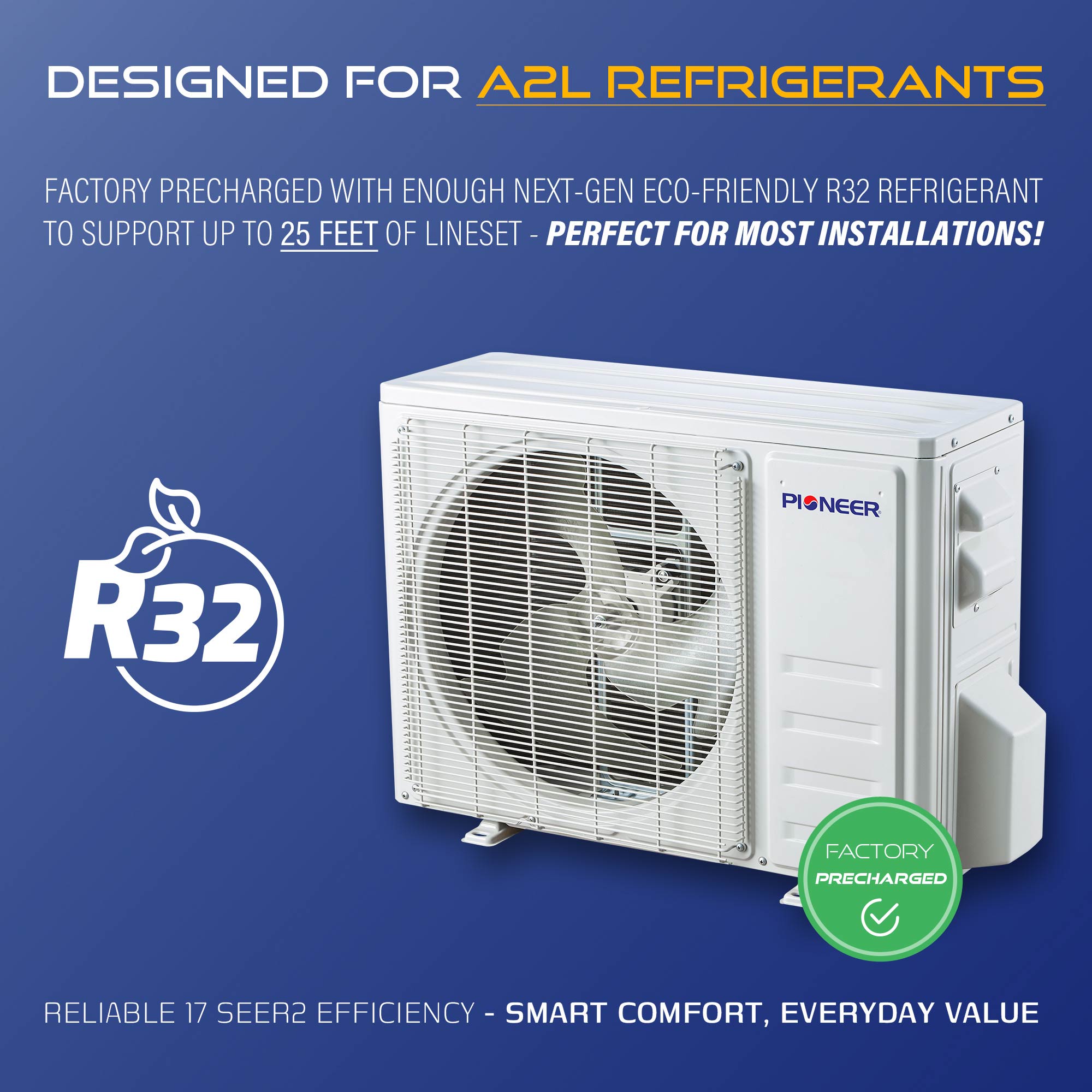

• Refrigerant: R-32 (factory-precharged)

• Operating Range: Heat to 5°F / Cool to 122°F

• Recommended Room Size: 400–650 sq ft

• Minimum Room Size: 27 sq ft

• Minimum Installation Height: 6 ft

• Piping Diameter: 1/4"–3/8"

• AHRI Reference: 217048736

Features

• All-Season Modes: Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: Flexible installation options

• Air Filters: Washable, reusable

• Dual-Axis Airflow: Motorized up-down and left-right louvers

• Remote Functions: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, IFEEL

Maintenance

• Daily: Wipe down the grill and sink after use

• Weekly: Clean the refrigerator and ice maker

• Annually: Inspect all connections and perform detailed cleaning

Warranty

• Frame & Grill: 7 years

• Wine Cooler & Refrigerator: 3 years

Dimension Chart
