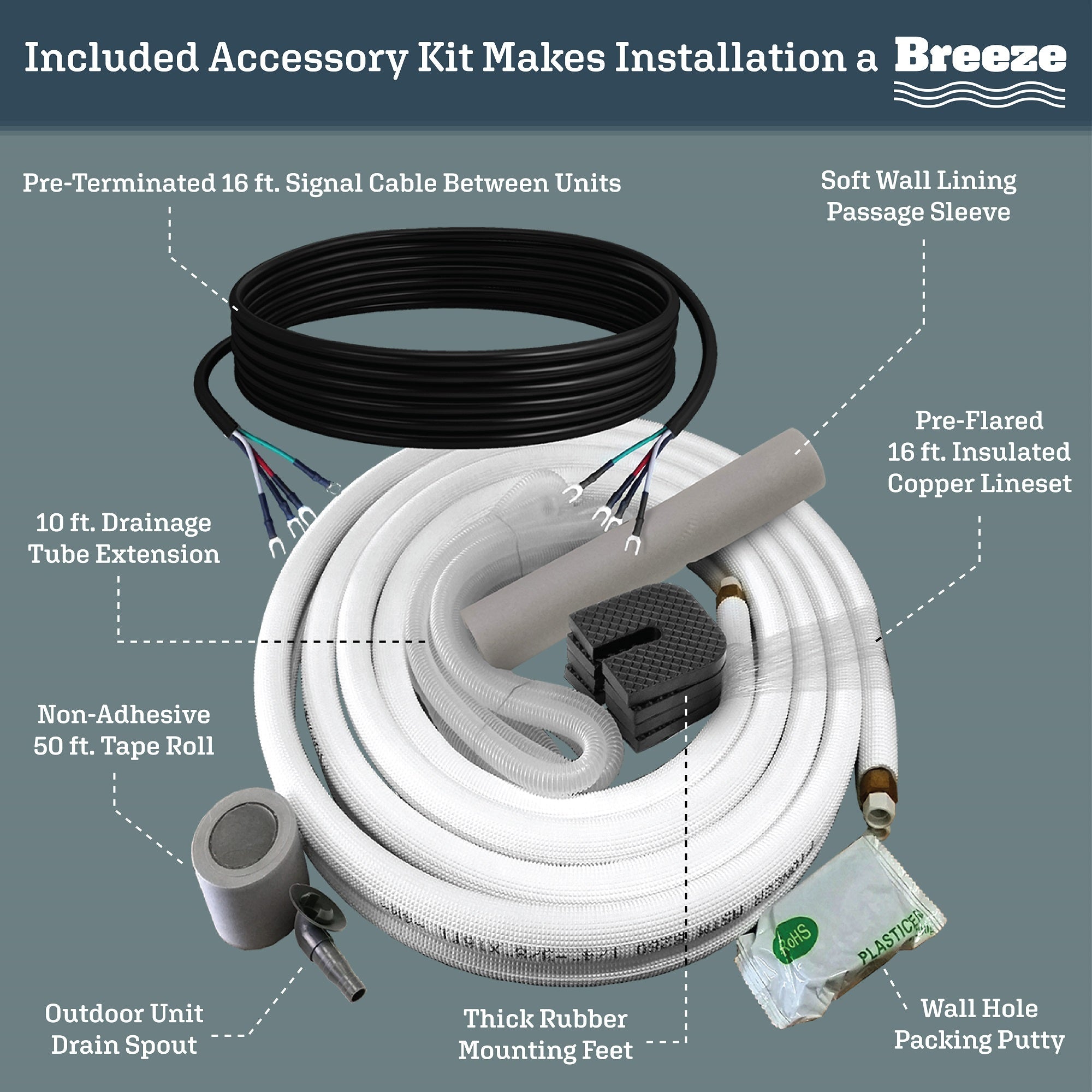

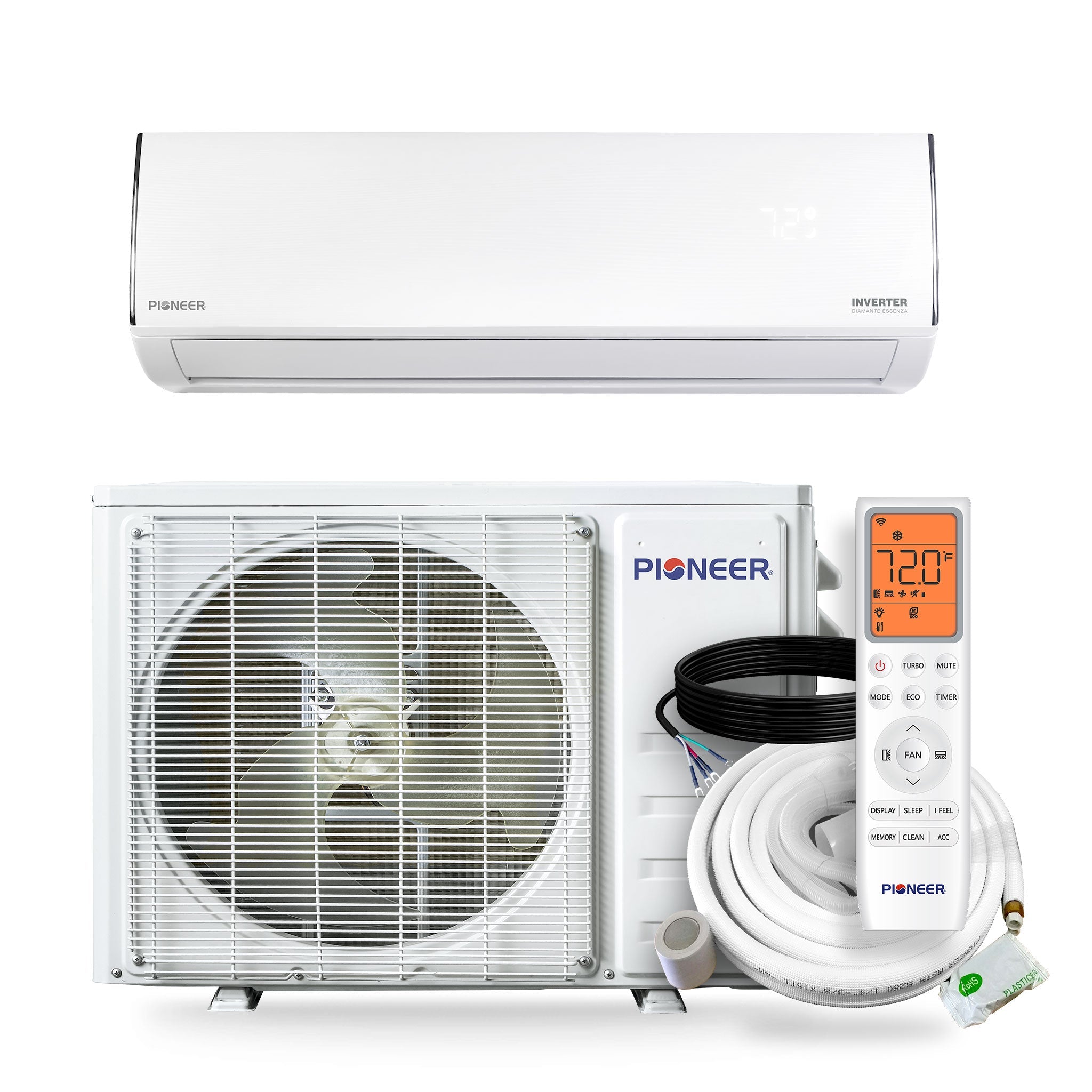

Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Choose options
Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
The Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit delivers reliable, standard-efficiency heating and cooling in a quiet, compact design. Equipped with a variable-speed DC inverter and factory pre-charged R-32 refrigerant, this wall-mounted unit provides comfort and efficiency across a wide ambient operating range, making it an ideal solution for year-round climate control.
Specifications
-
Cooling Capacity: 11,500 BTU/H (17 SEER2 / 9.5 EER2)
-
Heating Capacity: 11,500 BTU/H (9.5 HSPF2 / 3.3 COP2)
-
Voltage: 110/120V, 60Hz, 1Ph
-
Mount Type: High Wall-Mounted Ductless System
-
Inverter Type: Variable-Speed DC Inverter
-

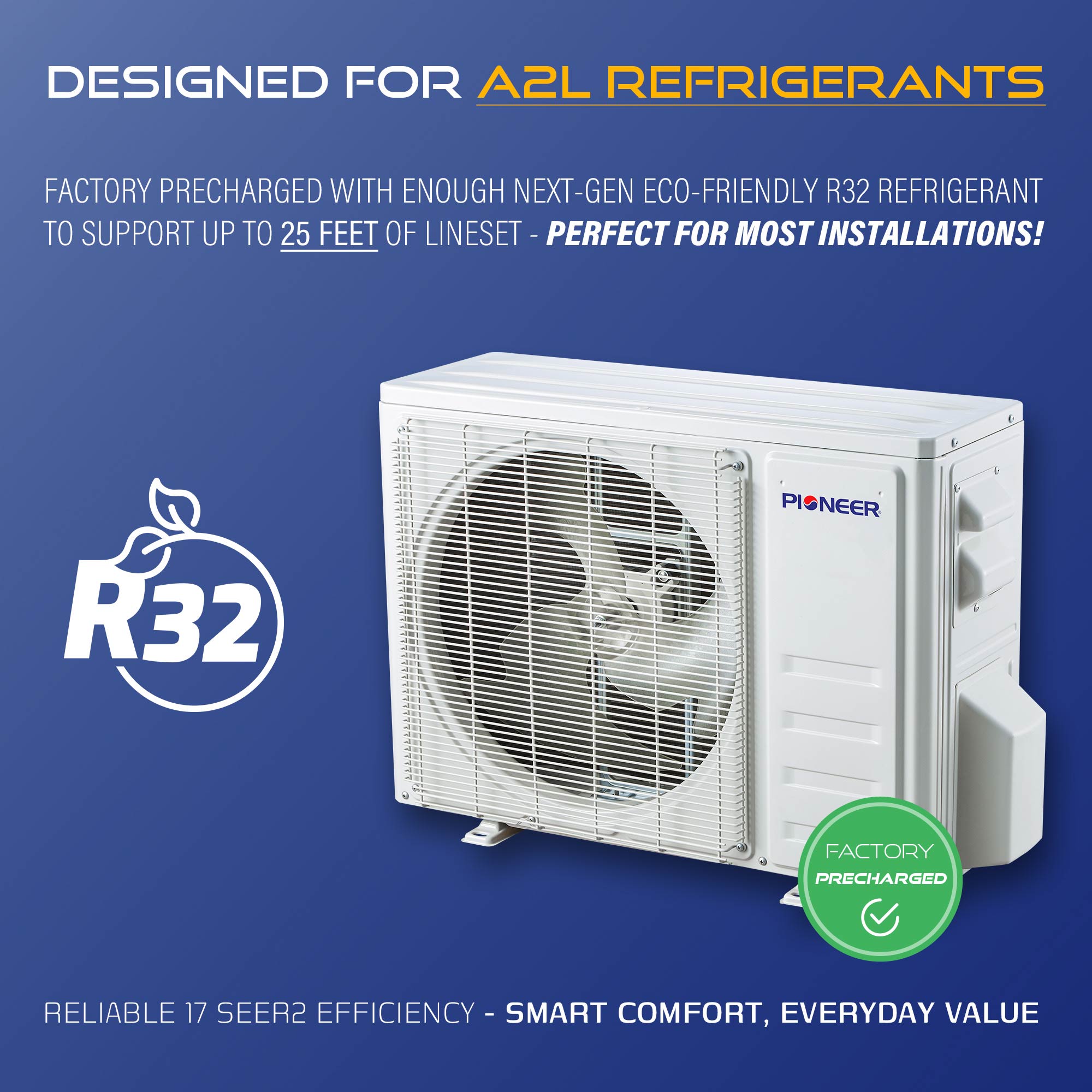

Refrigerant: R-32 (factory pre-charged)
-
Operating Range: Heat down to 5°F / Cool up to 122°F
-
Recommended Room Size: 200–450 sq ft
-
Minimum Room Size: 20 sq ft
-
Minimum Installation Height: 6 ft
-
Piping Diameter: 1/4"–3/8"
-
AHRI Reference: 217048734
Features
-
All-Season Modes: Cooling, Heating, Dry, and Ventilation
-
Dual-Drainage Ports: Flexible installation options
-
Air Filters: Washable, reusable design
-
Dual-Axis Airflow: Motorized up-down and left-right louvers
-
Remote Control Functions: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, IFEEL
