24V Interface Module Kit for Pioneer® Quantum Series 230V Mini Split Systems

The 24V Interface Module Kit for Pioneer® Quantum Series 230V Mini Split Systems lets you control compatible Pioneer Quantum Series systems with popular analog 24V heat pump thermostats (Nest, Honeywell, Ecobee, and more). It requires no external power when used with inverter-driven Pioneer equipment and includes everything needed for a clean, professional installation. *Each indoor unit must be wired to its own integrated control system and thermostat.

Specifications

• Power Source: 208/230V~60Hz/1Ph (no external power required with inverter units)

• Compatibility: Pioneer® Quantum Series systems on 230V: WYS/WS, CYB/CB, CYK/CK, UYB/UB, FYB/FB, RYB/RB

• Included Sensor: Additional T1 sensor for applications using fan relays

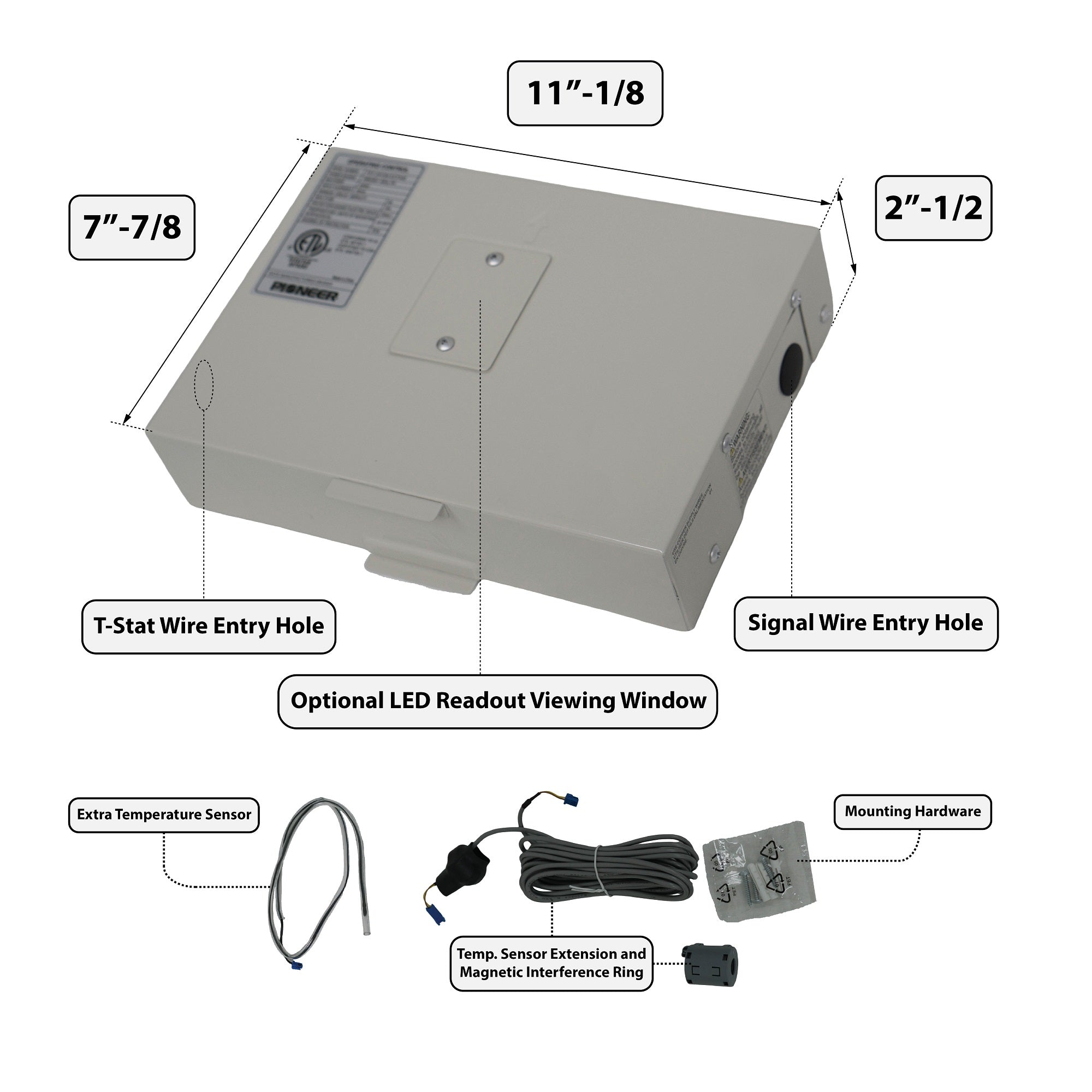

• Enclosure: Optional viewing hole for LED readout

• Mounting: Wall mounting hardware provided

• Manual: Installation Manual (PDF)

Features

• Thermostat Agnostic: Works with analog 24V heat pump thermostats (Nest, Honeywell, Ecobee, etc.)

• Simple Integration: No external power supply needed with inverter-driven Pioneer systems

• Per-Zone Control: Each indoor unit pairs with its own interface and thermostat

• Clean Install: Compact enclosure with optional LED viewing hole

• Hardware Included: Wall mounting hardware and T1 sensor included

• Wide System Support: Compatible across multiple Quantum Series formats (wall, cassette, floor, ducted)

Maintenance

• Daily: Wipe down the grill and sink after use

• Weekly: Clean the refrigerator and ice maker

• Annually: Inspect all connections and perform detailed cleaning

Warranty

• Frame & Grill: 7 years

• Wine Cooler & Refrigerator: 3 years
